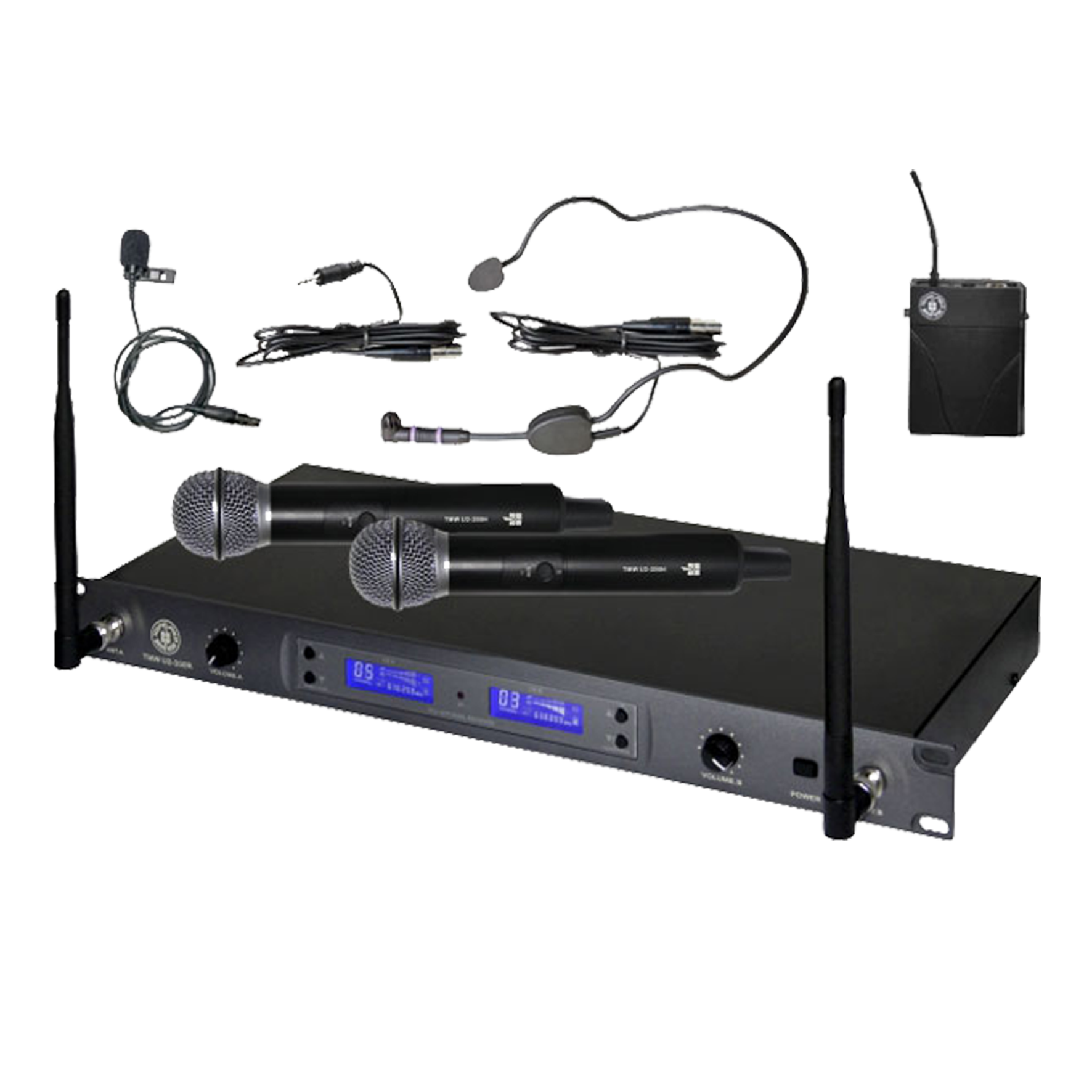

TMW U2.200M / LTHSGT

  • PLL UHF Synthesized System
  • 101 Frequencies per Channel & LCD Display!
  • Intelligent Recognition & ID Lock
TMW U2.200M / LTHSGT



  • Wisdom ID recognition technology, 200pcs Mic using separately. Digital mode mix: transmit, audio un-digital transfer disadvantage for delay. Different ID identification number for each frequency point, to prevent mutual interference between each frequency point
  • Infrared(IR)synchronization technique
  • 200 sets of intelligent recognition ID for interference prevention Transmitter battery: Two 1.5V, convenience Operation.

  • The balance and the non-balanced audio frequency transmitter output, connect each kind of acoustic equipment easily.
  • Transmitter red candle twinkle instruction, adapt the humannity visual characteristic.
  • LCD screen display transmitter battery and RF/AF signal peak display
  • Balanced and unbalanced audio frequency transmitter output

Specification

Channel
Dual Channel, up to 99 frequency presets for each frequency bands
Receiver Type
PLL UHF SYNTHESIZED
Frequency Band
UHF
Frequency Response
50Hz - 15KHz (±3dB)
Frequency stability
±0.005%
Modulation Mode
FM (F3E)
T.H.D.
<1%
Dynamic
>100dB
Max Unbalanced Output
10dBu
Max Balanced Output
0dBu
S/N Ratio
>100dB
RF Sensitivity
-100dBm / 30mA
Power Supply
100-240V/50-60Hz_DC 15V / 500mA
Dimensions
45(W) x 200 (H) x 480 (L) mm
Weight
3.5kg (Approx.)

Carrier Frequency Band
UHF
Oscillation Mode
PLL UHF SYNTHESIZED
Modulation Mode
FM (F3E)
Frequency stability
±0.005%
RF Radiation (FCC)
10mW
Spurious Emissions
45dBm
T.H.D.
<1%
Frequency Response
50Hz - 15KHz (±3dB)
Current Drain
<150mA

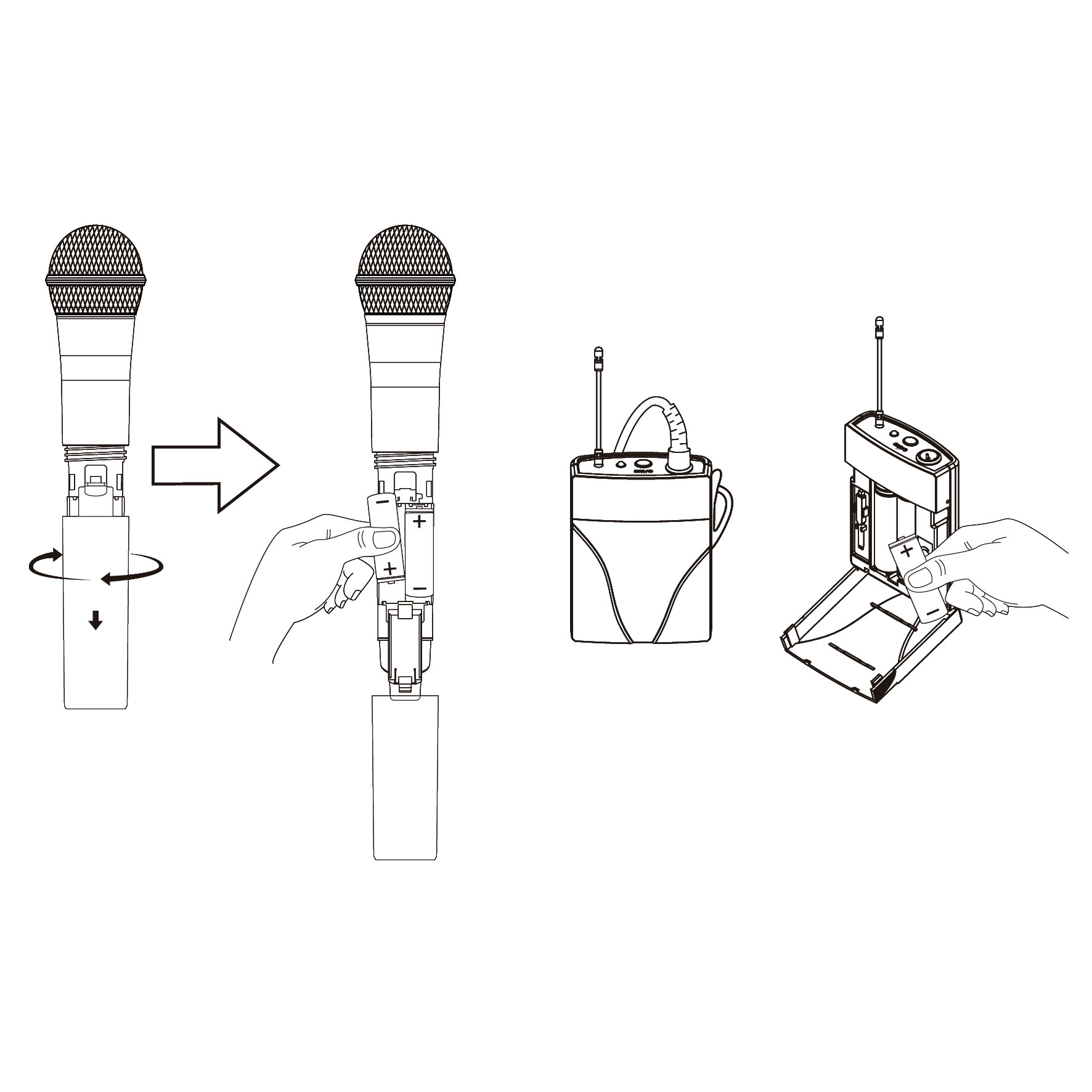

Battery
"AA" x 2
IOperation Temperature
-10°C to 50°C
Tone Frequency
35KHz
Dynamic
>100dB
Mic./Instrument Input
10dBu
Microphone Capsule
Beltpack : Condenser Dynamic
Handheld : Dynamic
4 Band Choice
Beltpack : 1. Ground / 2. Power Supply / 3. IElectric Instrument / 4. Dynamic or Condenser Mic
Handheld : NONE
Dimensions
Beltpack : 65 x 85 x 25mm
Handheld : 240 x 50mm
Weight
Beltpack : 0.082kg
Handheld : 0.270kg
