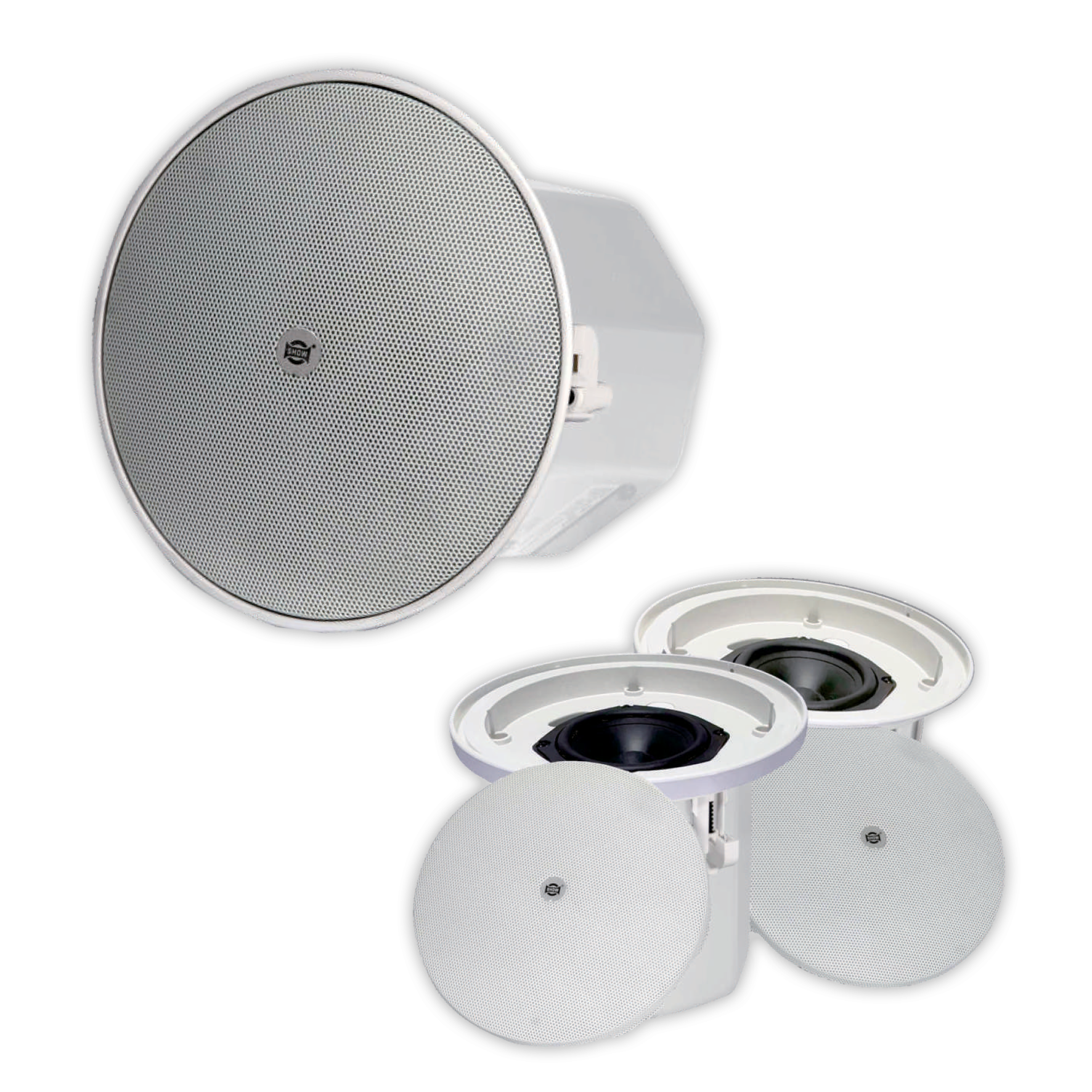

CSL-40 / CSL-40CV

The CSL-40 is a compact indoor ceiling loudspeaker, which contains a 4" fullrange woofer. It provides the high fidelity sound over an extremely wide coverage area, You can randomly select the output power 70V or 100V by the tap selector on the panel of CSL-40CV according to your requirement.
CSL-40 / CSL-40CV

Specification

Vented enclosure

4" Paper full runge woofer

40W (continuous pink noise

CSL-40
n/a
CSL-40CV
40W/20W/10W

CSL-40
n/a
CSL-40CV
40W/20W/10W/5W

88dB 1Watt/1 meter

CSL-40
8 ohms nominal
CSL-40CV
(100V):250Ω/500Ω/1kΩ
(70V):125Ω/250Ω/500Ω/1kΩ

70Hz - 15kHz(-10dB)
100Hz - 14kHz(-3dB)

4P Euro Connector with link 4PEuro Connector with link

120°C/85°C (-6dB)

Φ214*209mm

Φ185mm

4-point dog ear tabs

Steel Backcan, ABS baffle (UL94V0)

C-shaped support plate & Tile support rails

CSL-40
1.54kg (3.4lbs)
CSL-40CV
1.96kg (4.32lbs)
