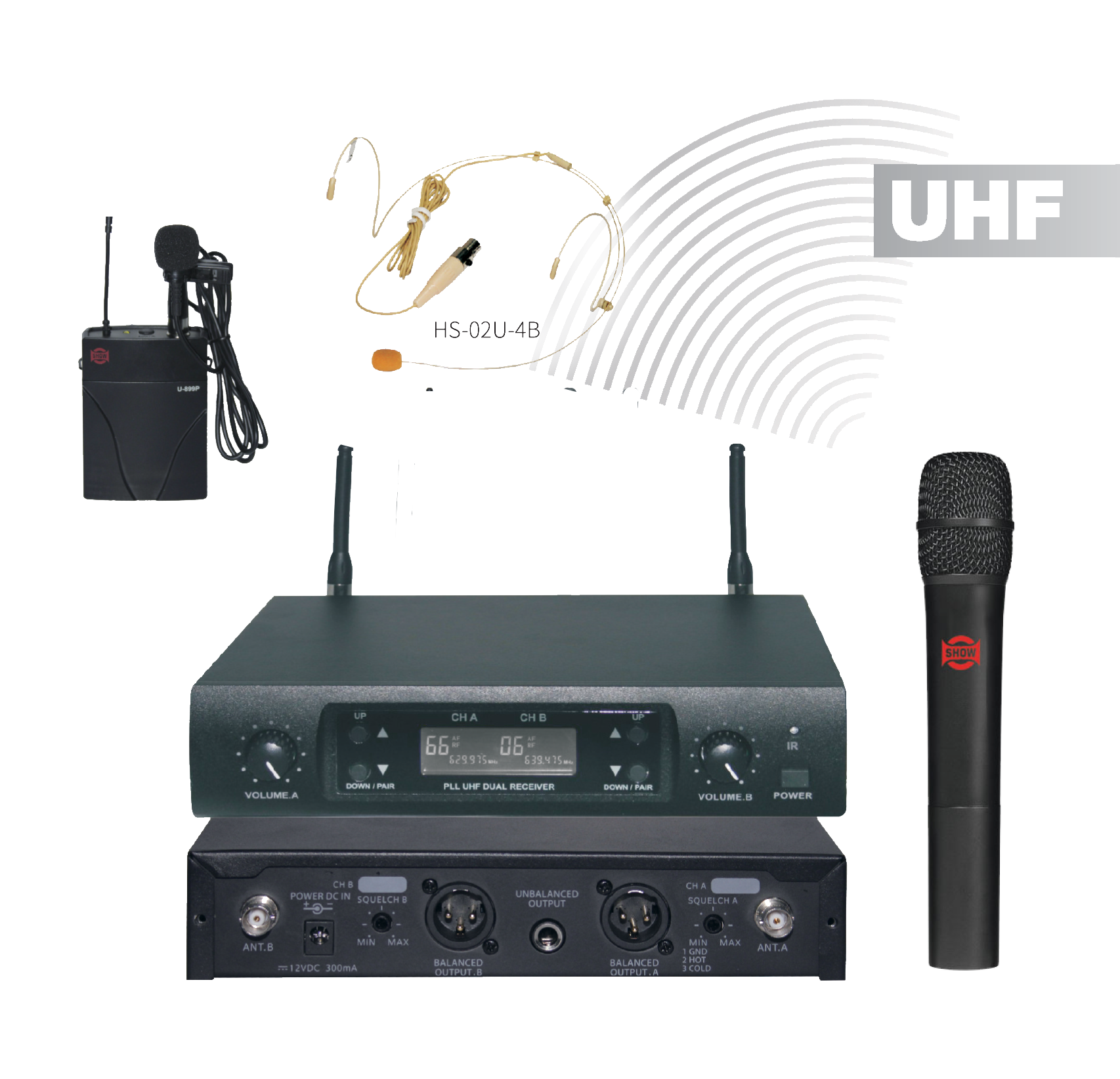

D-899R SERIES

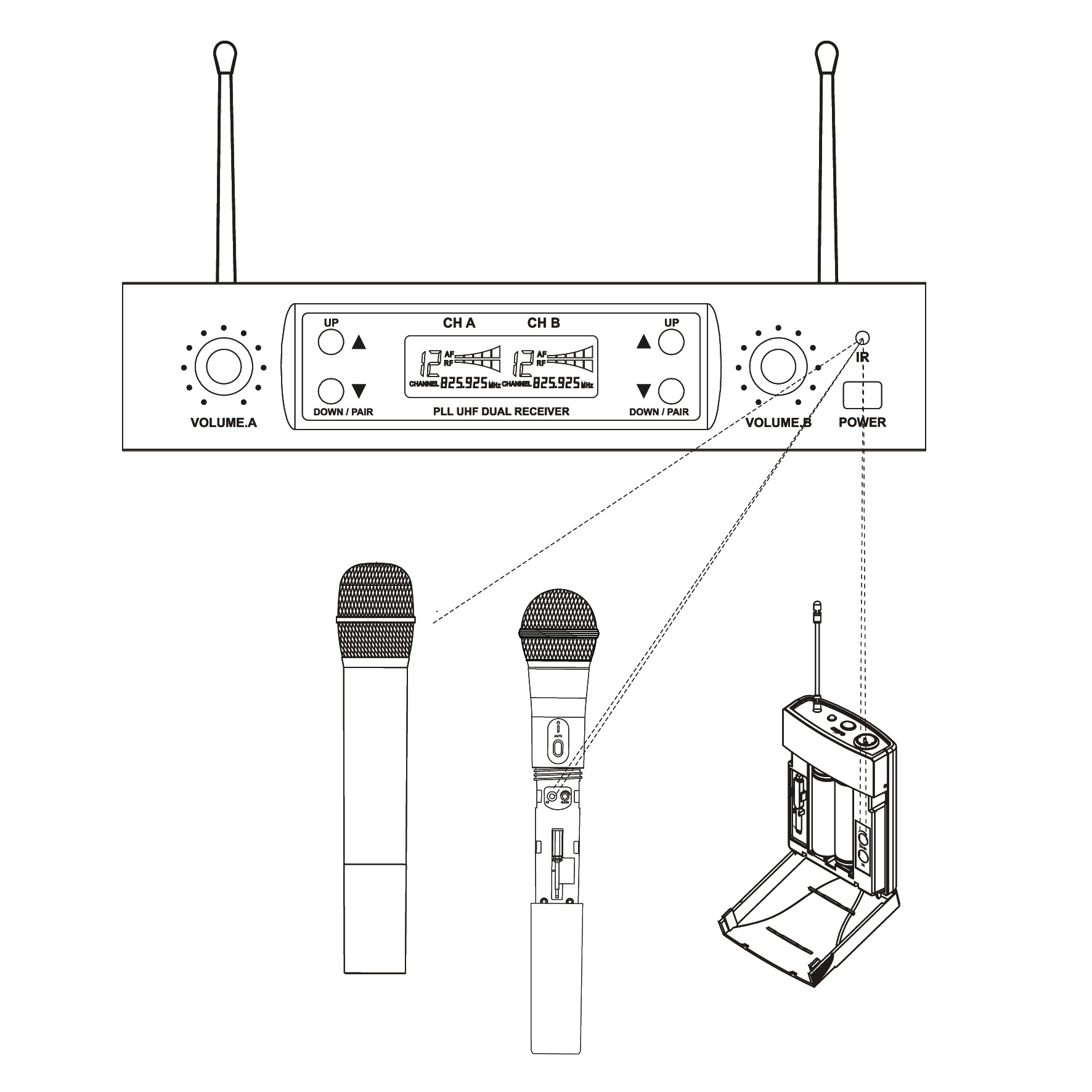

The dual-channel wireless transmission system can be used with waist-mounted and handheld transmitters. The receiver is a 1/2-inch structure and can be directly locked on the cabinet.

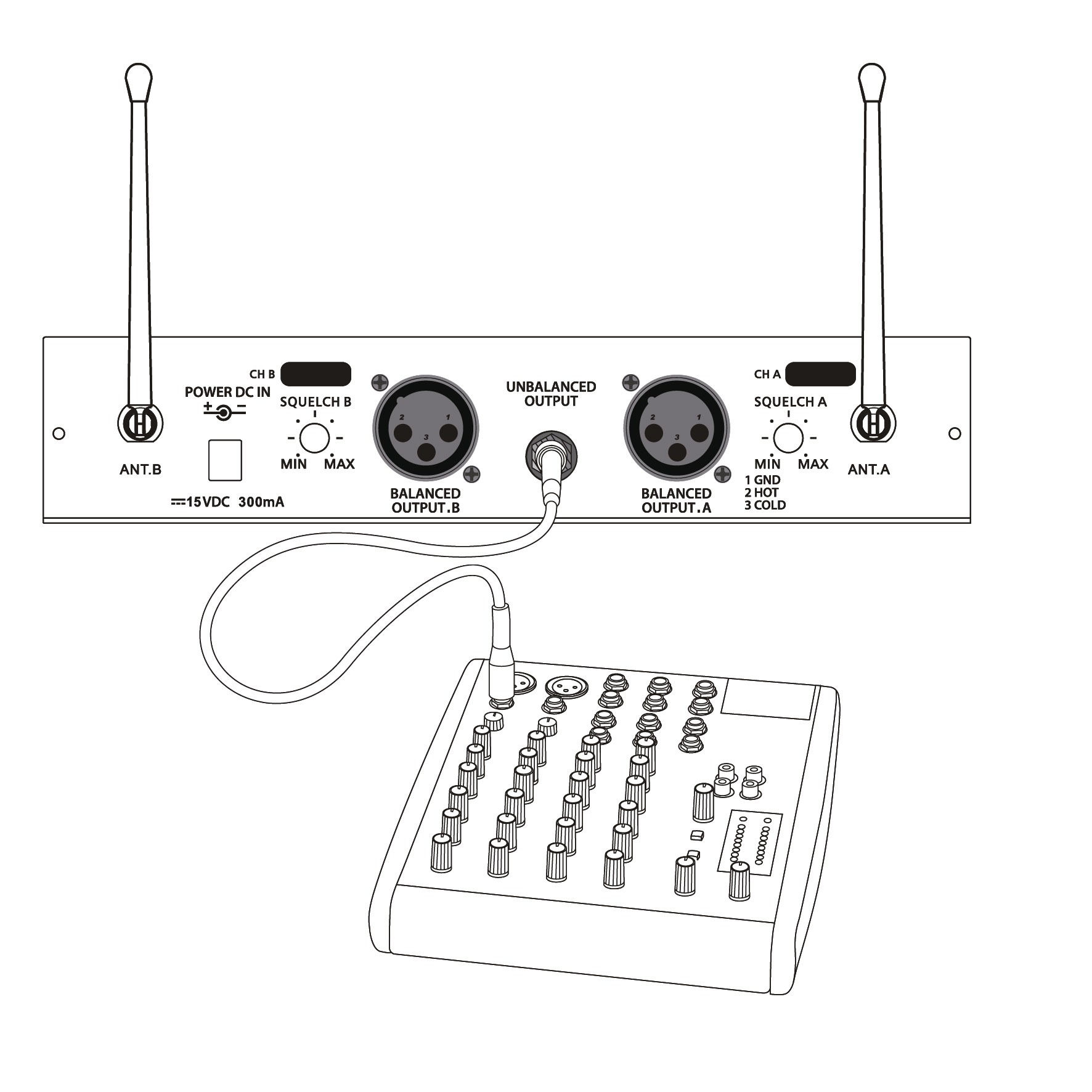

The single-channel wireless transmission system can be used with waist-mounted and handheld transmitters, and the receiver adopts a plastic structure. · Intelligent recognition ID for each individual frequencies can effectively prevent interference. D-899R receiver has both balanced and unbalanced output, which is convenient for any kind of acoustic equipment connection.

The D-899R system can auto scan and connect to avoid any interference frequency channel, and ensure all channels operate on clean sound transmission.

D-899R SERIES

Specification

Channel
ChannelDual-channels, up to 100 frequency presets for each frequency bands
Receiver type
Dual Receiver and PLL UHF SYNTHESIZED
Frequency band
UHF
Frequency response
50Hz-15KHz(±3dB)
Frequency stability
±0.005%
T.H.D
<1%
Dynamic
>100dB
Modulation mode
FM(F3E)
Max Unbalanced Output
10dBu
Max Balanced Output
10dBu
S/N Ratio
>100 dB
RF sensitivity
-100dbm/30db
Power supply
100-240V/50~60Hz_DC15V/500mA
Display mode
LCD display
Dimensions
45(W)×210(H)×210(L) mm
Weight
1.0 Kg(Approx.)

Oscillation Mode
PLL UHF synthesized
Frequency Band
UHF 470~960MHz
Frequency Response
50Hz~15KHz (±3dB)
Frequency Stability
±0.005%
THD
<0.8%
Modulation Mode
FM (F3E)
Rf Output Power
10mW
Dynamic Range
>100 dB
Tone Frequency
32.768KHz
Current Drain
<150mA
Max. Deviation
±35KHz deviation
Battery
"AA" type x 2pcs
Microphone Capsule
U-899P: Condenser capsule U-899H: Dynamic capsule
Dimension (WxDxH)
U-899P: 96 x 64 x 17 mm (3.78" x 2.52" x 0.67") U-899H: 277 x 36.5 mm (10.91" x 1.44")
Weight
U-899P: 0.82 kg (0.18 lbs) / U-899H: 0.2 kg (0.44 lbs)
