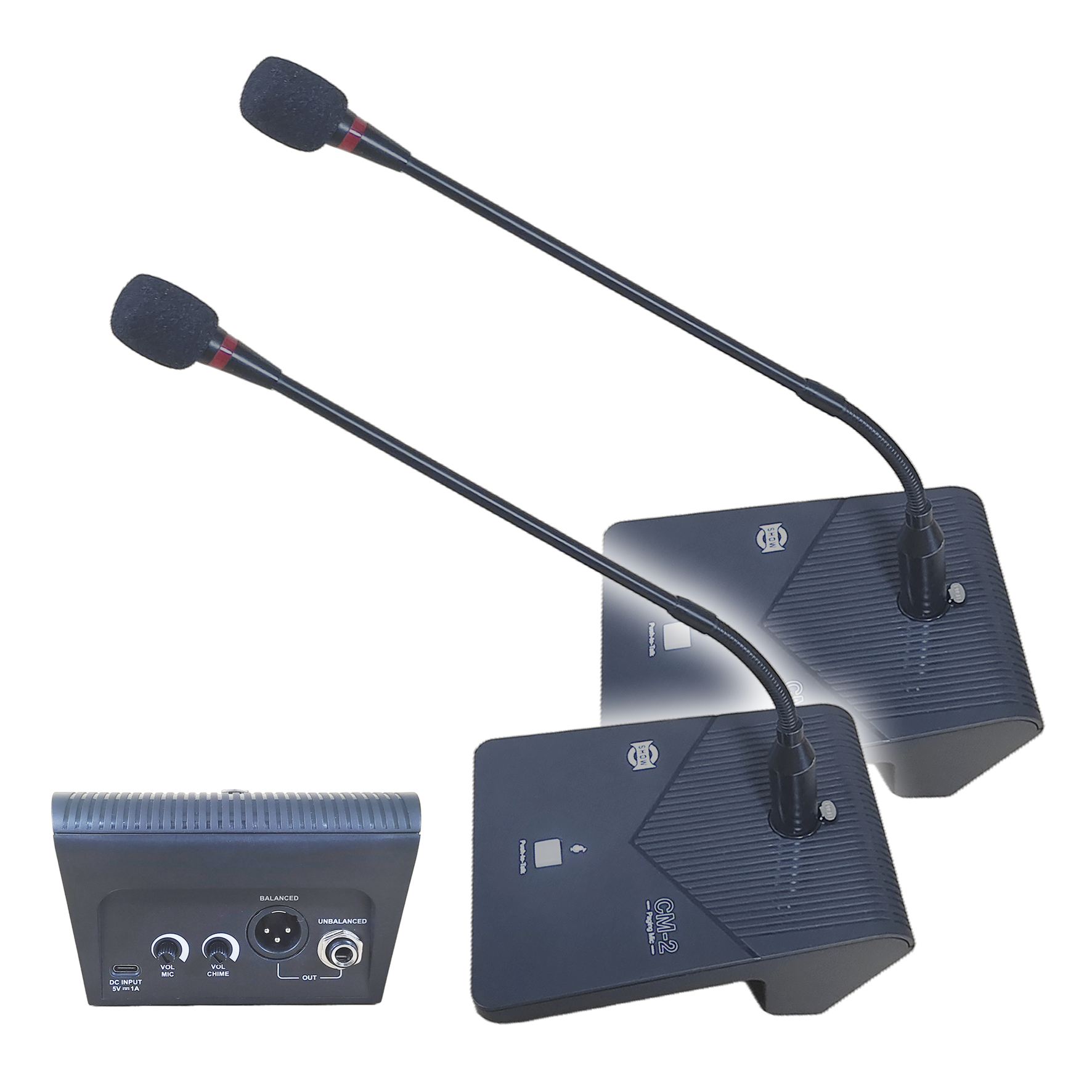

CM-2

  • Equipped with a high quality condenser microphone
  • 4-stage chime configured
  • Support balanced outputs or unbalanced outputs.
  • Enable to control the volume of CHIME or MIC separately
  • Equipped with the "push to talk" button to control the microphone easily.
  • An external TYPE-C port built to support 5V DC power and operate conveniently.
CM-2



   FRONT PANEL

  • Press to talk button: Used to turn on or off the broadcoasting function.
  • MIC Holder: Press the "press" shrapnel to disassemble the goose neck microphone.
  • Goose neck MIC: It is packed as a part of the unit. Once the microphone installed, User can use it to broadcast.


    REAR PANEL

  • DC INPUT: Powered by 5V DC power supply.
  • MIC VOL: Used to adjust volume of microphone
  • CHIME VOL: Used to adjust volume of prelude musical
  • UNBALANCED OUT: Unbalanced output socket where plug in the signal cable with mono Ø6.3 plug to transmit signals into amplifier.
  • BALANCED OUT: Balanced output socket where plug in the signal cable with XLR plug to transmit signals into amplifier.

Specification

Power Supply
AC100～240V TO DC5V/1A
Chime
440, 554, 659, 880Hz for stage musical
MIC
Condenser microphone cartridge
Unbalanced Output
5.5dBu
Balanced Output
11.5dBu
Frequency Response
20Hz-20KHz
Floor Noise
≦-98dBu
SNR
≧109dB
Input Sensitivity
-50dB
