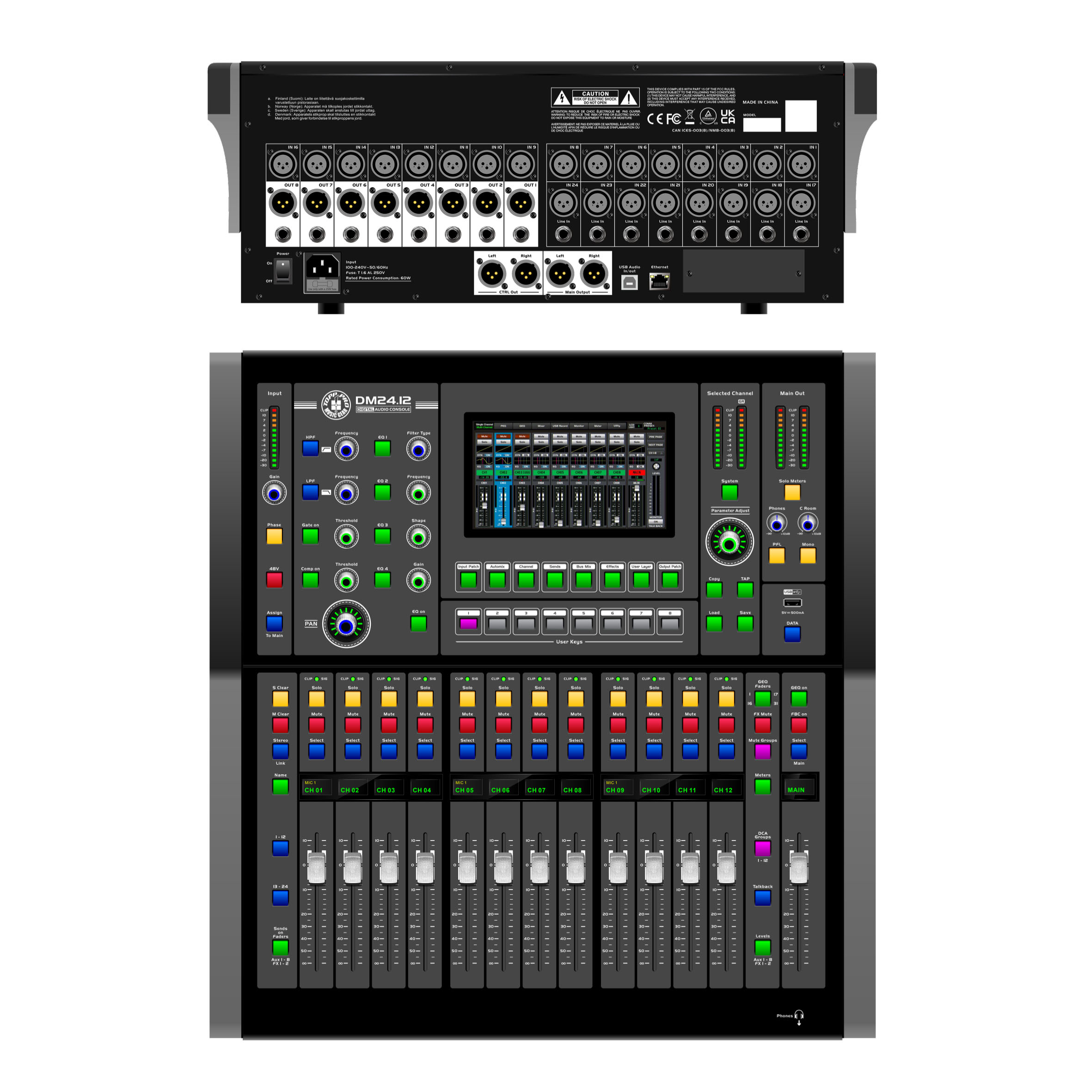

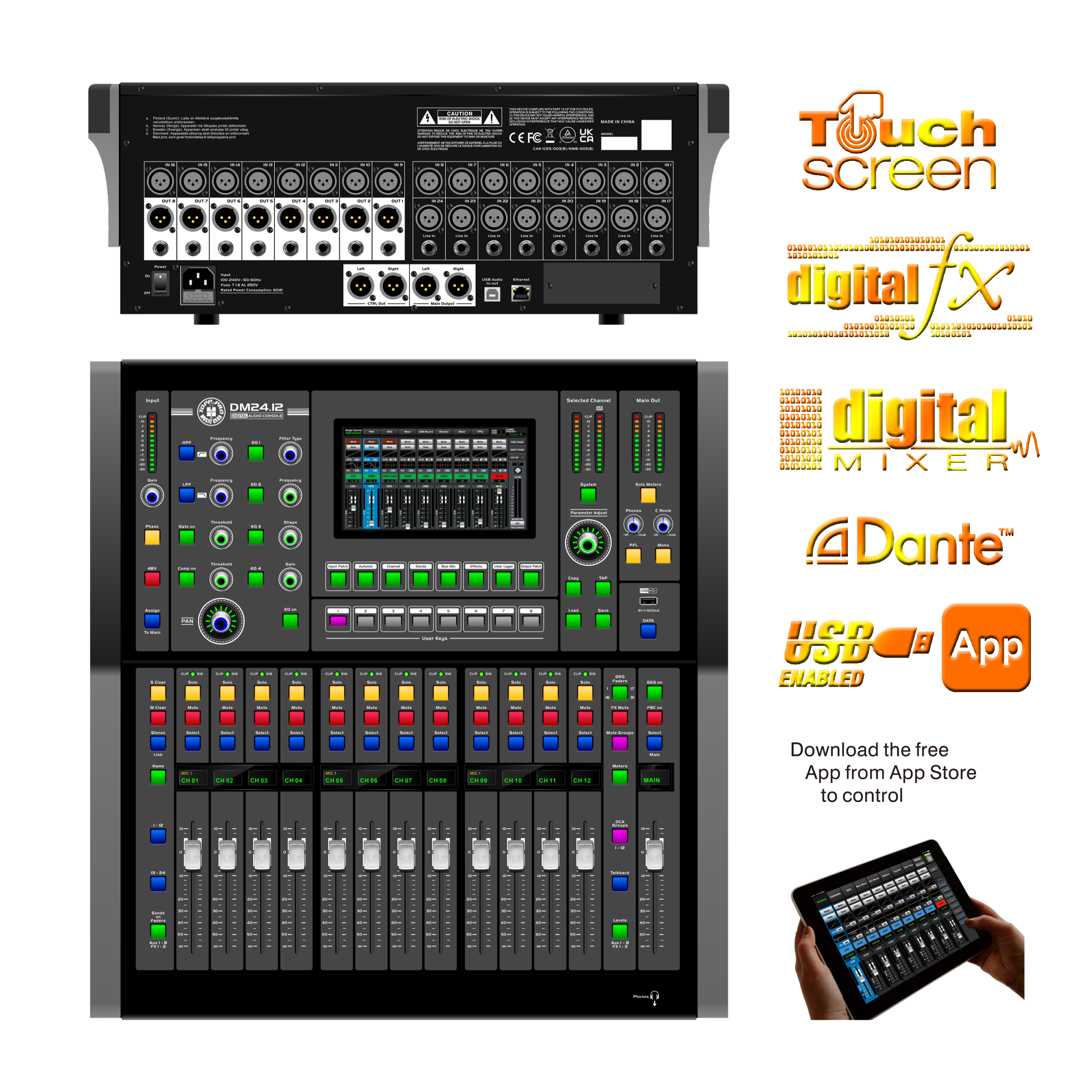

DM24.12

DM24.12 with 24 microphone preamplifiers, Digital 4 band full parametric EQ, Compressor, Noise Gate, Delay, Remote control, 13 electric stepper fader for level control, Large and small LCD display operation in real-time, Program, save, load, and copy functions and so on.

DM24.12



  • 24 XLR analog inputs and 8 TRS inputs with digital gain control
  • 32 digital inputs
  • 32 DSP processing channels
  • 10 BUS mix bus and 8 MATRIX mix bus
  • 12 DCA for fader / 8 mute groups
  • 13 electric stepper faders with 100mm travel
  • 2 stereo internal FX processors
  • 7 inch ultra-clear color LCD touch screen with resolution 1024*600

  • 9 two-color OLED channel information display screen
  • Noise gate, Compressor/Limiter, Phase, Delay, 4-band full parametric Equalizer
  • Auto mix, RTA, FBC, DUCK
  • 24-bit, 48K / 96K sampling rate
  • 32 bit floating point digital signal processing
  • USB key for presets save/load and firmware update
  • Ethernet port used to configure local area network for APP connection and control

Specification

Electronically balanced

22Hz-20KHz at 0dBu ±2dBu

<0.03% at 0dBu 1KHz

0dBu~50dBu

108dB

+20dBu ±0.5dBu

+48VDC

Frequency Response to Main Output
22Hz-20KHz at OdBu +2dBu
Distortion(THD&N)to Main Output
<0.03%at OdBu 1KHz
Gain
-20dBu~30dBu
Maximum Input Level
+20dBu±0.5dBu

Maximum Outputs Level
+20dBu±0.5dBu

Maximum Outputs Level
+20dBu±0.5dBu

Maximum Output Level
+20dBu±0.5dBu

Maximum Output Level
+15dBu±0.5dBu

Input to Output(at +0dBu 1KHz)
-88dBu
Adjacent Channels (at +0dBu 1KHz)
-87dBu

-90dBu

Threshold Range
-84dBu~±19dBu
Attack time
0mS~250mS
Relesae time
5mS~2S

Threshold Range
-83dBu±20dBu
Attack time
0mS~250mS
Relesae time
5ms-2S
Ratio
1:1to40:1,inf:1
Gain
0dBu-+12dB

Low (LowPass or LowShelf)
20Hz-20KHz±(15dbu±2dbu)
Low Mid
20Hz~20KHz±(15dbu±2dbu)
High Mid
20Hz~20KHz±(15dbu±2dbu)
High(HighPass or HighShelf)
20Hz-20KHz±(15dbu±2dbu)

ADC Dynamic Range
113dB
DAC Dynamic Range
113dB
Internal Processor
32-bit,floating point
ADC bit depth
32bit
DAC bit depth
24bit

7inch(1024*600)

0.96inch(128*64)

Microphone input
6.8KΩ
Line input
75KΩ
All output
120Ω
operating free-air temperature range
0-40℃
storage temperature range
-20℃-45℃
