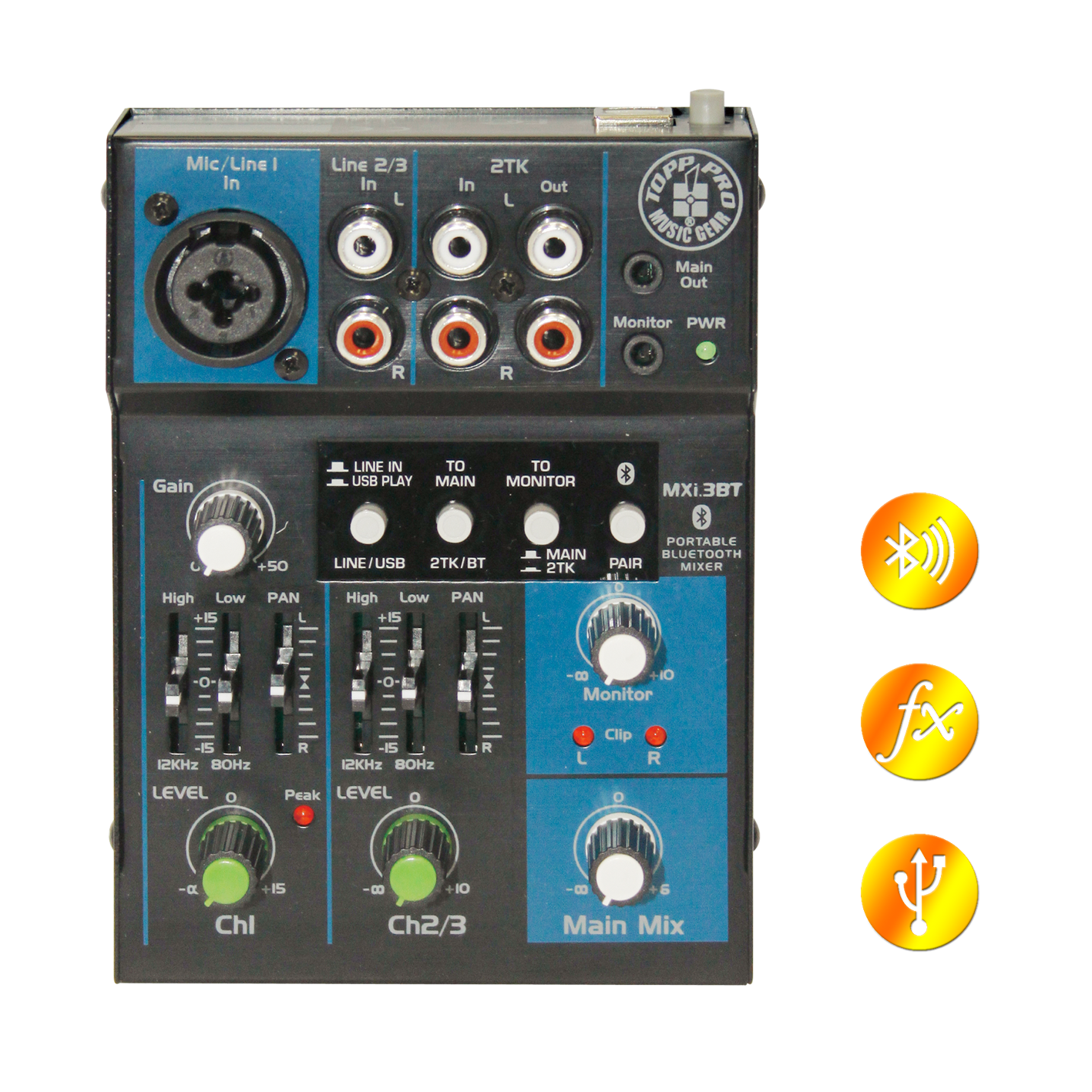

MXi.3BT

  • MXi.3BT is 3 channels compact portablemixer.
  • MX.3BT mixer features super mini size but equipped with powerful functions.
MXi.3BT



  • 1 mic input channels with XLR and balanced line input.
  • 1 stereo input channels with RCA jack.
  • Ultra-low noise discrete Mic Preamps with +20V Phantom Power.
  • 2-band EQ in mono and stereo channels.
  • 2RCA-Track inputs & 2RCA-Track outputs

  • Main Mix & Monitor outputs use 3.5mm stereo jack.
  • Built-in stereo USB/Audio interface
  • Either USB bus-powered or external adaptor
  • Bluetooth player function
  • This Type B USB port can be used to connect the computer via Type B to A connector. When it is in RECORD mode, it can connect with the MAIN MIX output; in the PLAYBACK mode, it can connect with the stereo channel 2/3

Specification

3 Channel USB MIXER

Mic Input to any Output (Gain @ 0 dB,Rated output level)
10 Hz to 40 kHz(0,-1dB) 10 Hz to 100 kHz(0,-3dB)

Mic Input to MAIN Output(Gain @ 0 dB,Rated output level @ 20 Hz-20 kHz bandwidth)
0.01%(A-weighted)

Input: Channel INPUT MIC(Rs=150 Ω,Gain @ Max. 20 Hz-20 kHz bandwidth)
-118dBu(A-weighted)

Mic in to main out (Gain @ Max.,@ 1 kHz)
70dB

Mono Channel
MIC:0 to 50dB, LINE:-35 to +15dB
Stereo Channel
-------

Line in,1/4" TRS Main Out,1 kHz relative to 0 dBu, 22 Hz- 22 kHz Filter, Gain @ unity.
Main Mix knob/fader @-∞
-79dBu(A-weighted)
Channel Level knob/fader @-∞
-79dBu(A-weighted)

Main,monitor, tape output(all knob/fader @ 0 dBu,1 kHz)
0dBu

Main,monitor, tape output(all knob/fader @ 0 dBu,1 kHz,22 Hz- 22 kHz Filter,THD @ 1%)
+17dBu

Mono Channel MIC INPUT→ MAIN OUT(Φ3.5 jack stereo)
69dBu
Mono Channel MIC INPUT→Monitor(Φ3.5 jack stereo)
78dBu
Mono Channel MIC INPUT→ TAPE OUT(RCA)
69dBu
Mono Channel LINE INPUT→ MAIN OUT(Φ3.5 jack stereo)
53dBu
Stereo Channel LINE INPUT→MAIN OUT(Φ3.5 jack stereo)
16dBu
TAPE INPUT→ MAIN OUT(Φ3.5 jack stereo)
6dBu
TAPE INPUT→ Monitor(Φ3.5 jack stereo)
9dBu

MAIN OUT(all knob/fader @ 0 dBu, 22 Hz- 22 kHz Filter, Gain @ unity)
Main mix Noise Main Mix knob/fader@-∞, Channel Level knob/fader @-∞
-120dBu(A-weighted)
Main mix Noise Main Mix knob/fader@ 0dB, Channel Level knob/fader @-∞
-100dBu(A-weighted)
Main Mix knob/fader @ 0dB, Channel Level knob/fader @ 0dB
-98dBu(A-weighted)

Mono channels
High ±15 dB @12 kHz Low ±15 dB @80 Hz
Stereo channels
High ±15 dB @12 kHz Low ±15 dB @80 Hz

Channel1
+15dBu

Main Left and Right(1-segment)
Clip +15dBu

Microphone Input
2.6k Ohms
Line Input
10k Ohms
Tape Input
10k Ohms
Main Outputs
120 Ohms
Phones Outputs
120 Ohms
Tape Output
1K Ohms

USB Interface
USB 2.0 full speed compliant
ADC & DAC
16-Bit Delta-Sigma,44.1kHz Sampling Rates
Operating System
Windows 2000,XP or higher,Mac OS 9.0.4 or higher, 10.X or higher

2=HOT, Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced 1=GND 3=COLD),
+20V

USB Connection
DC5V,550mA
Adaptor
DC5V,550mA

2.5W

Dimension (L*W*H)
98 mm*136 mm*34 mm
Weight
0.48Kg (1.1 lbs)
