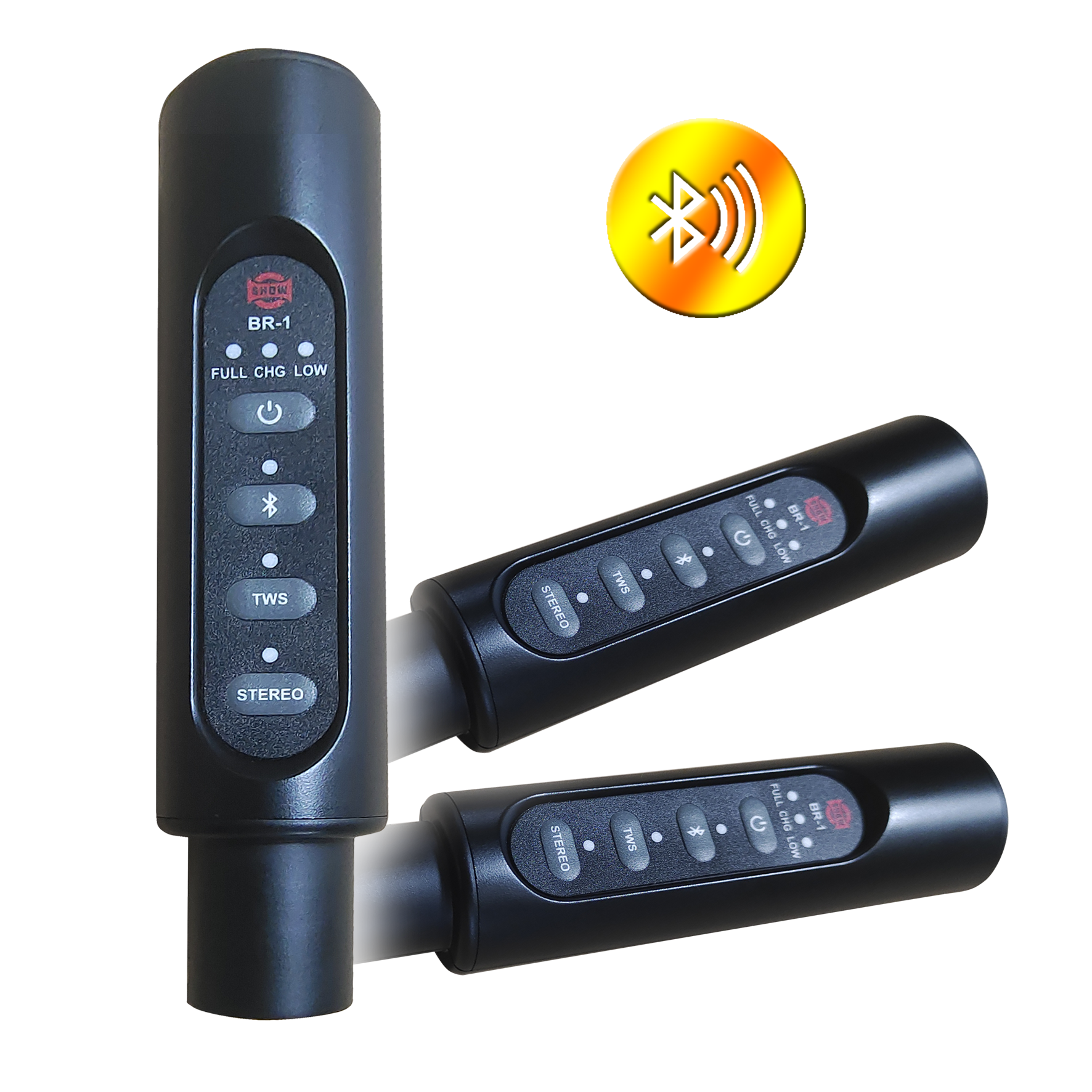

BR-1

The BR-1 Bluetooth audio receiver, which combines an ultra-compact design with a useful signal range, ensures a reliable wireless connection for smart phones, tablet PCs, and laptops with professional audio systems. The BR-1 supports Bluetooth 5.3, A2DP, and AVRCP profiles as well as SBC and AAC audio decodes, covers a frequency range from 20Hz to 20kHz using A2DP, and ensures a detailed sound thanks to DA conversion with 16-bit/44.1kHz quality. One BR-1 allows a stereo signal to be received, whereas a TWS model requires two BR-1 units to be linked.

BR-1



  • Dual XLR outputs for wired stereo playback
  • Link two together for cable-free stereo playback
  • TYPE C interface rechargeable battery (8+ hours)

  • Switch for On/Off, TWS-Link, Bluetooth Pair,
  • STEREO/MONO
  • LEDs for battery charge and operating status
  • Range: max 30 m (without obstacles)

Specification

XLR Male, Balanced

+6 dBu

95 dB

20 -20,000 Hz

More than 100 feet (30.5m)

2402 -2480MHz

0.112 lbs/0.051kg

0~40°C

More than 8 hours

Less than 2 hours

DC 5V/300 mA

In-build battery, 3.7V/500mAh 1.83Wh

Bluetooth 5.3, A2DP, AVRCP

6.02 dBm

27*27*116(mm)/1.06* 1.06*4.56(inch)

-20°C~45°C
