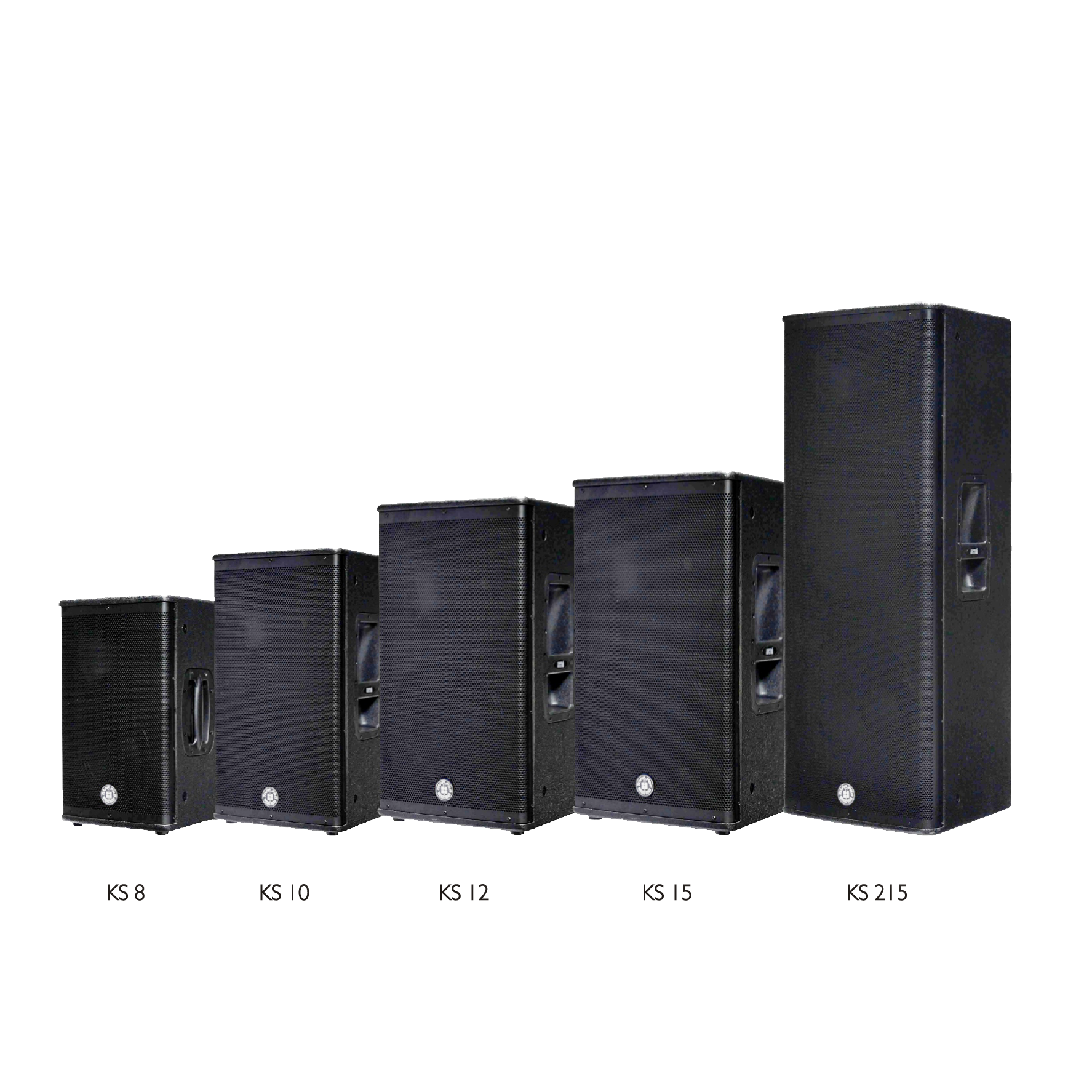

KS 8 / KS 10 / KS 12 / KS 15 / KS 215

This series of speakers is a passive professional stage speaker system. The cabinet is constructed of 15mm plywood, covered with a black dot-grain paint finish, and reinforced with internal ribs for a sturdy and heavy-duty design that minimizes the generation of stationary waves caused by cabinet resonance. Ergonomic handles on both sides ensure a clean and durable design. A high-strength iron mesh protects the speaker. The KS8/10/12/15 are two-way system power crossovers, and the KS215 is a three-way system power crossover. They utilize high-power, high-efficiency, and high-quality engineering design, resulting in a wide dynamic range, clean and crisp sound, and flexible control. The deep bass and powerful subwoofer meet the needs of various environments and are suitable for various large-scale concerts, dance halls, indoor and outdoor stages, etc.
KS 8 / KS 10 / KS 12 / KS 15 / KS 215



  • Professional Painted Plywood Cabinet
  • 2-Way Passive Vented Speaker
  • Impedance: 8 ohms for KS8/KS10/KS12/KS15,
    Impedance: 4 ohms for KS215
  • 1"EXIT, 1.75" Voice Coil Compression Driver
  • Electronic Dynamic Protection
  • Horn Coverage: 90°H x 60°V

  • Connectors: 2 x SPK4 Style
  • 400W/600W/800W/1000W/2000W
  • Plywood cabinet, resistant black paint, metal grille, rubber foot, two plastic handles
  • One metal standard pole-mount plus(for KS10/12/15)/12xM10 Flying points, KS8 10*m10 flying points

Specification

KS8
8" 2-Way Passive Loudspeaker
KS10
10" 2-Way Passive Loudspeaker
KS12
12" 2-Way Passive Loudspeaker
KS15
15" 2-Way Passive Loudspeaker
KS215
15" 3-Way Passive Loudspeaker

KS8
200W Continuous , 400W Program
KS10
300W Continuous , 600W Program
KS12
400W Continuous , 800W Program
KS15
500W Continuous , 1000W Program
KS215
1000W Continuous , 2000W Program

KS8
121dB Max.
KS10
123dB Max.
KS12
128dB Max.
KS15
130dB Max.
KS215
133dB Max.

KS8
65Hz-20kHz (-6dB)
KS10
60Hz-20kHz (-6dB)
KS12
50Hz-20kHz (-6dB)
KS15
48Hz-20kHz (-6dB)
KS215
45Hz-20kHz (-6dB)

KS8/KS10/KS12/KS15
8 ohms
KS215
4 ohms

KS8
8" (207.5mm) Woofer, 2" (50.5mm) Voice Coil
KS10
10" (266mm) Woofer, 2.5" (65mm) Voice Coil
KS12
12" (318mm) Woofer, 3" (75mm) Voice Coil
KS15
15" (382mm) Woofer, 3" (75mm) Voice Coil
KS215
15" (382mm) Woofer, 3" (75mm) Voice Coil

1" (25mm)Exit Compression driver , 1.75" (44mm)Voice Coil

KS8
At 1.8kHz
KS10
At 3.0kHz
KS12
At 1.8kHz with 24dB/Oct
KS15
At 1.8kHz with 24dB/Oct
KS215
At 2.2kHz with 24dB/Oct

90° H x 60° V , nominal (@-6dB)

Electronic Dynamic Protection

2 x SPK4 Style

Plywood Cabinet, Resistant Black Paint,Metal Grille

KS8
One Metal Standard Pole-mout, 10 x M10 Flying Points
KS10
One Metal Standard Pole-mout, 12 x M10 Flying Points
KS12
New Metal Standard Pole-mout, 12 x M10 Flying Points
KS15
New Metal Standard Pole-mout, 12 x M10 Flying Points
KS215
One Metal Standard Pole-mout, 12 x M10 Flying Points

KS8
276.6 x 300 x 460mm (10.9" x 11.8" x 18.1")
KS10
332.6 x 325 x 583mm (13.1" x 12.8" x 23.0")
KS12
381 x 350 x 625mm (15" x 13.8" x 24.6")
KS15
431 x 386.7 x 700mm (16.97" x 15.22" x 27.56")
KS215
431*386.7*1100mm(16.97"*15.22"*43.3")

KS8
13.2 kg / 29.1 lbs
KS10
16.8 kg / 37 lbs
KS12
22.5 kg / 49.6lbs
KS15
25.63 kg / 56.5lbs
KS215
38.89kg / 85.7 lbs
