X3

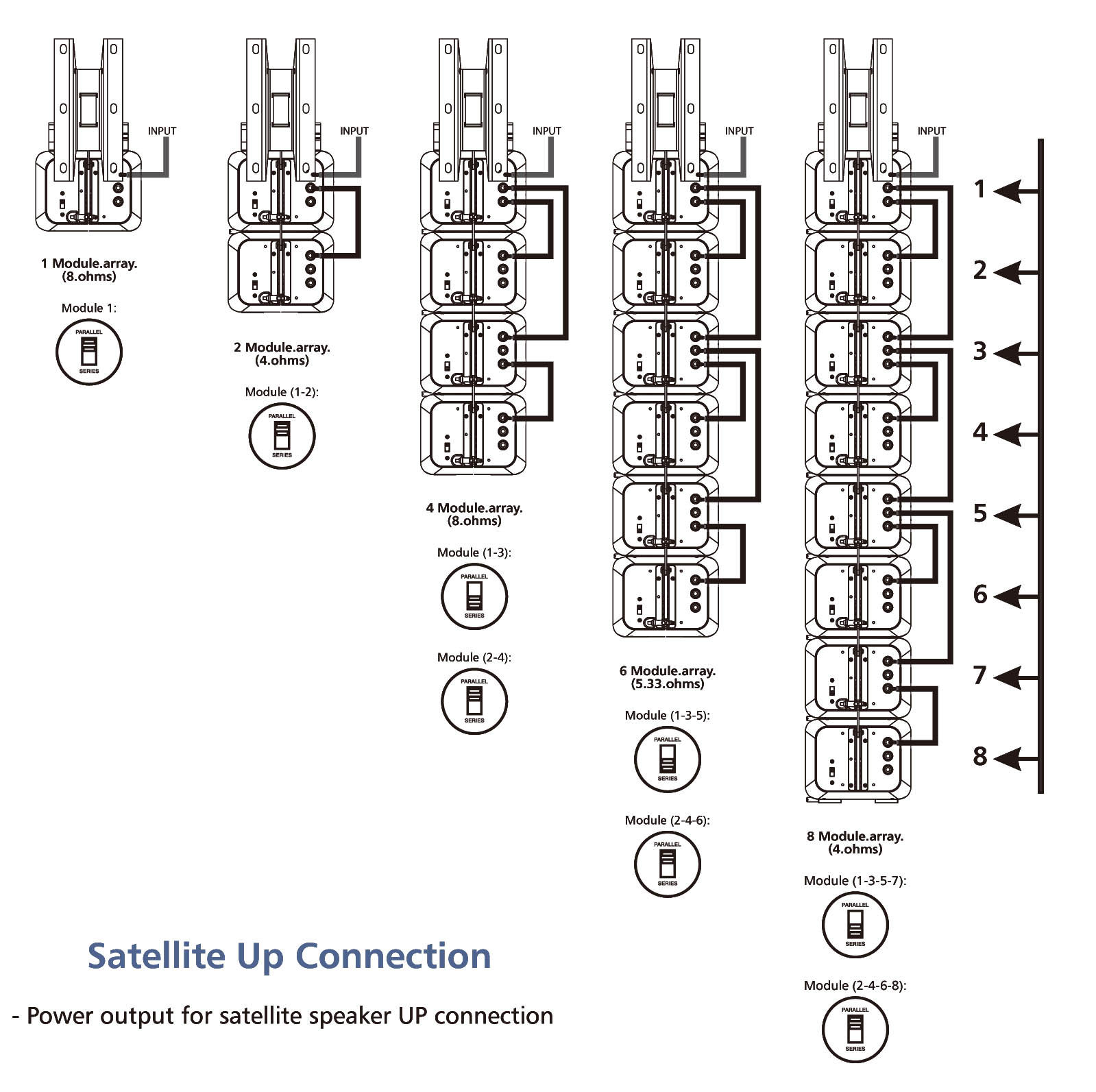

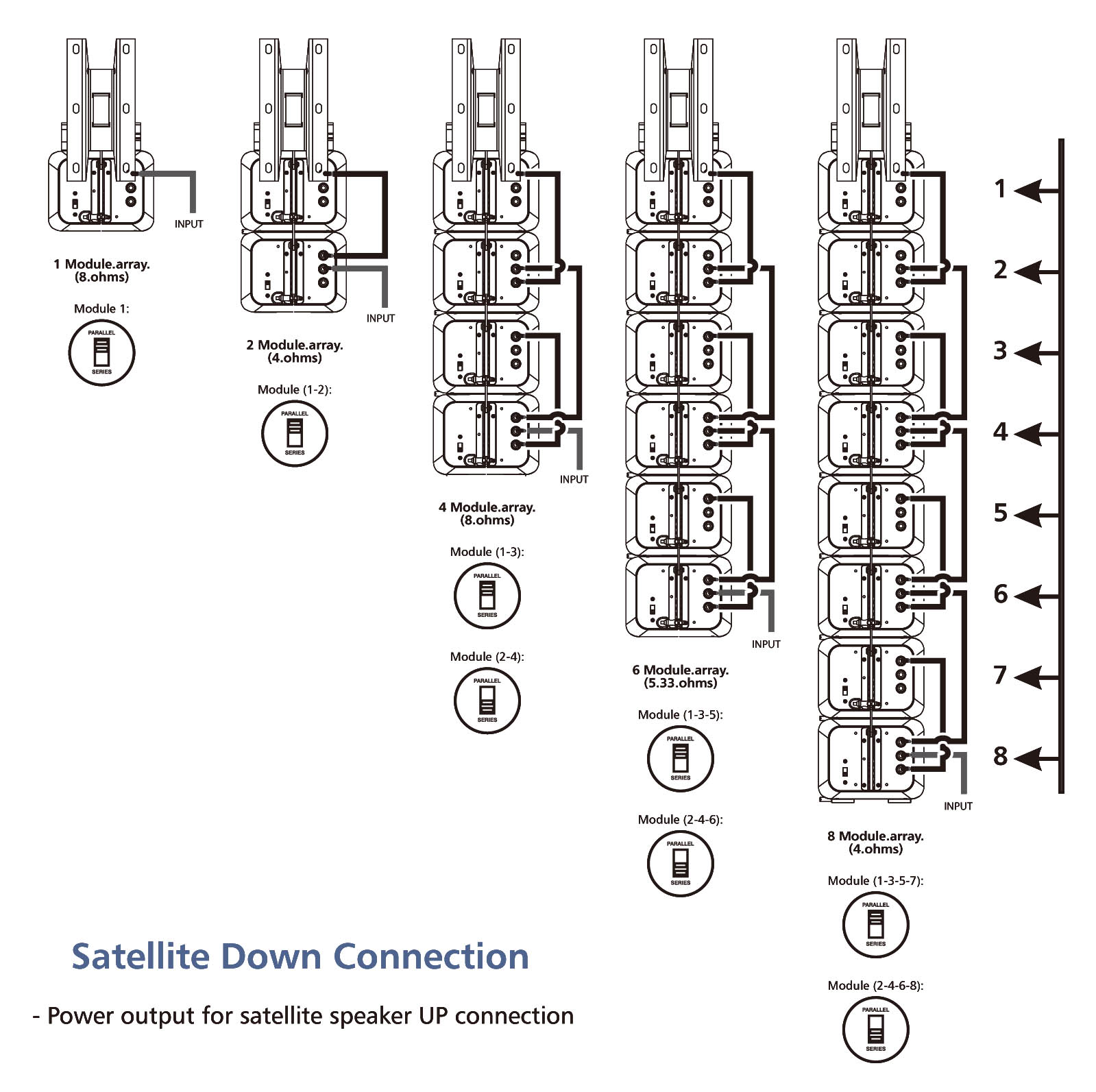

  • Turn the slide switch on the back of the case to the "series-parallel" position. The product can be connected in series or parallel to match the configured amplifier according to different user needs.

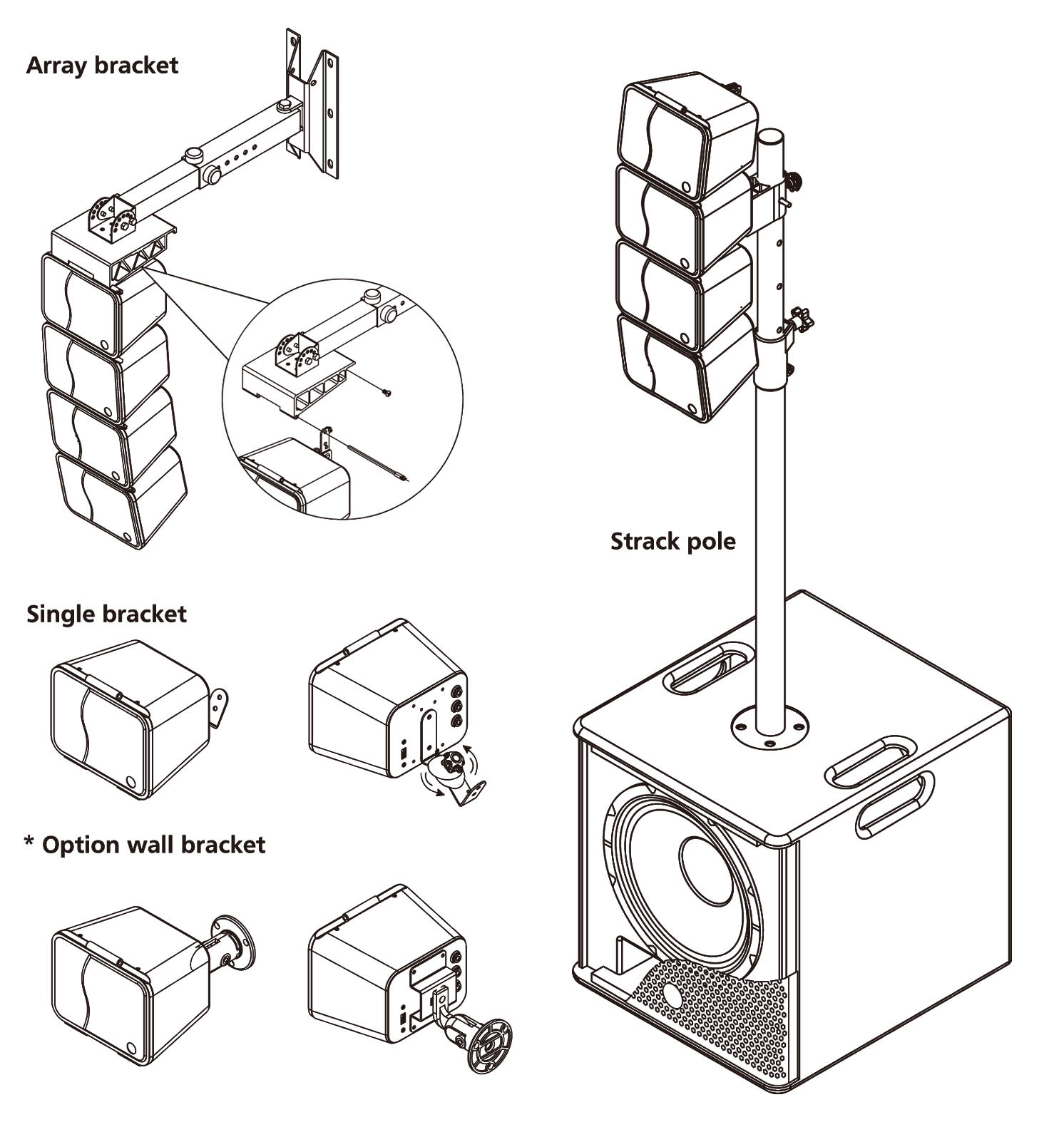

  • Versatile mounting options Compared to many other speaker designs, the satellite Series is remarkably easy to install in several ways. It can be hung easily with chains, strong wires and cables using the accessory brackets. There are also options for hanging with a pre-install rame by itself or configured with a subwoofer. There are also other options including ceiling and wall brackets as well as an adapter for use with a dedicated stand.
  • The bracket support wall and leiling mounting with most 8 modules . The direction and angle can be adjusted from any side.
X3
  • The new TOPPPRO ARRAY SERIES cabinets have been designed to provide a cost effective high grade solution while maintainig high quality cabinet construction and optimum components.
  • The array series, can be used for all types of applications including, but not limited to, churches, conference centers and discos.
  • The woofer and neodymium driver combination provides excellent performance rivaling those cabinets costing much more.
  • There are also other options including ceiling and wall brackets as well as an adapter for use with a dedicated stand.

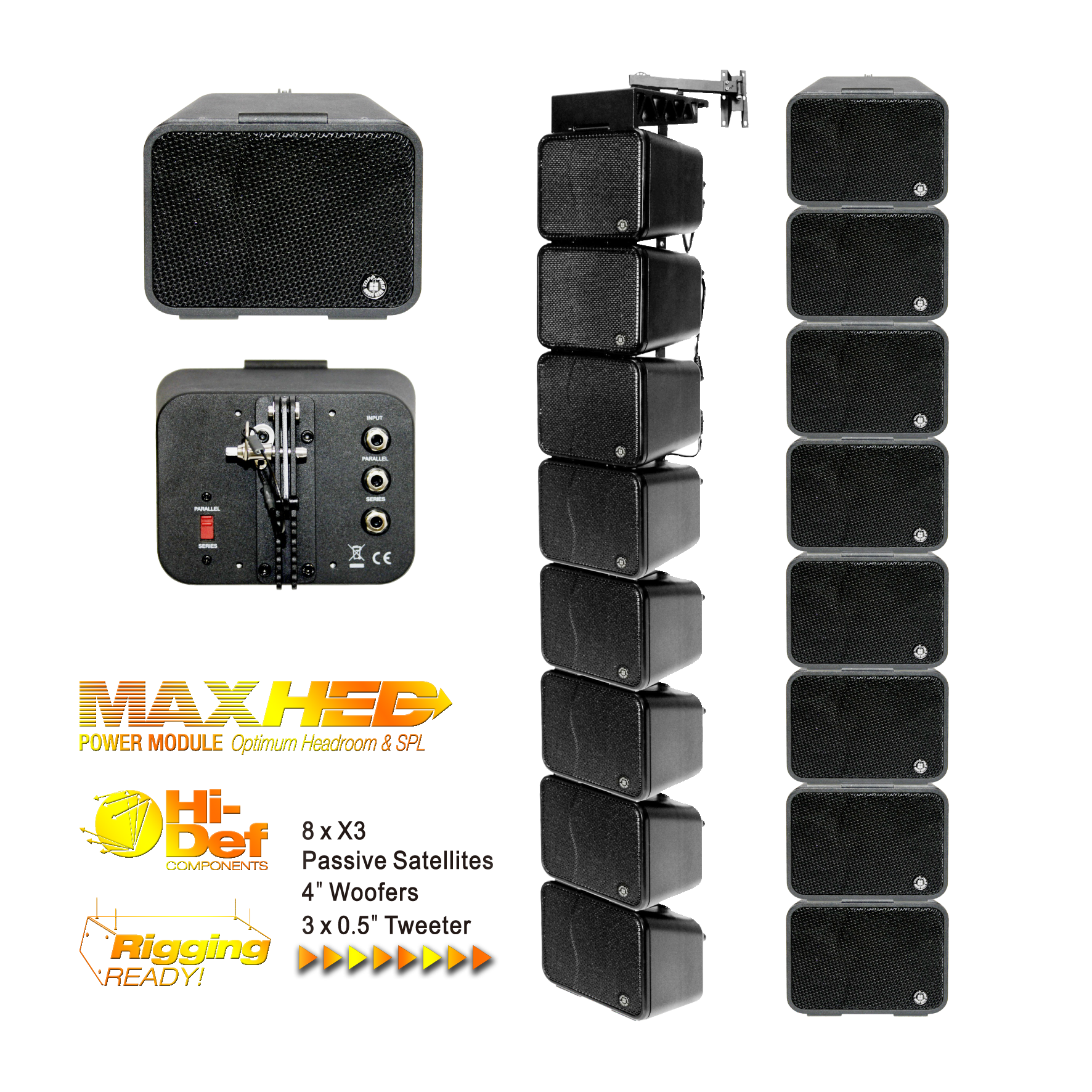

  • This speaker is a mini line array speaker system, with exquisite structure design, aluminum alloy cabinet, nebium iron boron high and low frequency unit, flat and wide frequency response, large radiation range, etc. The angle can be adjusted up and down, left and right according to customer needs. It contains 4"30W 8Ω, 1"V.C woofer, 3*0.52"PEI sound film 20W 12Ω tweeter; it can be matched with 12-inch SUB, and can also be used as a PA system configuration.
  • It has a wide range of applications, beautiful and compact design, and is suitable for teaching, indoor dance, gatherings, church music, etc.

Specification

X-3 (one module)

4" Two-way passive system

30W Continuous, 60W Program, 90W Peak

88dB Continuous / 91dB

100Hz-20 KHz (-10dB)

3.0kHz passive

4"Neodymium Woofer,1" Voice Coil8 ohms

3x0.5" soft dome tweeter / 16 ohms

110°Horizontal, 20° Vertical(one module)

103dB Max.(calculated)

8 ohms

Aluminum Alloy Cabinet

Resistant Black Paint

Parallel or Series φ6.3mm Socket / Selection Switch

Steel Stirrup Material,3Flying Points M6, threaded sockets (3 in top)

(W)141mm*(H)170mm*(D)162mm/
(W)(5.55"*(H)6.69"*(D)6.38")

1.46kg /3.21 lbs
