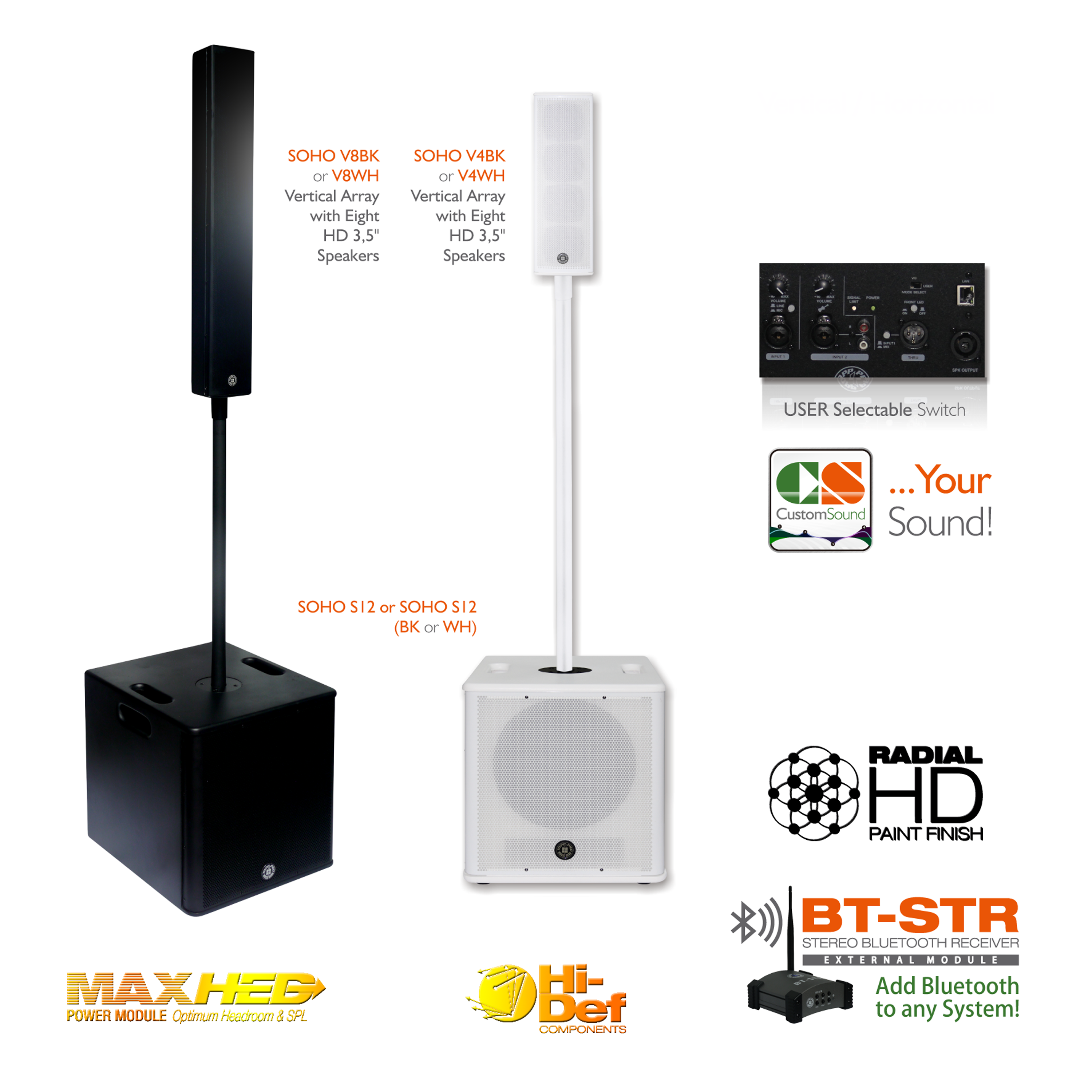

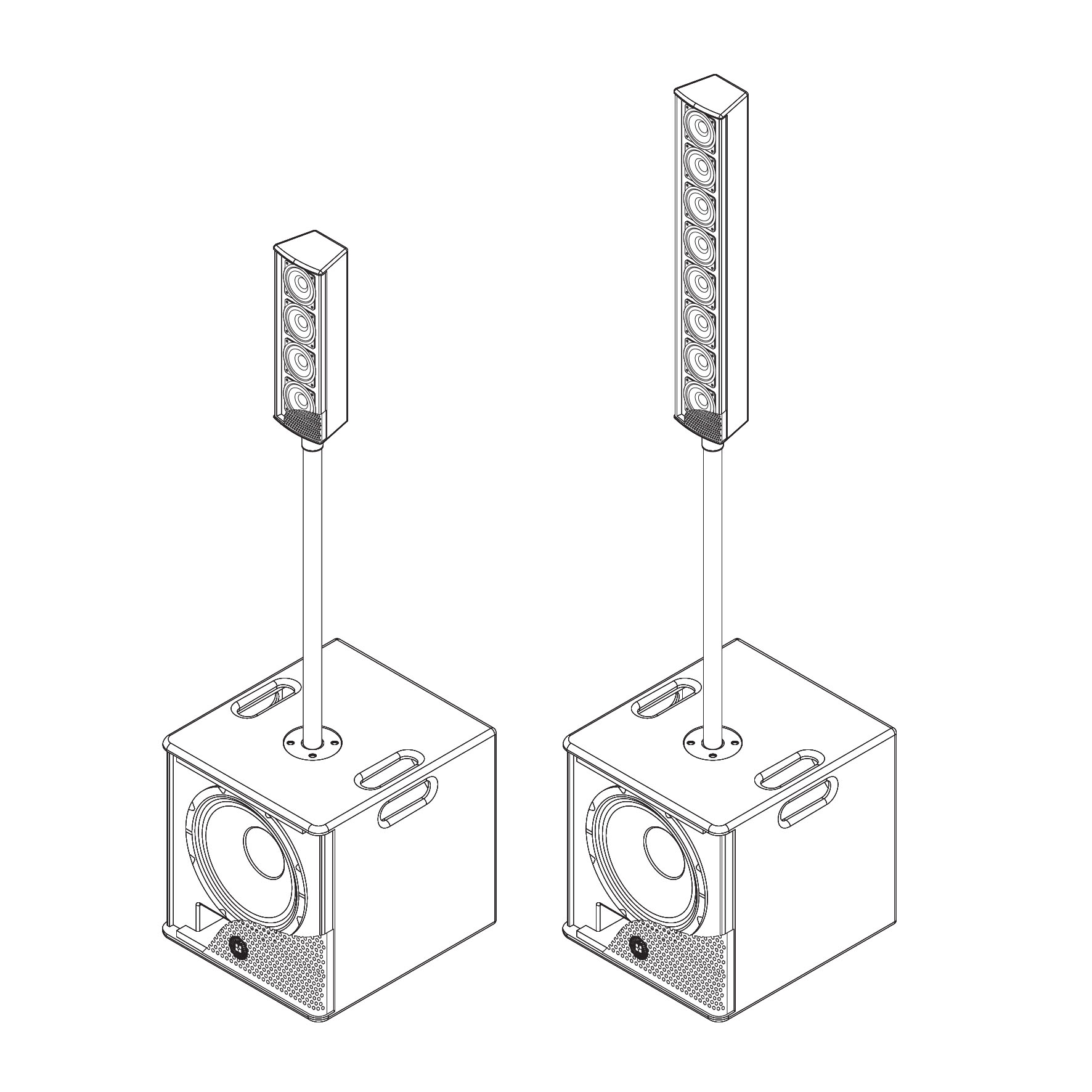

SOHO V8 PLUS & S15 SYSTEM

2800W SYSTEM PROGRAM POWER
Available in Black
130dB Max SPL!

SOHO S15 is a TOPPPRO professional active stage speaker with the same appearance as SOHO S10/S12. It adopts 15'' 2.5-core SUB WOOFER and bass reflex design. The box body is made of 12MM plywood, the surface is sprayed with black fine sand paint, the front is equipped with high-strength metal iron mesh, the bottom is equipped with rubber foot pads, and the wooden handles on both sides are convenient for moving and protecting the box.
AMP: CLASS-D 350W amplifier + DSP
Front pole function 2 Combo-XLR 1/4” In, 1 RCA In L&R, 1 XLR Thru, and 1 Speakon Out, three presets FLX, V8, FLAT/USER, FLX with FLX5 array, V8 and FLAT with SOHO V8 sound column, FLAT users can adjust it by themselves, users can turn the EQ switch to FLAT/USER to adjust the sound effect they want when using the IP Control function

T1-1.Frequency response: 40 Hz – 500 Hz( -6 dB )
Amplifier, subwoofer: 1x 350W / Class D @ 4 Ohms
Amplifier, satellite/ mid/ high unit: 1x 350W/Class D @ 4 Ohms
Cooling: Convection-Fan
2x Combo-XLR 1/4” In
1 x RCA In L&R
1 x XLR Thru
1 x Speakon Out
Volume Control
Switch for Input sens
Swtich for mode selector

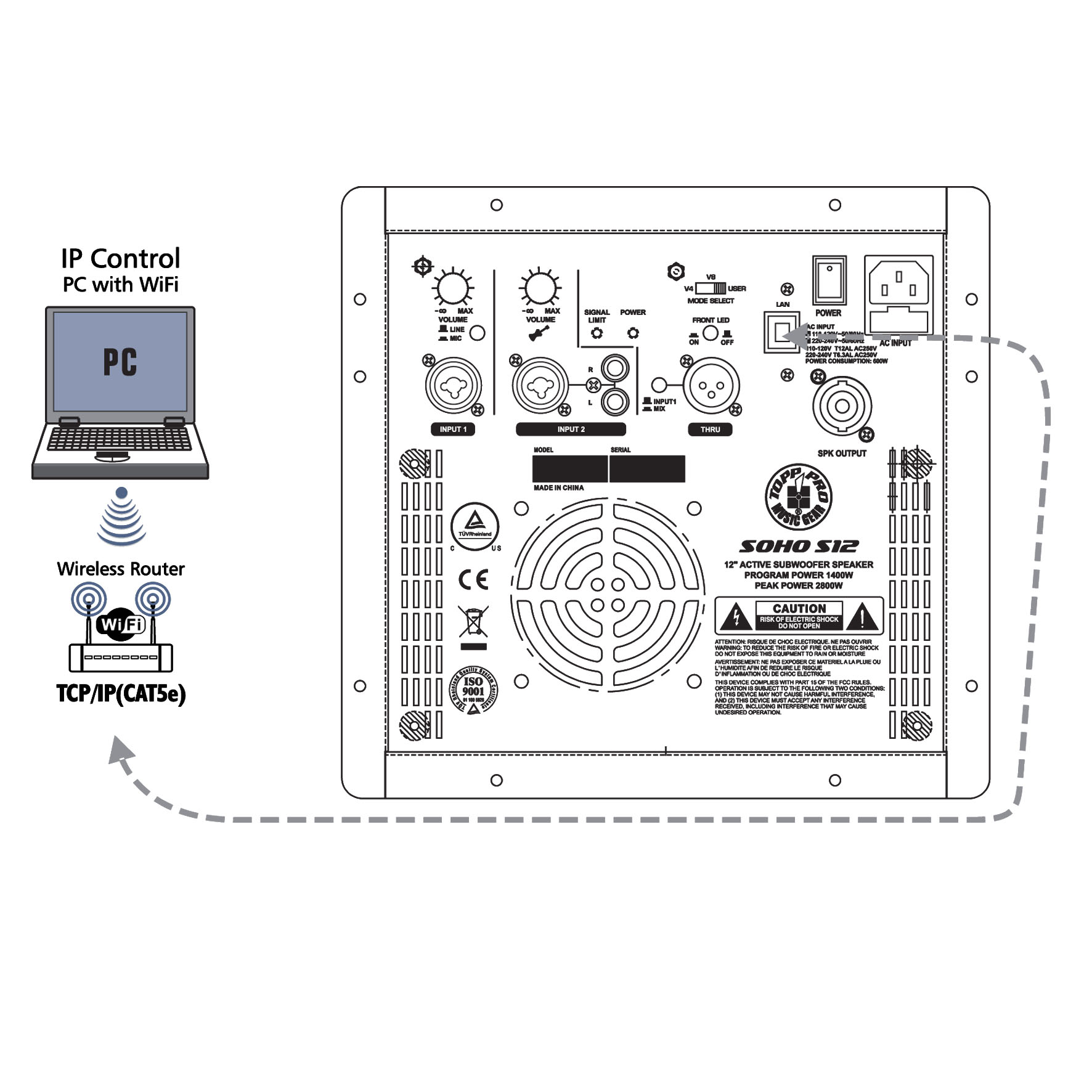

IP Control

Specification

Mid range woofers

SOHO V4 : 4 x 3.5",∅104mm-1" Voice Coin
SOHO V8 : 8 x 3.5",∅ 104mm-1" Voice Coin

Nominal power handling capacity

SOHO V4 : 120 W Continuous /240 W Program/480 W Peak
SOHO V8 : 240 W Continuous /480 W Program/960 W Peak

Frequency response- 6 dB

SOHO V4 : 160Hz-20kHz
SHOW V8 : 140Hz-20kHz

Axial sensitivity 1W @1m

SOHO V4 : 95 dB/122dB Max
SHOW V8 : 97 dB / 127dB Max

Nominal impedance

SOHO V4 : 8 ohms
SHOW V8 : 4 ohms

Input Connector

1xSPK

Coverage

100°H

Crossover frequency

SOHO V4 : 500Hz, 24 dB/ Oct. Actiive
SHOW V8 : 350Hz, 24 dB/ Oct. Actiive

Enclosure Construction

Body In extruded wood,Black/White paint

Mounting

one metal pole-mount,two M8 hanging-points

Dimensions (WxHxD)

SOHO V4 : 129.7x 400x 102.6mm (5.11"x 15.75"x 4.04")
SOHO V8 : 129.7x 760x 102.6mm (5.11"x 29.92"x 4.04")

SOHO V4 : 3.71.kg/8.18 lbs.
SHOW V8 : 6.95 kg/15.33 lbs.

Subwoofer

SOHO S10 : 1x10", ∅266mm-2.5" Voice Coin
SOHO S10 : 1x12", ∅320mm-2.5"Voice Coin
SOHO S15 : 1x15", ∅383mm-2.5" Voice Coin

Frequency response -6 dB

SOHO S10 : 50Hz-500Hz
SOHO S12 : 40Hz-500Hz
SOHO S15 : 40Hz-500Hz

Total amplifier power

SOHO S10 : 400 W Continuous /800 W Program/1600 W Peak Class-D@4ohms
SOHO S12 : 700 W Continuous /1400 W Program/2800 W Peak Class-D@4ohms
SOHO S15 : 700 W Continuous /1400 W Program/2800 W Peak Class-D@4ohms

Amplifier, subwoofer

SOHO S10 : 200 W Continuous /400 W Program/800 W Peak Class-D@4ohms
SOHO S12 : 350 W Continuous /700 W Program/1400 W Peak Class-D@4ohms
SOHO S15 : 350 W Continuous /700 W Program/1400 W Peak Class-D@4ohms

Amplifier, satellite/ mid! high unit

Axial sensitivity 1W@1m

SOHO S10 : 94dB / 126dB Max
SOHO S12 : 96dB/130dB Max
SOHO S15 : 96dB / 130dB Max

Electronic Protections

Thermal DC / Overload / Digital Compressor /Limit

Cooling

Temperature-controlled fan

Connections

Input: 2 Combo - XLR 1/4", 1 RCA in L&R Output: SPK Satellite / XLR Link

External Controls

Volume Control / Switch for Input sens. / Swtich for mode selector / Power ON with Green LED /Limiter with Red LED /Ground Lift / IP Control

Power Supply

115V / 230V Switchable

Enclosure Construction

Plywood cabinet, resistant black / white paint, metal grille with foam, rubber feet, handles

Mounting Dimensions (WxHx D)

SOHO S10 : 380x 400x 450 mm (14.96"x 15.75"x 17.72")
SOHO S12 : 430x450x480 mm (16.93"x 17.72"x 18.90")
SOHO S15 :561.5x 480x 520 mm (22.1"x 18.89"x20.47")

Net Weight

SOHO S10 :17.06kg/37.61 lbs
SOHO S12 : 20.51 kg/45.22 lbs
SOHO S15 : 28.3 kg/62.4 lbs
