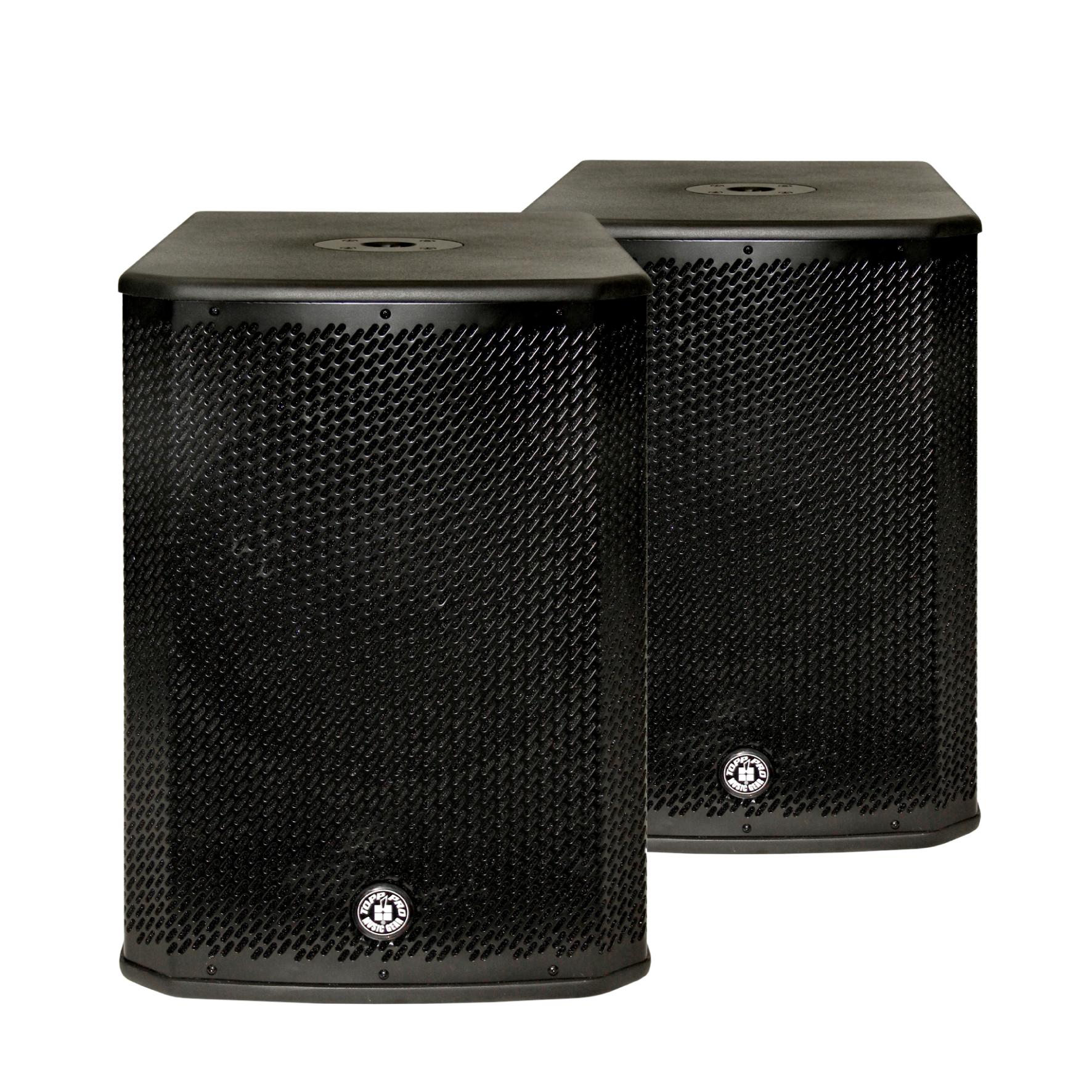

SOHO S12P

This speaker is a professional passive inverted speaker system. The cabinet is made of 15mm plywood, covered with black dot paint, with internal reinforcement ribs, solid and heavy, reducing the generation of standing waves caused by cabinet resonance. It contains a 12" 300W 4Ω, 2.53" V.C. woofer, deep bass, powerful dive, large dynamic range, clean and neat sound performance, free to retract and release, meeting the needs of different environments.
SOHO S12P
  • The box body is made of 15mm plywood with black dot paint, and the internal reinforcement ribs are strengthened. The box body is solid and heavy, which reduces the generation of standing waves caused by the resonance of the box body.
  • Max SPL: 125dB Peak;
  • Power outout: 300W Program, 600W Peak;
  • The bass is deep, powerful, with a wide dynamic range, the sound is clean and crisp, and it can be controlled freely;

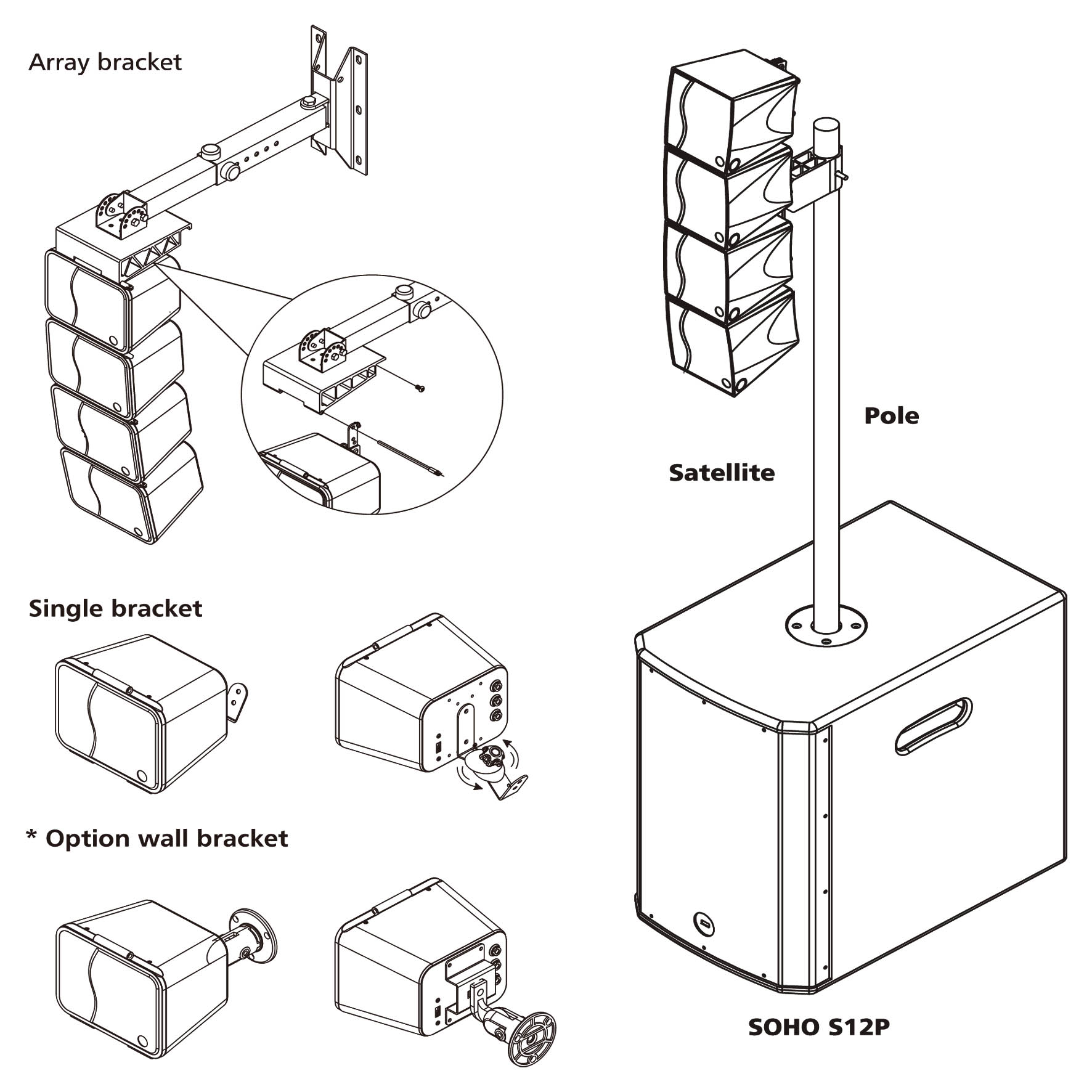

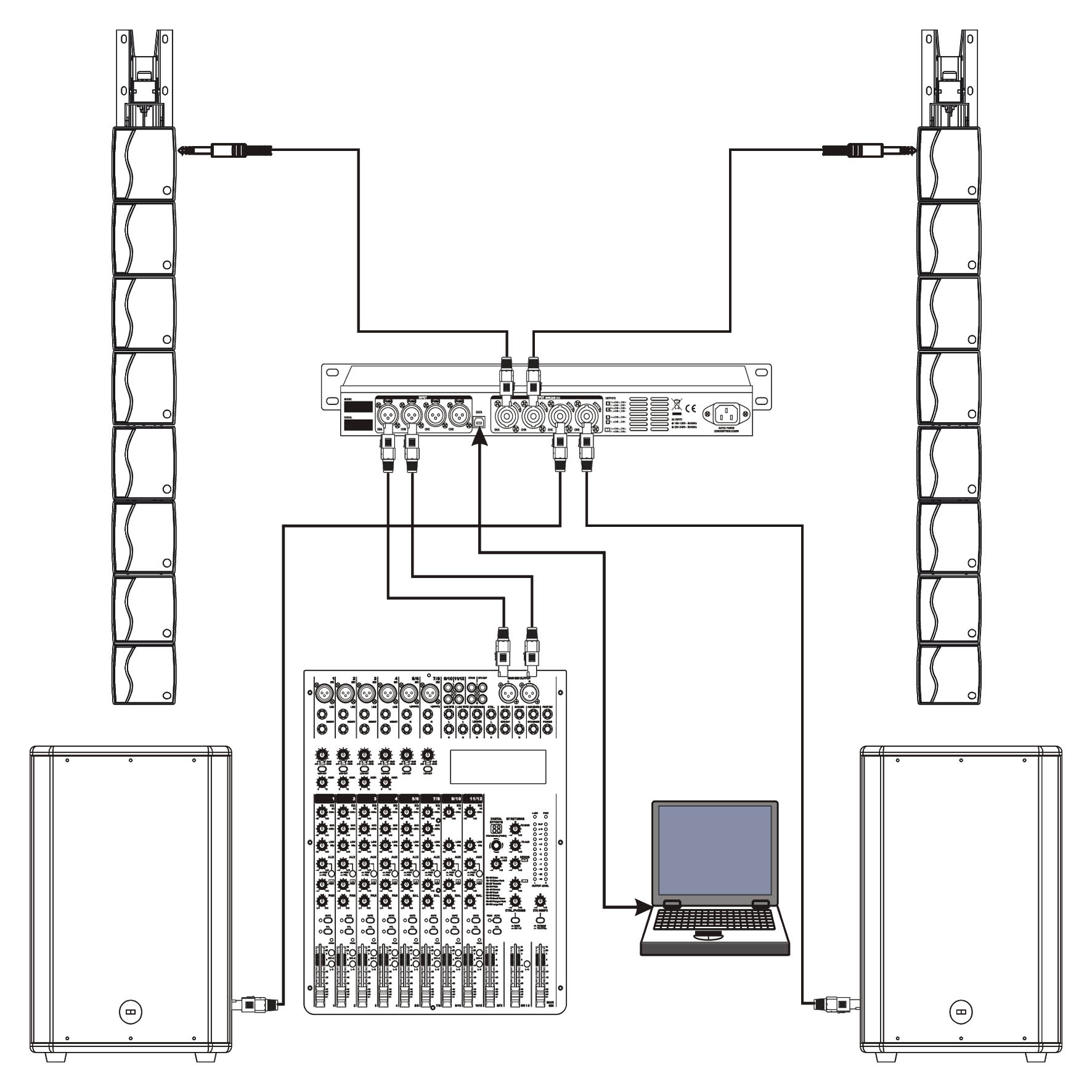

  • You can choose to configure it with mini line array X-3/Q-3 to meet the sound requirements of different environments such as western restaurants, hotels, small conference rooms, etc.

Specification

SOHO S12P

12" Passive Subwoofer Speaker

300W Program, 600W Peak

122dB Continuous / 125dB Peak

45Hz-2.8kHz (-10dB)

4 ohms

12"(320mm)Ferrite Woofer, 2.55"(64.5mm) Voice Coil

4 PIN Terminal Block and 2*NL-4 Speakon Parallel Socket

Plywood Cabinet, Resistant Black Paint, Metal Grille

One Metal Standard Pole-mount

(W)350mm*(H)500mm*(D)542mm
(W)13.78"*(H)19.69"*(D)21.33"

20.10kg / 44.31 lbs
