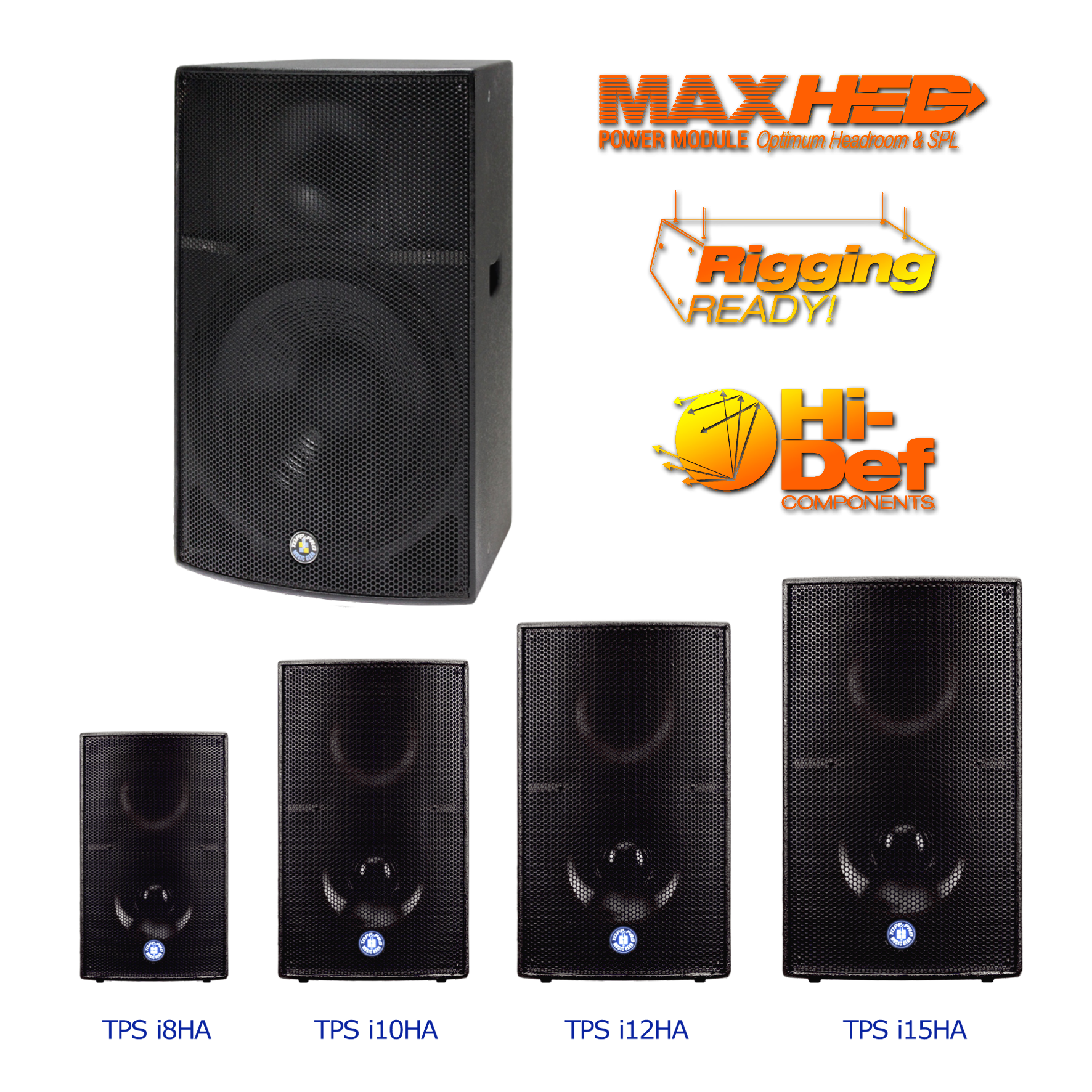

TPS i8HA / TPS i10HA / TPS i12HA / TPA i15HA

TPS i SERIES is a TOPP PRO active professional speaker system, which can be used in mobile performances, lecture halls, conference halls, disco halls, etc. The cabinet is all 15mm MDF black dot paint, equipped with rubber feet to prevent scratches on the cabinet during movement. There are handles on both sides for easy movement. TPS i SERIES uses a standard toroidal transformer amplifier for its modular power supply. It also features a LINK output, overheat protection/short circuit protection, a 110-120V or 220-240V selectable power switch, and other features.
TPS i8HA / TPS i10HA / TPS i12HA / TPA i15HA



  • TPS i8HA:350W Bi-AMP (300W-Low/50W-High)
  • TPS i10HA :390W Bi-AMP (340W-Low/50W-High)
  • TPS i12HA: 460W Bi-AMP (440W-Low/60W-High)
  • TPS i15HA: 500W Bi-AMP (440W-Low/60W-High)
  • 2-Way Active Vented Speaker Cabinet
  • Line in-Combo/Link-XLR
  • Volume Control
  • 115V 60Hz/230V 50Hz Switchable

Specification

Bi-Amp.

TPS i8HA
LOW: 150W/HIGH: 25W
TPS i10HA
LOW:170W/HIGH: 25W
TPS i12HA
LOW: 200W/HIGH: 30 W
TPS i15HA
LOW: 220W/HIGH: 30W

TPS i8HA
LOW: 300W/HIGH: 50W
TPS i10HA
LOW: 340W/HIGH: 50W
TPS i12HA
LOW: 400W/HIGH:60W
TPS i15HA
LOW:440W/HIGH:60W

TPS i8HA/TPS i10HA/TPS i12HA
LOW-input/-5dBu 100Hz, out load 4Q,THD<0.5%
HI-input/-8dBu 15kHz, out load 8Q, THD<0.5%
TPS i15HA
LOW-input/-3dBu 100Hz, out load 4Q, THD<0.5%
HI-input/-3dBu 15kHz,out load 8Q,THD<0.5% S/N Ratio

TPS i8HA/TPS i10HA/TPS i12HA
LOW:>80dBu/HI:>65dBu
TPS i15HA
LOW:>80dBu/HI: >70dBu

-5dBu ±1dBu

Line 15kΩ input

Power indicator-CLIP indicator

110-120V~-60H2/220-240V~50/60Hz

Volume- Master Switch/AC select

TPS i8HA
94dB /119.5 dB (Max.)
TPS i10HA
95dB /120dB (Max.)
TPS i12HA
95.6dB /122.2dB (Max.)
TPS i15HA
96.5dB /123.5dB (Max.)

TPS i8HA
68Hz-20kHz-6dB
TPS i10HA
55Hz-20kHz-6dB
TPS i12HA
50Hz-20kHz-6dB
TPS i15HA
50Hz-20kHz-6dB

TPS i8HA
8" φ203mm - 1.5" Voice Coil
TPS i10HA
10" φ254mm-2"Voice Coil Driver
TPS i12HA
12" φ305 mm-2" Voice Coil Driver
TPS i15HA
15" φ 381mm-2"Voice Coil Tweeter

1"Driver-1"Voice Coil

50°×50°

TPS i8HA
21.34“(542mm)x14.17”(360mm)x13.86”(352mm)
TPS i10HA
21.6“(550mm)x12.6”(320mm)x12.94”(328.8mm)
TPS i12HA
22.58”(573.5mm)x14.6”(370.8mm)x14.17(360mm)
TPS i15HA
25.79”(655mm)x16.62”(422mm)×15.75”(400mm)
