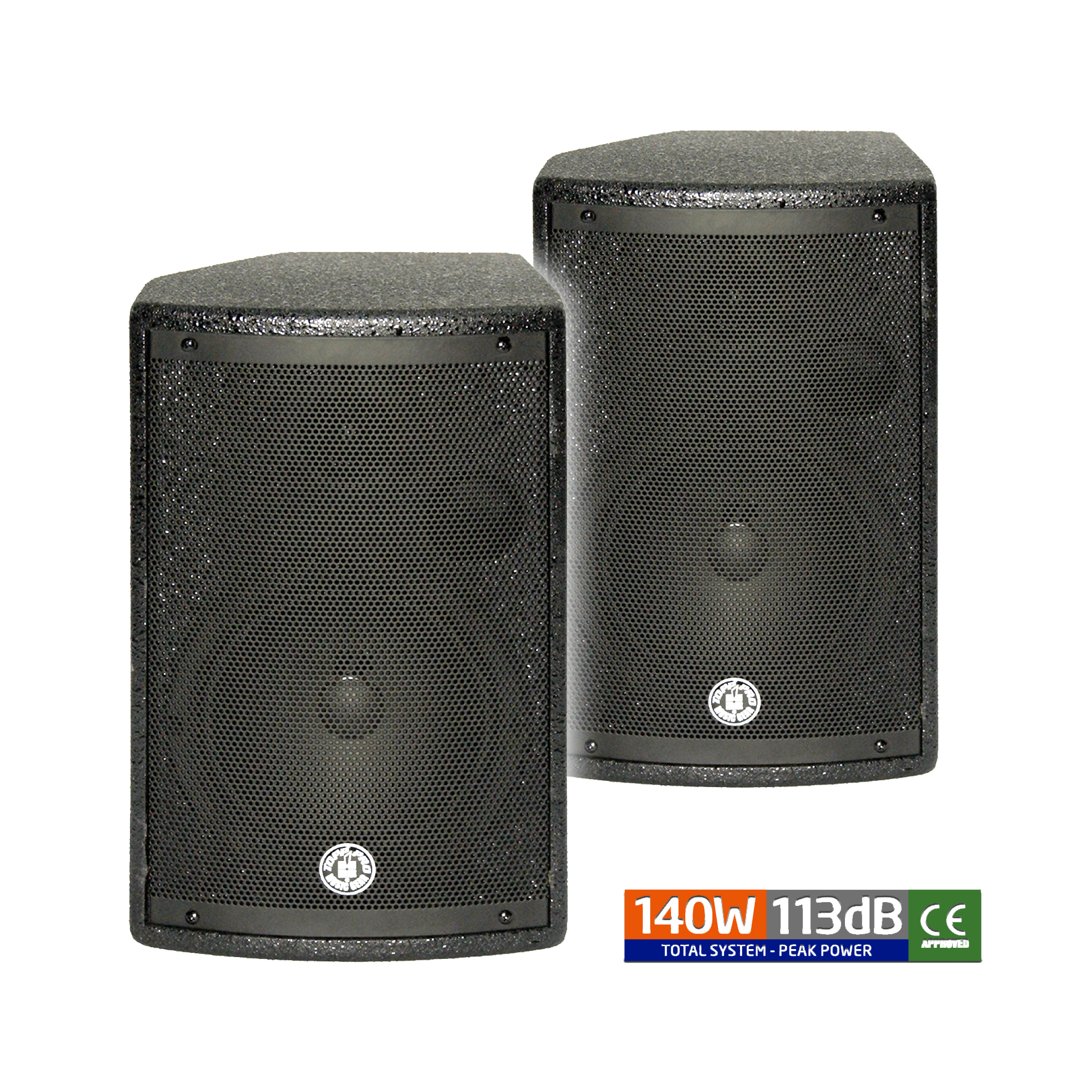

TPS 16AP

TPS 16AP is a multifunctional speaker with small size and light weight. It has a 2-WAY bass reflex design, built-in 25mm silk film tweeter, 6.5" WOOFER, passive frequency division, 70W*2 amplifier power, and can be connected to 1 4 OHMS or 2 8 OHMS passive speakers, and can work simultaneously with the built-in speakers. 2RCA input/output,which can meet the sound needs of different occasions and can also be used as a MONITOR speaker. There are two M4 hanging screw holes on the bottom and side of the box, and it can also be equipped with the company's YS-50 bracket to be installed on the wall.
TPS 16AP



  • 2-Way 6.5" Vented Active Speaker Cabinet
  • RMS-140 Watts , Program-280 Watts
  • 2 RCA line inputs
  • 2 RCA line outputs

  • Monitor output with level control
  • Powered output 70W(@4ohms,min) for optional external speakers
  • MIC/LINE BLANCED INPUT
  • LINK OUTPUT with XLR

Specification

TPS 16AP

2-Way 6.5" Vented Active Speaker Cabinet

RMS-70Watts Program-140Watts

75Hz-20KHz(-6dB)

110dB Max

2.4KHz@12dB/oct

6.5"(165mm)woofer/1"Voice Coil

1"Neodymium Tweeter

MIC/LINE blanced input at-40/0dB (Combo Connector)
AUX input at-10dB with RCA Connector
LINKOutput at-40/0dB with XLR

Class D 70Wx2(BTL)

Themal/overload/angalog limiter

Continuous, workonly on MIC/LINE input

110-120V/220-240V~50/60Hz

Trapezoidal painted wood cabinet.metal grille

4xM4 Standard(2xVertical and Horizontal side)

12.52"(318mm)x7.87"(200mm)x7.93"(201.5mm)

13.05 lbs/4.6Kg

1.19CFT
