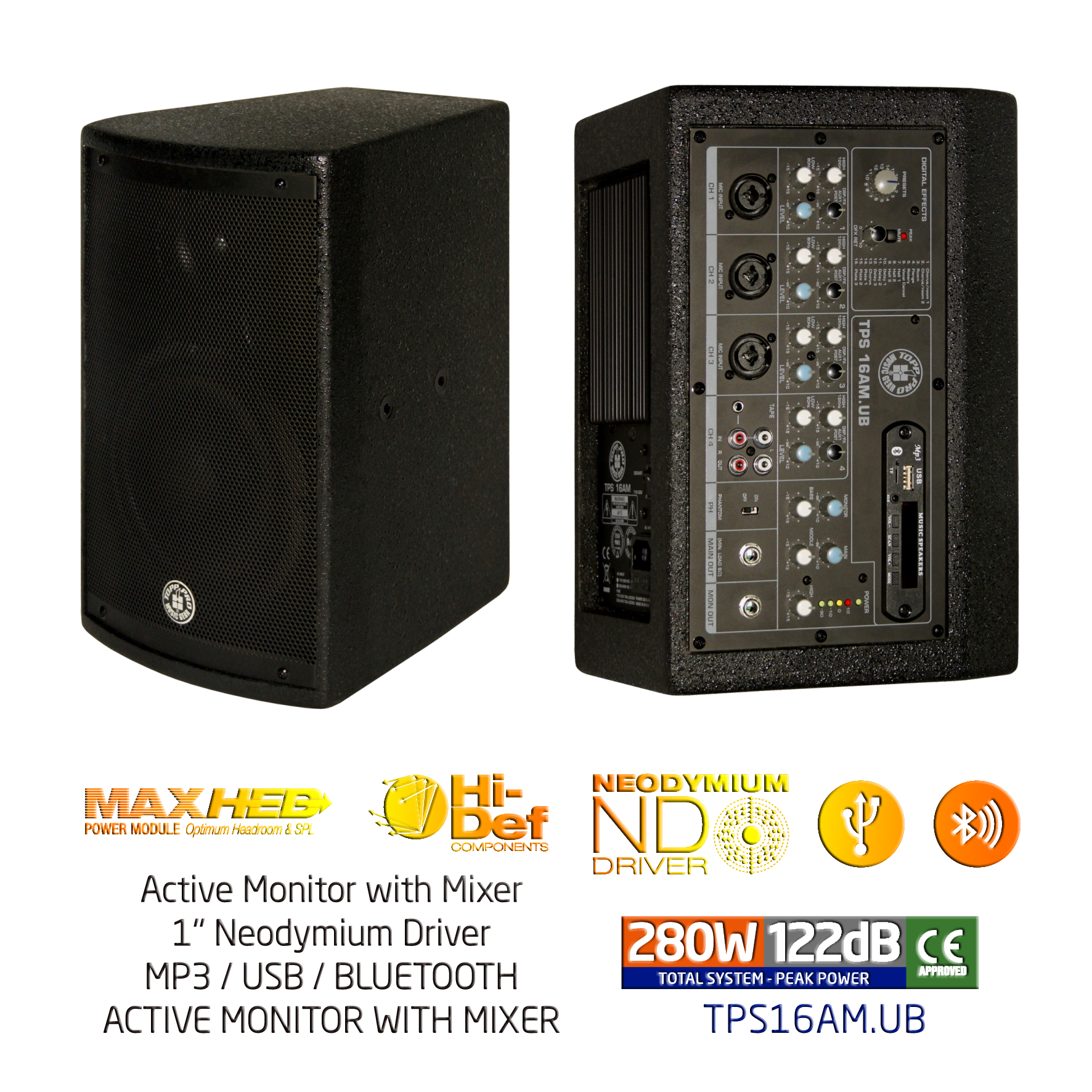

TPS 16AM.UB

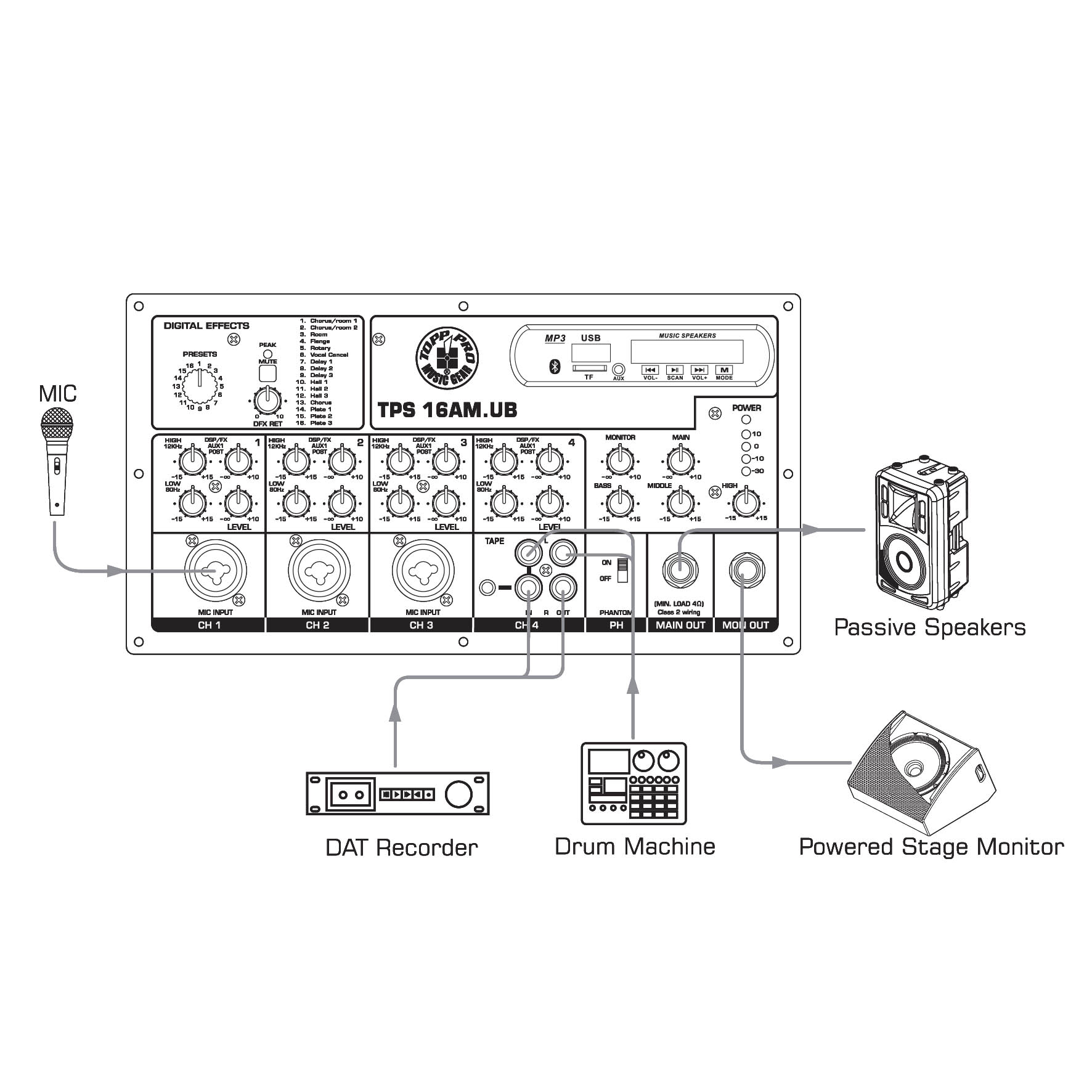

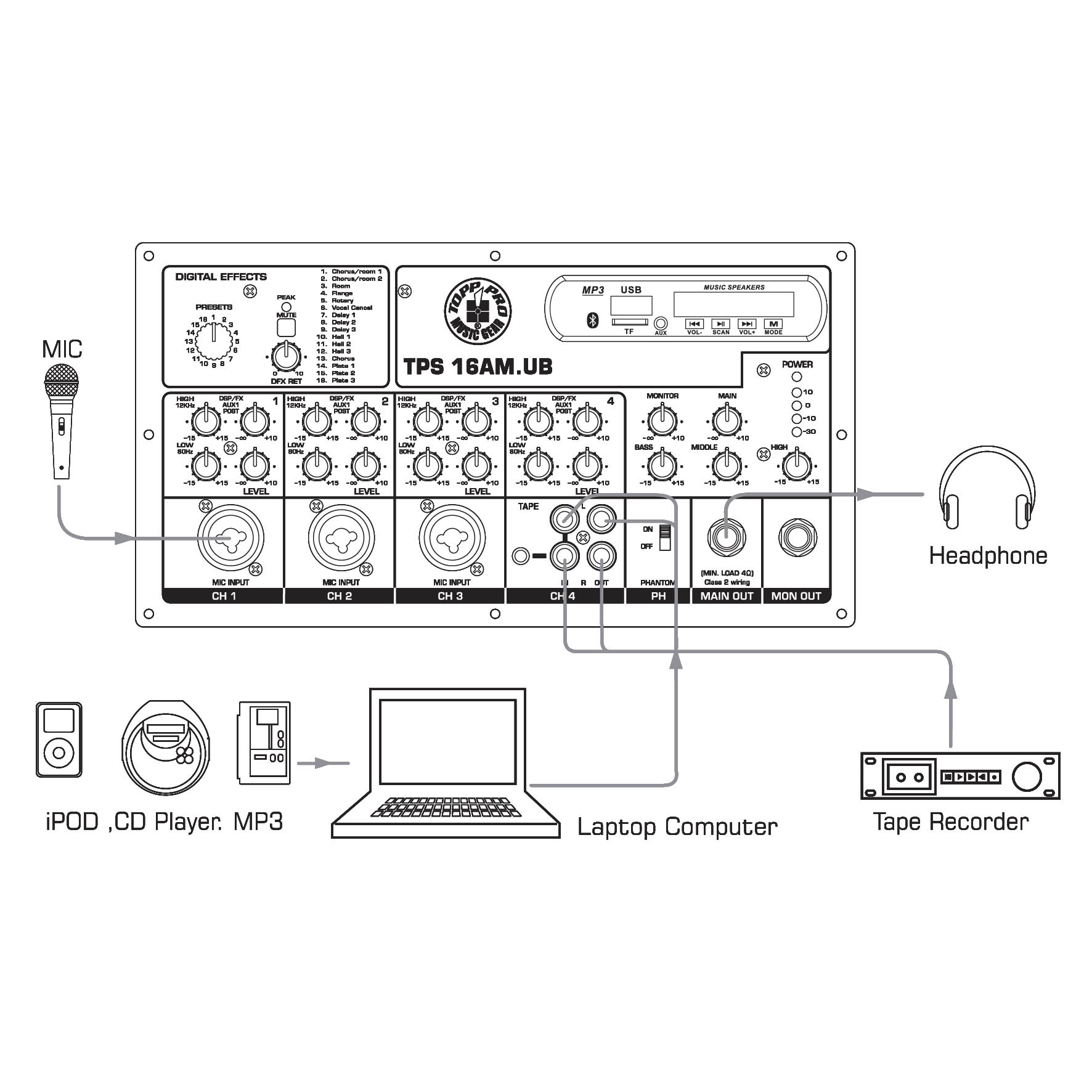

TPS 16AM_UB is a multifunctional speaker with small size and light weight. It has a 2-WAY bass reflex design, built-in 25mm silk film tweeter, 6.5" WOOFER, passive frequency division, 70W*2 amplifier power, and can be connected to 14 OHMS or 28 OHMS passive speakers, and can work simultaneously with the built-in speakers. In addition, it has a 5CH MIXER as the control part of the front and rear poles of the entire system, a 3 CH COMBO seat as a MIC input, with +15V phantom power, 2RCA input/output, 3.5mm JACK input, each channel has 2-band EQ, and 3-band EQ is controlled in the main output part. The MIXER is equipped with a 16-band DSP function, which can meet the sound needs of different occasions and can also be used as a MONITOR speaker. There are two M4 hanging screw holes on the bottom and side of the box, and it can also be equipped with the company's YS-50 bracket to be installed on the wall.
TPS 16AM.UB



  • 2-Way 6.5" Vented Active Speaker Cabinet
  • RMS-140 Watts , Program-280 Watts
  • 2-band equalizer on input channels
  • 5 input channels with individual Volume Control & 2 bands EQ
  • 3 bands Master EQ
  • 3 COMBO microphone inputs with phantom power

  • 2 RCA line inputs /3.5mm jack
  • 2 RCA line outputs
  • Monitor output with level control
  • Powered output 70W(@4ohms,min) for optional external speakers
  • 16-preset digital effect processor
  • USB Player: With USB&Mirco SD CARD,Bluetooth,Line

Specification

TPS 16AM.UB

2-Way 6.5" Vented Active Speaker Cabinet

RMS-70Watts Program-140Watts

75Hz-20KHz(-6dB)

110dB Max

6.5"(165mm)woofer/1" Voice Coil

1"Neodymium Tweeter

2.4KHz@12dB/oct

2-band equalizer on input channels
5 Input channels with individual Volume control
3bands Master EQ
3 COMBO microphone Inputs with phantom power
2 RCALine Inputs/3.5mm jack
2RCALine Outputs
Monitor output with level control
Powered output 70W(@4 ohms, min) for optional extenal speakers
16-preset digital effect processor

With USB&Mirco SD CARD, Bluetooth

230V-115V@50-60Hz

Class D 70Wx2, one for inside speaker/one for optional external speaker

Thermal/overload/angalog limiter

Trapezoidal painted wood cabinet. metal grille

4xM4 Standard(2xVertical and Horizontal side)

12.52*(318mm)x7.87*(200mm)x8.67*(220mm)

13.67 lbs/6.2Kg

1.24CFT
