WS-8i

Features involves portable, multifunctional and active speaker.
Two-way design (1 *8"woofer + 4 *2.75" mid-treble).

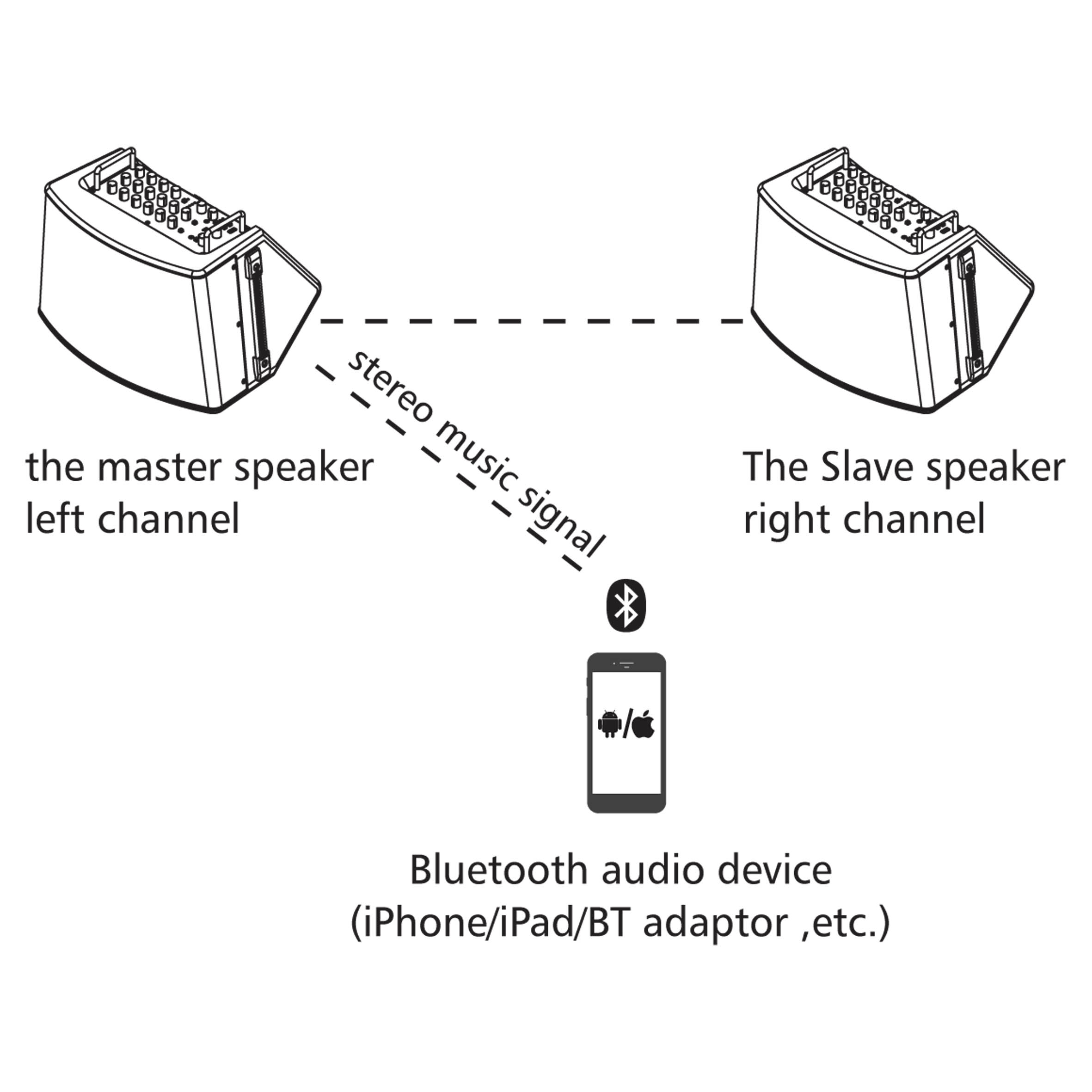

Connecting with different devices via bluetooth or wireless paires to achieve L/R stereo effects.
Dual power supply applied: AC 110-240V ~50/60Hz and DC25.9V(lithium battery)
Suitable for personal entertainment, bars, shopping centers, street playing and singing, school teaching, fitness clubs and other multi-scenario applications.

Humanized constructure design, easy to operate it for user.
Features involves portable, multifunctional and active speaker.

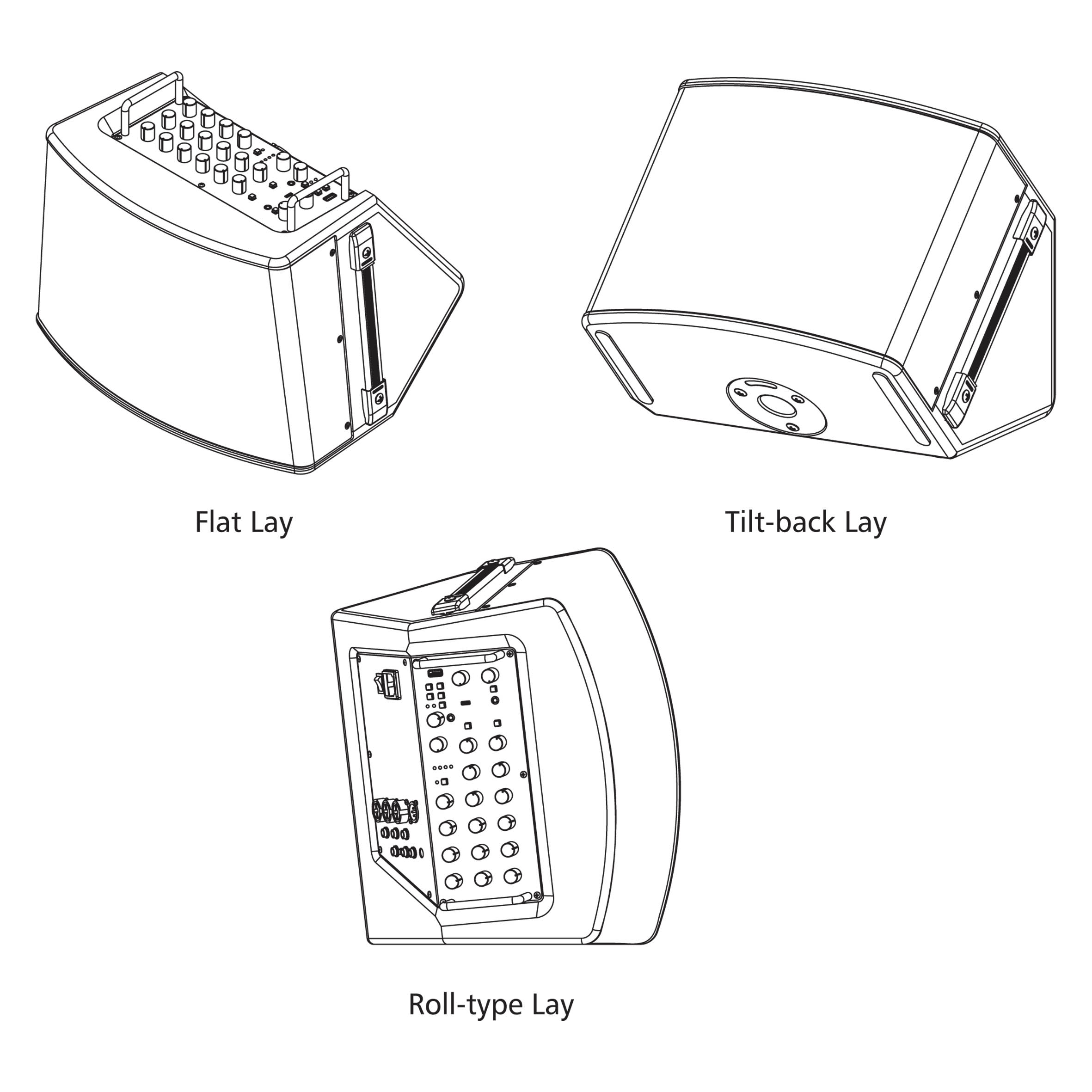

Diversity of installation methods such as tilt-back or bracket installation which can be applied to installation in various positions to support monitor function.
Two-way design (1 *8"woofer + 4 *2.75" mid-treble)
Connecting with different devices via bluetooth or wireless paires to achieve L/R stereo effects.
Equipped with MP3 audio input to meet multi-format playback such as MP3/WMA/WAV/FLAC/APE.
Dual power supply applied: AC 110-240V ~50/60Hz and DC25.9V(lithium battery).
To achieve freely switch between different instruments/ different presets (Warm/Bright) by adjustment function of DSP.
3-stage EQ adjustment(bass, middle, treble) , reverb &chorus effects and DSP control function.

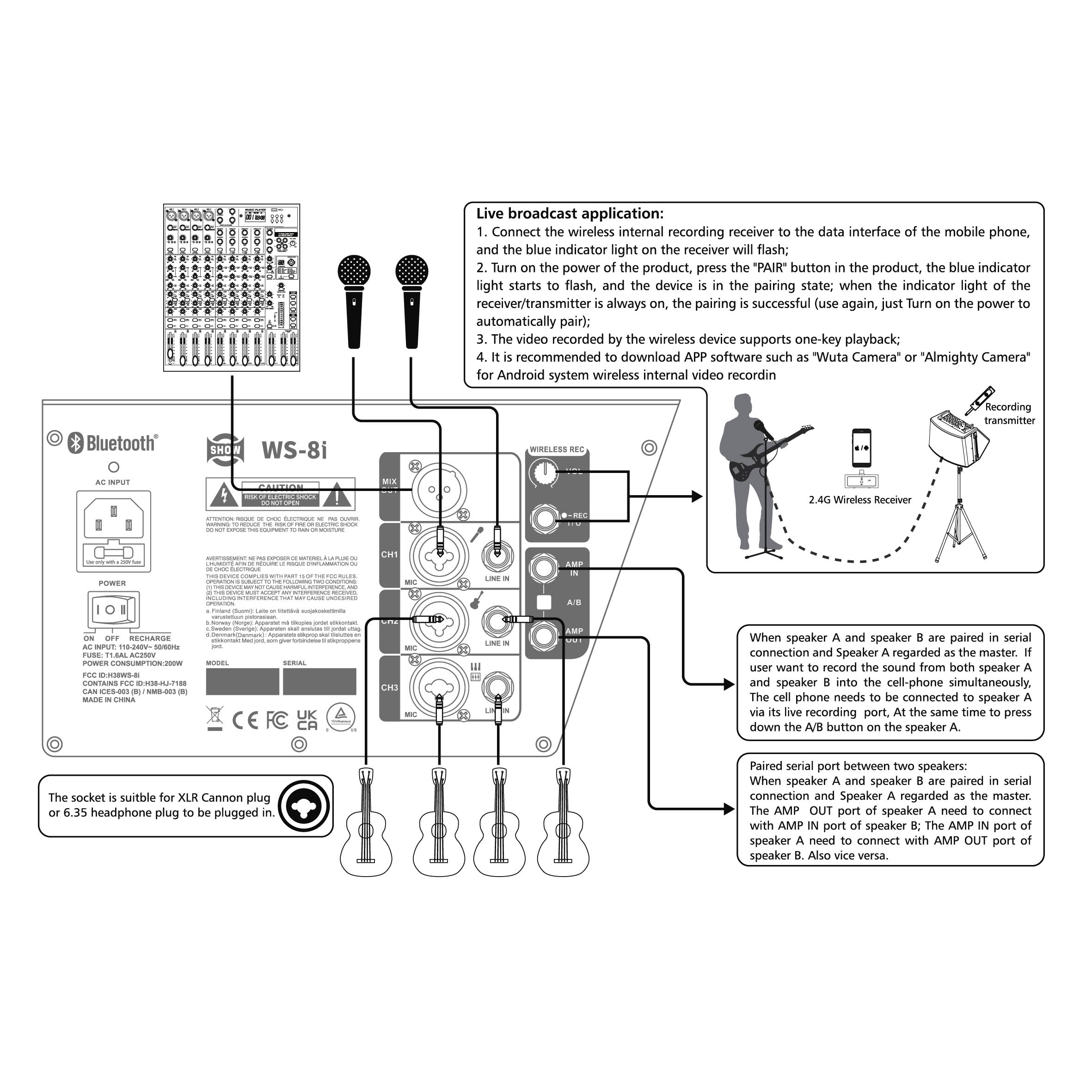

Live recording function.
4-channel (wired) input can realize simultaneous connection among different sound-sources, instruments and microphones.
3-fragment AC power switch can meet operation and charging simultaneously or independent charging function.
Wide directional structure design, 180-degree sound coverage without dead angle
Equipped with mixer output port and output &control under headphone monitor mode.
Suitable for personal entertainment, bars, shopping centers, street playing and singing, school teaching, fitness clubs and other multi-scenario applications.

Specification

Portable active instrument speaker

80Hz-20kHz(±10dB)

118dB

950Hz

1*8 bass speaker

4*2.75"treble speaker

Bluetooth V5.3(4mW Max,frequency range:2402-2480 MHz)/3.5mm L/R stereo input/Type-C wired internal recording input interface
(Apply to iOS/Android)/MP3 input interface.)

CH1 MIC input:-39dBu(1dBu),CH1 wired input:-36dBu(+1dBu);CH2/3 MIC input:-36dBu(+1dBu),CH2/3 Line Input:-36dBu(+1dBu);
Stereo Line input:3.5mm AUX IN:-15dBu(+1dBu).

Low-frequency adjustment(BASS):+22dBu(at 80Hz VR OdBu),Middle-frequency adjustment(MIDDLE):+22dBu(at 1kHz VR OdBu),
High-frequency adjustment (TREBLE):26dBu(at 10kHz VR OdBu).

CH1:CH1 volume adjustment,BASS/TREBLE adjustment,REVERB adjustment,PHANTOM switch (support condenser MIC and indicator.

CH2/CH3:CH2/CH3 volume adjustment,BASS/MIDDLE/TREBLE QE adjustment.REVERB adjustment,CHORUS selection switch.

DSP tone-color selection switch (WARM/BRIGHT).

Bluetooth/MP3 mode switch,Bluetooth/MP3 indicator.

Headphone monitor mode selection switch(MUTE)and volume knob,A/B switch for selecting internal recording applied on multiple serial

speakers,Charging indicator and master volume(MASTER)adjustment.

Channel 1(CH1):1x6.35mm MIC input or XLR Cannon MIC input port 1x in-parallel 6.35mm MIC input port.

Channel 2(CH2):1x6.35mm MIC input or XLR Cannon MIC input port;1x in-parallel 6.35mm instrument input port;

Channel 3(CH3):1x6.35mm MIC input or XLR Cannon MIC input port;1x in-parallel 6.35mm instrument input port;

1*XLR Cannon mixer line balanced output port;1 x 06.35mm headphone monitor mode output port;1 x 06.35mm input port for two serial speakers;1 x 03.5mm output port for two serial speaker.

Rated Capacity:25.9V/2500mAh (type:18650-25.9V-2500mAh-7INR19/66)

At least 4 hours(Lighting solid green means fully charged),Use life:6-8 hours based on normal playback.

AC input:100-240V~50-60Hz with power switch.

Environmental friendly plywood wooden box,metal grill,hardware/plastic handle,portable.

Using 35mm standard bracket

277mm(H)*419mm(W)*324mm(D)

9.8KG

Bars,shopping malls,street music,school teaching,health clubs,etc.
