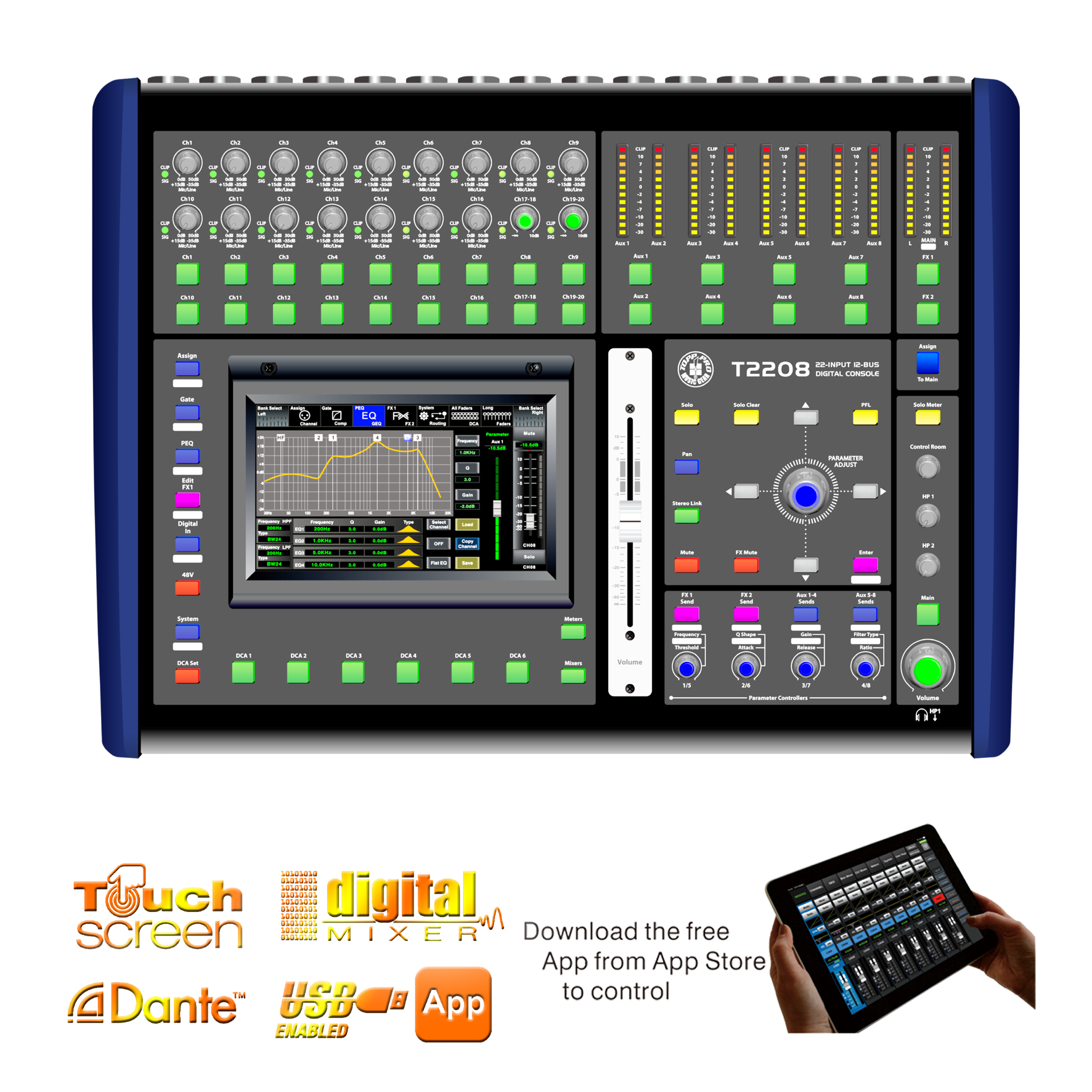

T2208

T2208 with 20 line-level inputs, 16 microphone preamplifiers and playback engine; processing with 31-band GEQ, compressor, gate, delay, polarity; DSP effects; aux buses; subgroups; sensitive LED metering; load/save/copymixer setting; remote control, USB in and more

T2208



  • 16 microphone preamplifiers with dedicated trim control and 20 line-level inputs
  • 8 Aux sends
  • 1 Main L/R Output
  • USB Stereo recording
  • 2 stereo internal FX processors
  • 100mm precision motor fader

  •  7 inch color LCD touch screen for graphical view and setup
  • 24-bit/48KHz sampling rate
  • Program, save, load & copy functions
  • Noise gate, Compressor/Limiter, Phase, Delay, 4-band full parametric Equalizer
  • Ethernet port used to configure local area network for APP connection and control

Specification

Electronically balanced

20Hz-20KHz at 0dBu ± 1.5dB
20Hz-20KHz at 0dBu ±1.5dB

<0.01% at 0dBu 1KHz
<0.01% at 0dBu 1KHz
<0.01% at 0dBu 1KHz

107dB

+22dBu
+20dBu
+20dBu

+48VDC

Unbalanced

-15dBu~+35dBu
-∞ to +10dBu
-∞ to +10dBu

+20dBu

Balanced (2 stereo pair)

20Hz~20KHz at 0dBu ± 1.5dB
20Hz-20KHz at +4dBu±1.5dB

<0.01% at 0dBu 1KHz

20Hz~20KHz at 0dBu

Main Outputs
+20dBu
AUX1~8 Outputs
+20dBu
Control Room Outputs
+20dBu

Input to Output(at +4dBu 1KHz)
-87dBu
Adjacent Channels(at +4dBu 1KHz)
-86dBu
Noise(Bus noise)
-90dBu

Threshold Range
-84 dBu -0dB
Attack time
0.5mS-200m5
Relesae time
10mS-1S

Threshold Range
-50dBu-0dB
Attack time
10mS ~ 150mS
Relesae time
10mS ~ 1S
Ratio
1:1 to 10:1
Gain
0dBu-+24dB

Low (LowPass or LowShelf)
21Hz~19.2KHz +/-24dB
Low Mid
21Hz-19.2KHz +/-24dB
High Mid
21Hz-19.2KHz +/-24dB
High(HighPass or HighShelf)
21Hz-19.2KHz +/-24dB

ADC Dynamic Range
114dB
DAC Dynamic Range
114dB
Internal Processor
32-bit,floating point
ADC,DAC bit depth
24bit

Microphone input
1.4KΩ
Channel Isert return
2.5KΩ
All other inputs
10KΩ or greater
Tape out
1KΩ
All other output
120 Ω
operating free-air temperature range
0~40℃
storage temperature range
-20℃~60 ℃
