DMC24.12

  • AUTO Mixing
  • RTA Real-time Spectrum Analysis.
  • FBC Feedback Howl Suppressor
  • User Keys
  • Talkback / Mic input
  • Ducker
  • Recall Safe function
  • Extension Port

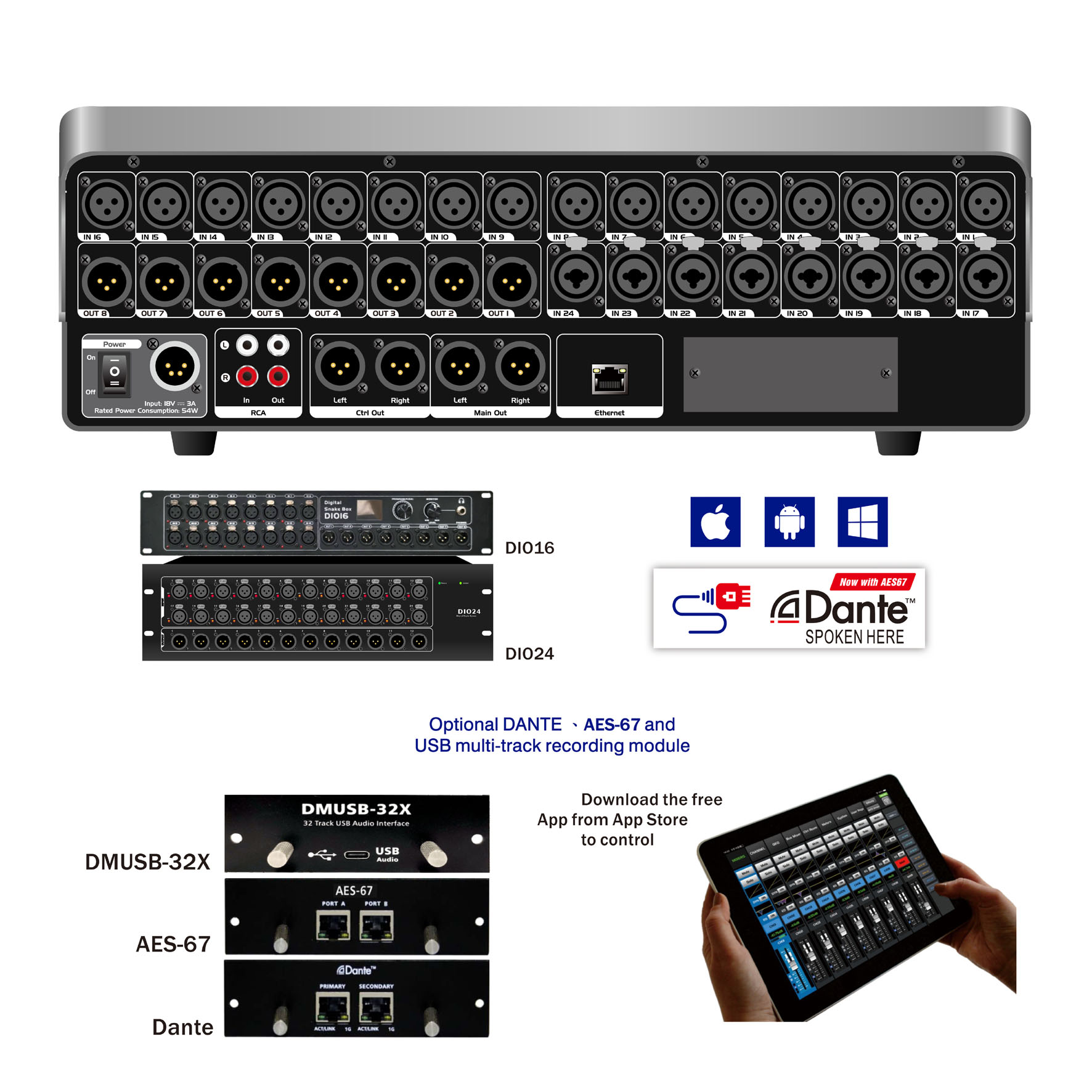

  • It supports optional extension modules, including Dante-32, AES-67 network audio transmission module and USB-32X recording module.
DMC24.12



  • 32 digital inputs and outputs
  • 24-bit, 48K/96KHz sampling rate
  • Digital gain control
  • Phantom power control
  • Digital noise gate / Limiter / Digital compressor
  • Digital 4-band full parametric EQ and 31 segment GEQ
  • Pan / Phase reverse / Time delay
  • 8 DCA for fader group / 8 mute group

  • Auto mix / RTA/ FBC / Matrix
  • Program, save, load & copy functions
  • Lock and unlock function / Change the password
  • 16 XLR +8 comb inputs
  • 12 XLR and 8 MIX bus outputs
  • 9 Channels 100mm motorized faders
  • 10.1" touch screen with resolution 1024x600
  • Bluetooth player, Type-C USB interface, support OTG protocol high-fidelity

Specification

22Hz~20KHz at 0dBu +1/-2.5dB

<0.03%at OdBu 1KHz

107dB

+20dBu±0.5dB

+20dBu±0.5dB

<-105dBu

<-105dBu

<-89dBu

113dB

113dB

32-bit floating point

32bit

24bit

6.8KΩ

120Ω

Threshold Range
-84dBu ~+19dBu
Attack time
0mS ~250mS
Release time
5mS~2S

Threshold Range
-83dBu +20dBu
Attack time
0mS ~250mS
Release time
5mS~2S
Ratio
1:1 to 40:1,inf:1
Gain
OdB -+12dB

Low (LowPass or LowShelf)
20Hz~20KHz±(15db±2db)
Low Mid
20Hz~20KHz±(15db±2db)
High Mid
20Hz~20KHz±(15db±2db)
High(HighPass or HighShelf)
20Hz~20KHz±(15db±2db)

349*452*147MM

8.6kg
