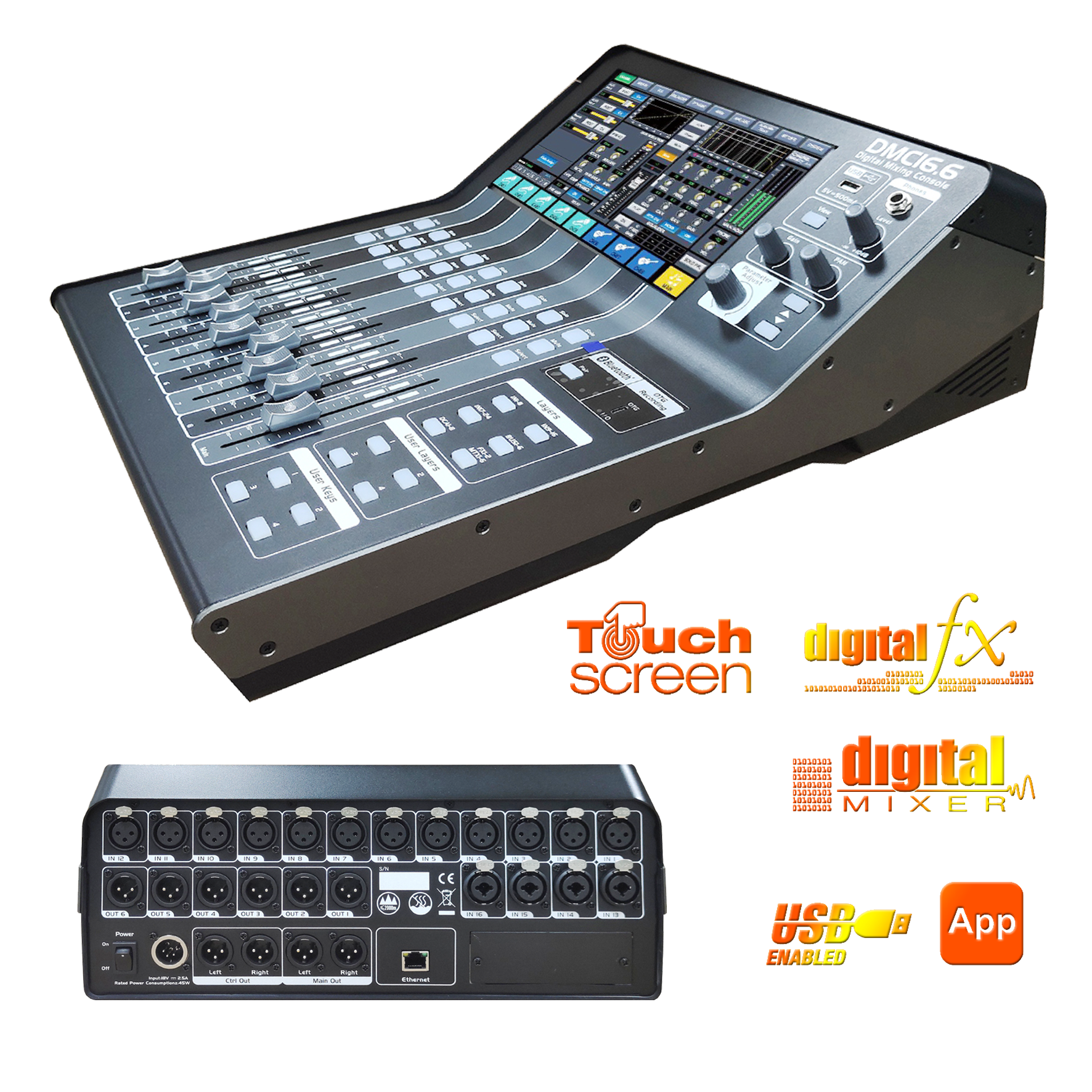

DMC16.6

DMC16.6 with 16microphone preamplifiers, Digital 4 band full parametric EQ, Compressor, Noise Gate, Delay, Remote control, 9 precision motor fader for level control, 10.1 inch LCD display operation in real-time, Program, Save, Load ,Copy, Record, BT/OTG play functions and son.

DMC16.6

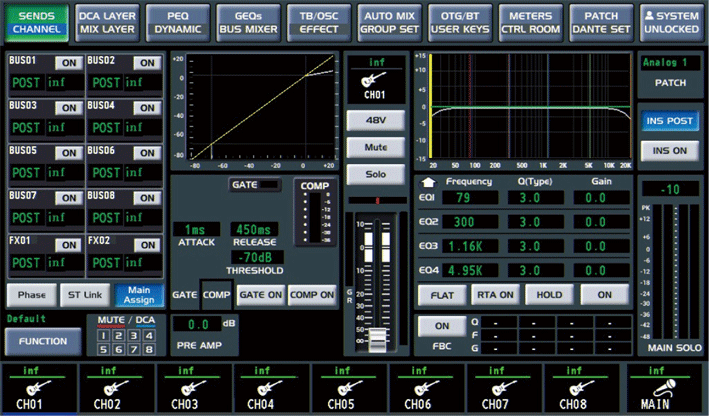

10.1 inch colorful LCD touch screen for graphical view and setup.

  • 16 XLR analog inputs ( including 4 XLR/TRS combo socket ) with digital gain control applied
  • 8 XLR socket mixing bus outputs.
  • Up to 24 DSP processing channels
  • Equipped with Bluetooth player and OTG audio play/record function.
  • LAN for APP to connect and control the network port.

  • 9 electric stepper faders with 100mm travel
  • 32 bit floating point digital signal processing
  • 24-bit / 48 / 96KHz sampling rate.
  • Program, save, load & copy functions
  • Noise gate, Compressor/Limiter, Phase, Delay, 4-band full parametric Equalizer
  • USB port used for preset save/load and firmware updates

Specification

Electronically balanced

22Hz~20KHz at 0dBu±2dBu

<0.03% at 0dBu 1KHz

0dBu-50dBu

108dB

+20dBu±0.5dBu

+48VDC

Frequency response to main output
22Hz~20KHzat 0dBu±2dBu
Distortion (THD & N) to main output
<0.03% at 0dBu 1KHz
Gain
-20dBu~+30dBu
Maximum input level (gain at 0dBu)
+20dBu

Frequency response to main output
22Hz~20KHz
Distortion (THD & N) to main output
<0.3% at 0dBu 1KHz
Maximum input level
20dBu ±3dBu

Maximum output level
+20dBu±1.5dBu

Maximum outputs level
+20dBu±1.5dBu

Maximum outputs level
+20dBu±1.5dBu

Maximum output level
+20dBu±1.5dBu

Input to output (at +0dBu 1KHz)
-88dBu
Adjacent channels (at +0dBu 1KHz)
-87dBu

Noise gate
-84dBu~+19dB
Threshold range
0ms~250mS
Release time
5mS~25

Threshold range
-83dBu~+20dB
Attack time
0mS-250mS
Release time
5m5-25
Ratio
1:1 to 40:1, inf:1
Gain
0dBu-+12dB

Low (lowpass or lowshelf)
20Hz~20KHz±(15dBu±2dBu)
Low mid
20Hz~20KHz±(15dBu±2dBu)
High mid
20Hz-20KHz±(15dBu±2dBu)
High (highpass or highshelf)
20Hz~20KHz±(15dBu±2dBu)

ADC dynamic range
113dB
DAC dynamic range
113dB
Internal processor
32bit,floating point
ADC bit depth
32bit
DAC bit depth
24bit
LCD
10.1"(1024x600)

Microphone input
6.8KΩ
Line input
75KΩ
All output
120Ω

349*452*147mm

6.7kg
