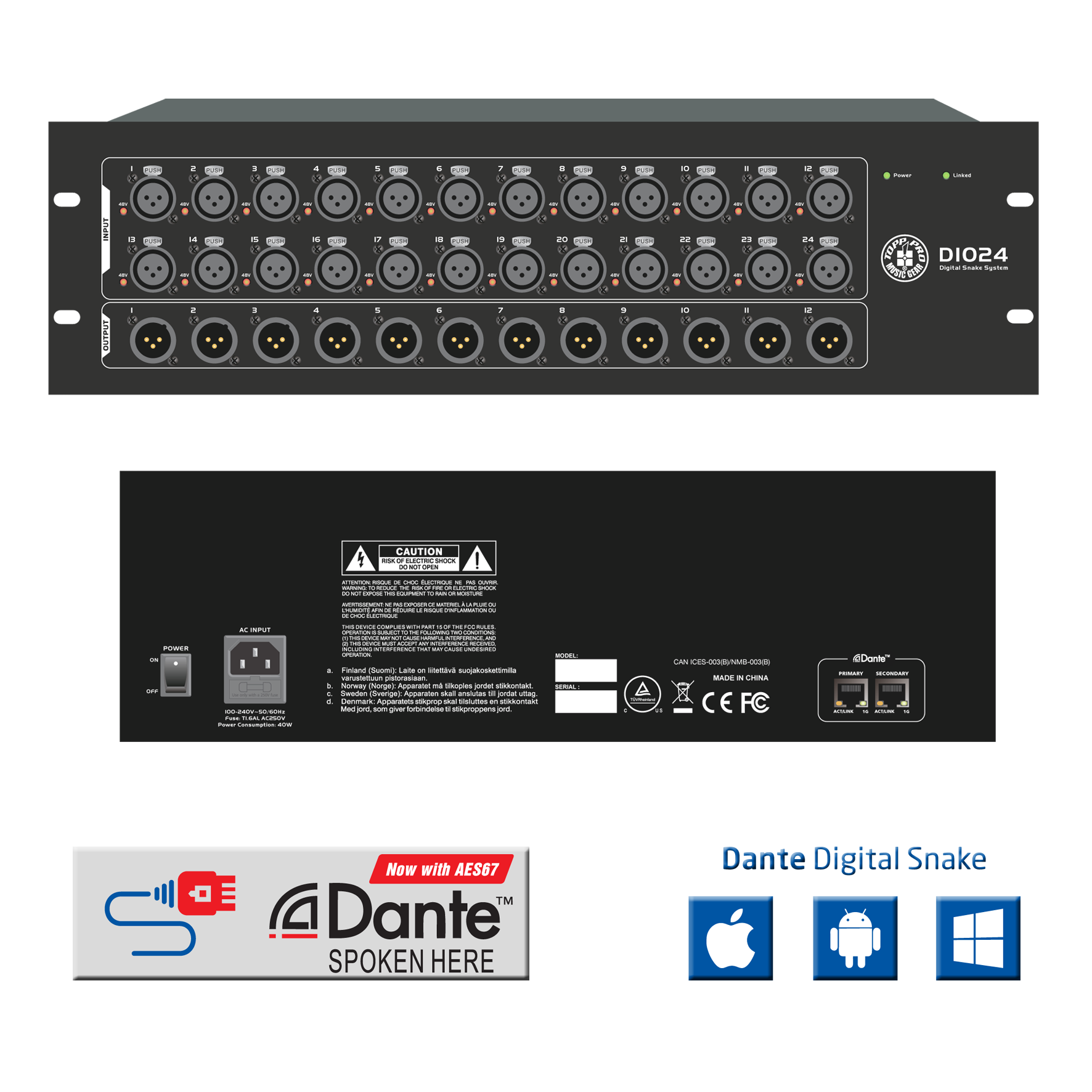

DIO24

  • 24 MIC analog inputs/12 XLR analog outputs.
  • 48V phantom power control and power indicator.
  • OdB~50dB input digital gain control.
  • 100-240V wide voltage switching power.

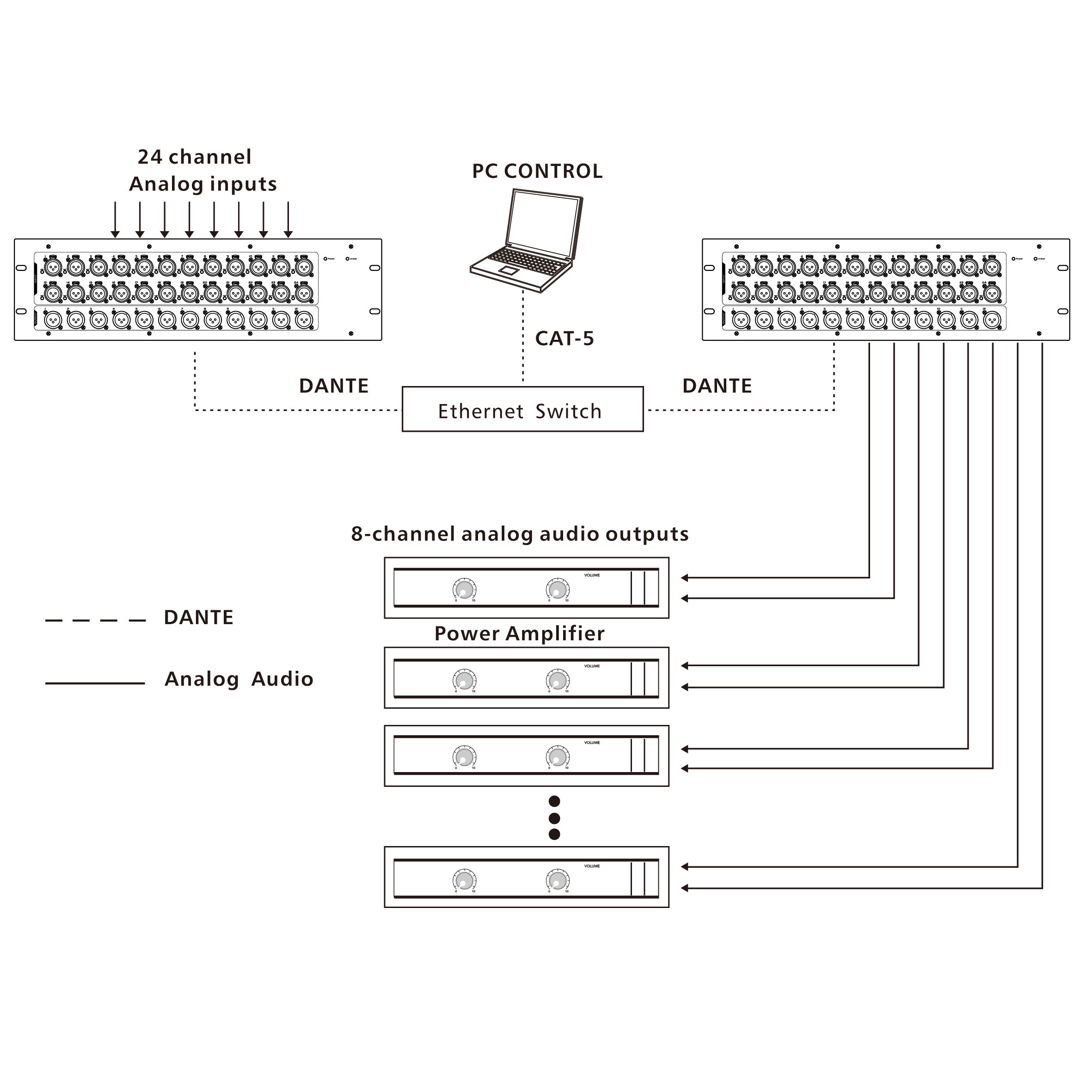

  • Up to 24 inputs for T-DANTE/12 output network real-time transmission of digital signals multiple expansions.Support to modify the device ID with PC software.
DIO24

  • DIO24 with 24 MIC inputs and 12 outputs.
  • Up to 100-meter or more than 1000-meter transmission distance can be reached when using the CAT5 cable or fiber cable separately.
  • It delivers uncompressed digital audio in high quality, extra low noise and real time through a standard Ethernet network.

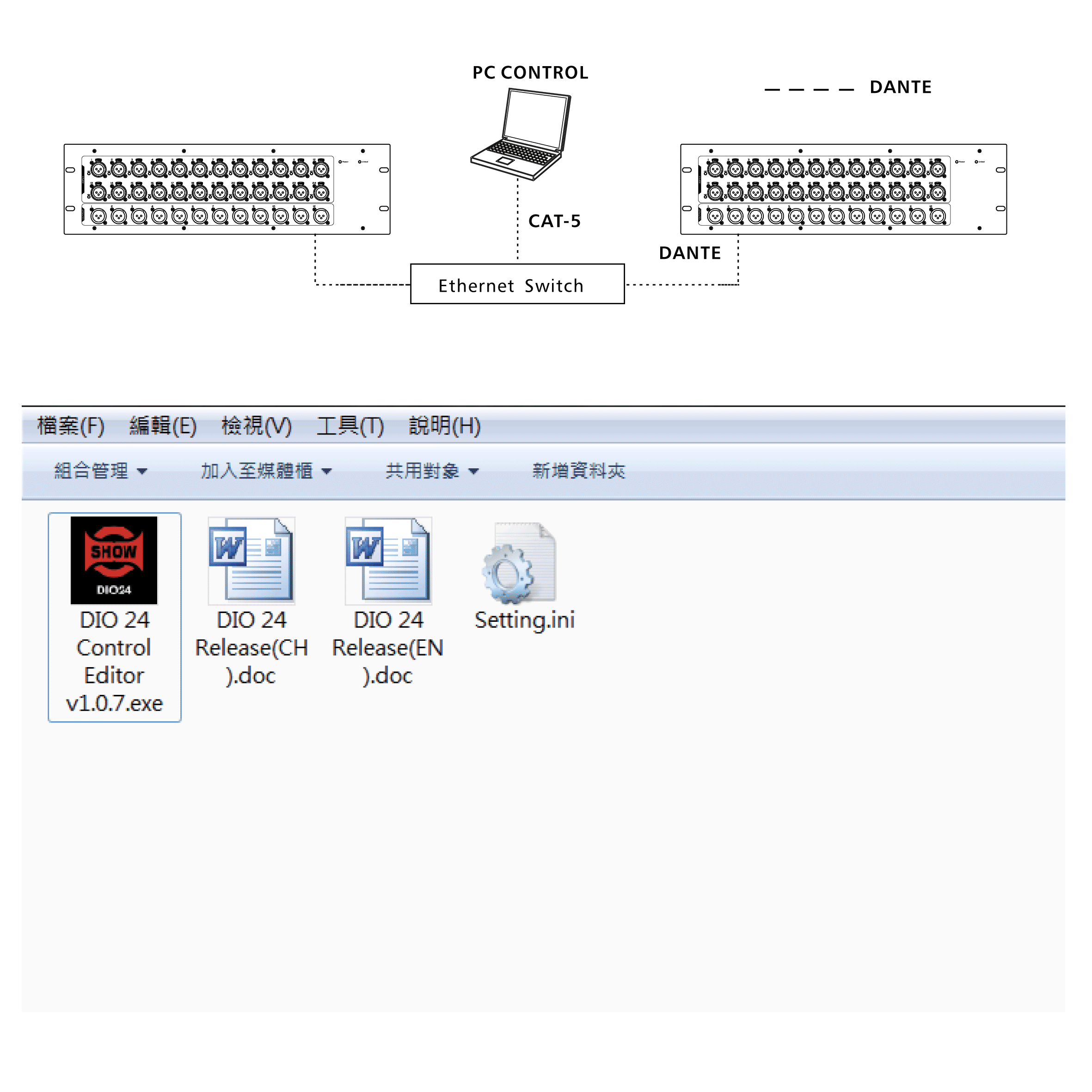

  • The audio transmission function can be set with professional software and stored in the device for independent usage so that it makes usage more flexible and affordable.

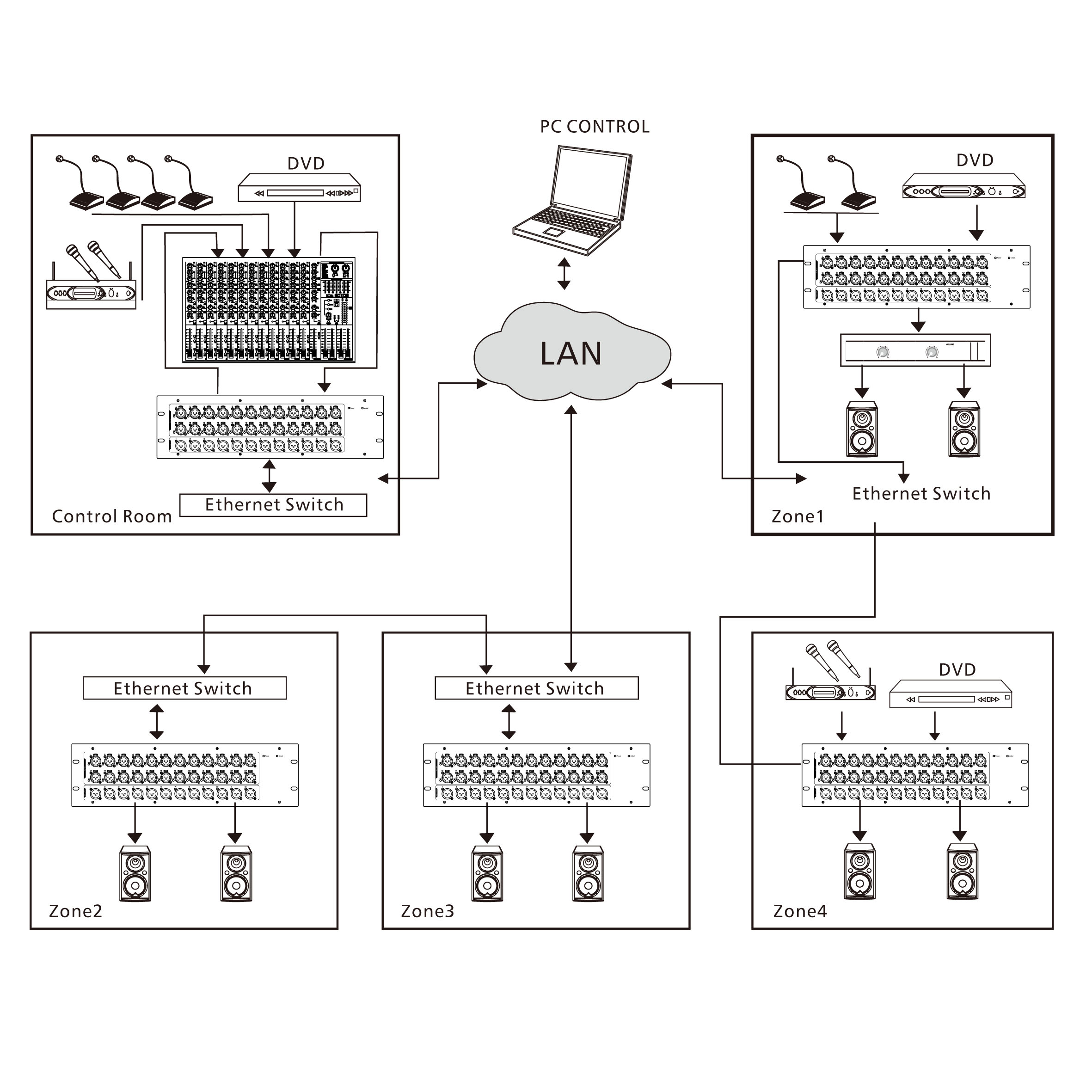

  • All of signals will be transmitted through digital Ethernet network so that it can avoid the distortion issue caused by sending analog signal.

Specification

Electronically balanced

20Hz-20KHz at 0dBu +1dB

<0.03%at OdBu 1KHz

108dB

+20dBu

+48VDC

125dB

Maximum Output Level
+20dBu

Input to Output(at +20dBu 1KHz)
-70dBu

-91dBu

ADC Dynamic Range
114dB
DAC Dynamic Range
114dB
Internal Processor
32-bit,floating point
ADC,DAC bit depth
32bit

Microphone input
6.8KΩ
output
240Ω
operating free-air temperature range
0～40℃
storage temperature range
-20℃～60℃
