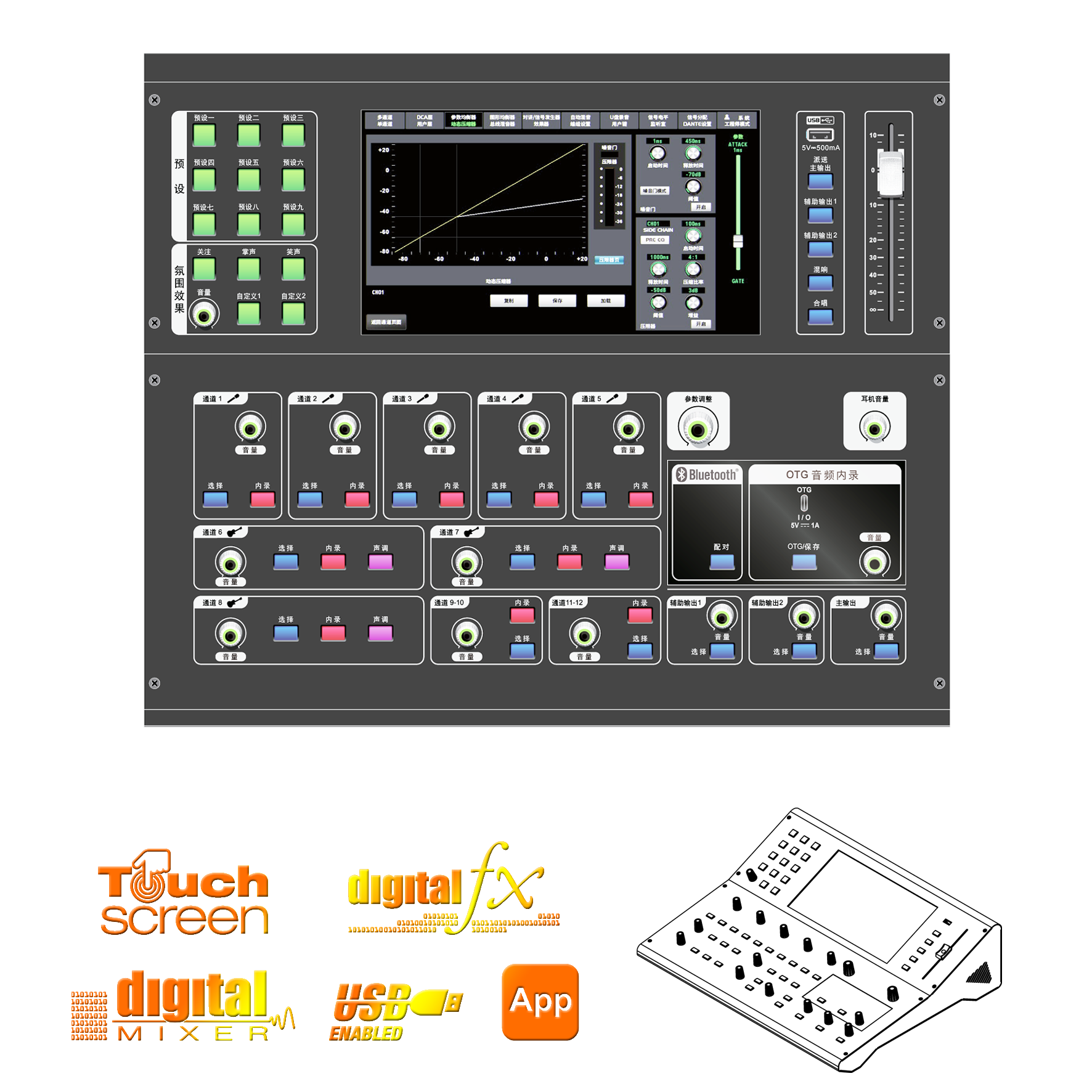

DCM-1

  • Digital gain control
  • Reverb/echo/chorus effects
  • Digital noise gate/digital compressor/limiter
  • Digital 4-band full-range parametric equalizer and 31-band graphic equalizer
  • Pan/invert/time delay
  • 8 digital group controls for fader grouping/mute grouping
  • Lock and unlock function/change password
  • Automatic mixing/real-time audio analysis/automatic howling suppression/ducking function/automatic noise elimination/automatic gain control
DCM-1



   Standard functions

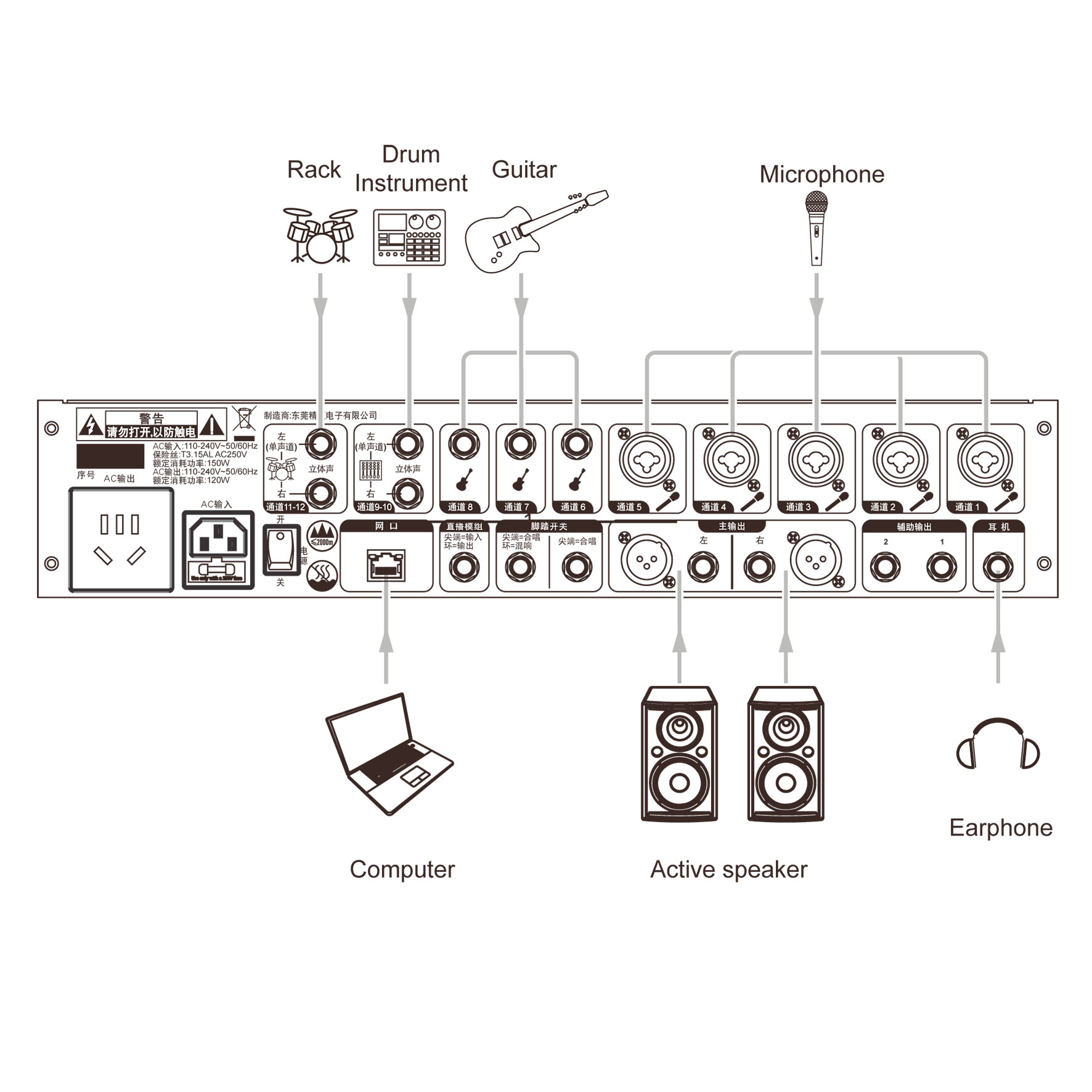

  • 5 mixed inputs, 7 linear inputs
  • 1 stereo output, 2 AUX outputs, 1 stereo headphone output
  • 3-way foot pedal sound effect control switch
  • 10-inch central control touch screen with 1024*600 resolution.
  • 100mm large stroke electric step fader to control volume.
  • Support Bluetooth 5.3 stereo playback
  • USB TAPE-C high-fidelity sound card, support OTG protocol, support mobile phone charging
  • Expand 2.4G wireless live broadcast, can connect WH-24R products to mobile phones
  • Support ambient music storage
  • Support USB port preset save/load and software update
  • Support network port to connect iPad remote control APP


    Digital functions

  • Digital gain control
  • Reverb/echo/chorus effects
  • Digital noise gate/digital compressor/limiter
  • Digital 4-band full-range parametric equalizer and 31-band graphic equalizer
  • Pan/invert/time delay
  • 8 digital group controls for fader grouping/mute grouping
  • Lock and unlock function/change password
  • Automatic mixing/real-time audio analysis/automatic howling suppression/ducking function/automatic noise elimination/automatic gain control

Specification

CH 1~CH 5 microphone input
0dB~42dB
CH 1~CH 5 linear input
-20dB~+22dB
CH 6~CH 8 linear input
0dB
CH 9/10-CH 11/12 linear input
0dB

Threshold range
-84dBu ~ +19dBu
Action time
0mS ~ 250mS
Release time
5mS~2S

Threshold range
-83dBu -+20dBu
Action time
0mS ~ 250mS
Release time
5mS~2S
Ratio
1:1 to 40:1,inf:1
Gain
0dB - +12dB

EQ1
20Hz~20KHz ±(15dB±1dB)
EQ2
20Hz~20KHz ±(15dB±1dB)
EQ3
20Hz~20KHz ±(15dB±1dB)
EQ4
20Hz~20KHz ±(15dB±1dB)

CH 1~CH 5 microphone input
+10dBu
CH 1~CH 5 linear input
+30dBu
CH 6~CH 8 linear input
balance input+9.9dBu,Unbalanced input+7.9dBu
CH 9/10-CH 11/12 linear input
balance input+12.4dBu,Unbalanced input+7.9dBu

Main output/auxiliary output/headphone output
+10dBu

Input all muted output noise floor
<-93dBu
CH 1~CH 12, single CH input output noise floor
<-87dBu
Bluetooth output noise floor
<-82dBu
OTG output/ambient music output noise floor
<-78dBu

@0dBu
22Hz~20KHz ±1dB

@1KHz,0dBu
<0.03%

@1KHz
<-88dBu

>97dBu

102dBu

105dBu

24bit

32-bit , floating point

10.2 inch (1024*600)

+48V±2v

Operating temperature
0~40℃
Storage temperature
-20℃~45℃

100-240V~50/60Hz
