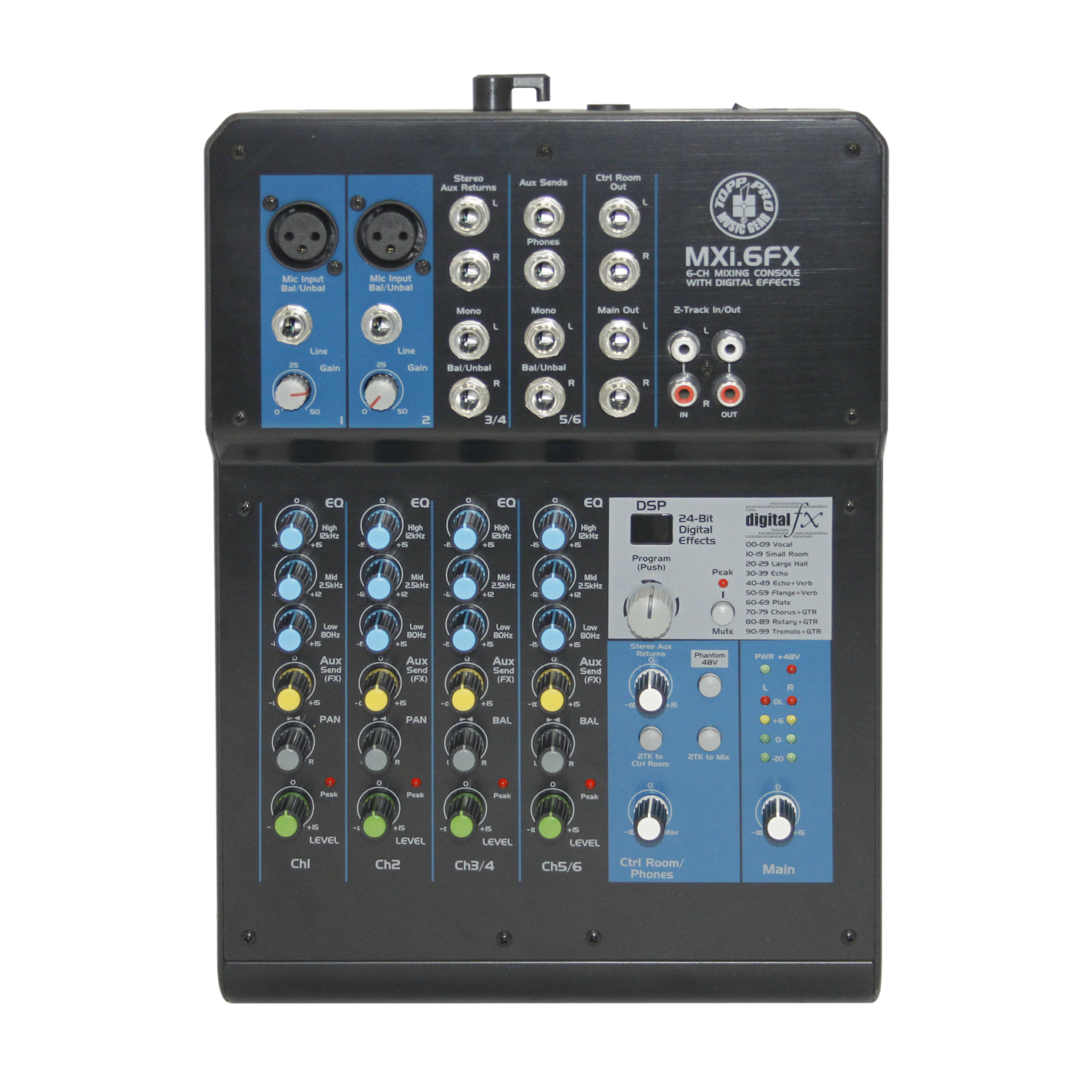

MXi.6FX

  • MXi.6FX is 6 channels compact portablemixer.
  • There is 3-band EQ on all channels, built in 24-bit DSP effect with 100 presets
MXi.6FX



  • 2 mono inputs  with gold plated XLR and Balanced TRS jack
  • 2  stereo inputs with Balanced TRS jack
  • GAIN control and +48V phantom power for mono inputs
  • 3-band EQ on all mono channels and stereo channels
  • Built in 24-bit DSP effect with 100 presets

  • Monitoring Peak LED in each channel
  • 2-Track IN/OUT with discrete switches for routing to Control Room and to Main Mix
  • 1 POST-fader AUX send for effect sends can be changed in PRE-fader for

Specification

MXi.6FX MIXING CONSOLE

Microphone input
electronically balanced, discrete input configuration
Frequency response
10 Hz to 55 kHz,+/-3dB
Distortion (THD & N)
0.005% at +4 dBu, 1 kHz
Gain range
0 dB to 50 dB (MIC)
SNR (Signal to Noise Ratio)
115 dB
Line input
electronically balanced
Frequency response
10 Hz to 55 kHz,+/-3 dB
Distortion (THD & N)
0.005% at +4 dBu, 1 kHz
Line input
Balanced
Frequency response
10 Hz to 55 kHz,+/-3 dB
Distortion(THD & N)
0.005% at +4 dBu, 1 kHz

Microphone Input
1.4 k Ohms
All Other Input
10k Ohms or Greater
Tape Out
1k 0hms
All Other Outputs
120 Ohms

Hi shelving
+/-15 dB @12 kHz
Mid bell
+/-12 dB@2.5 kHz
Low shelving
+/- 15 dB @ 80 Hz

Display
Two 7-segment display and Mute/ Peak LED Indicator
Type of effects
VOCAL,SMALL ROOM,LARGE HALL,ECHO,ECHO+VERB, FLANGE+VERB,PLATE,CHORUS+GTR, ROTARY+GTR,TREMOLO+GTR
Presets
100
Controls
100-Position PRESET Selector and Mute Switch

Noise(Bus Noise)
Fader 0dB,Channels muted:-100dBr(ref:+4dBu) Fader 0dB,All Input Channels Assigned And Set To UNITY Gain:-90dBr(ref:+4dBu)
Max Output
+22 dBu Unbalanced,1/4" Jacks
AUX Sends max out
+22 dBu
AUX Returns gain range
∞ to +15 dB

Dimension(WxDxH)
185 mm x 230 mm x 35/55 mm
Net weight
1.45 Kg (3.09 lb)
Shipping weight
2.7 Kg (5.95 lb)
