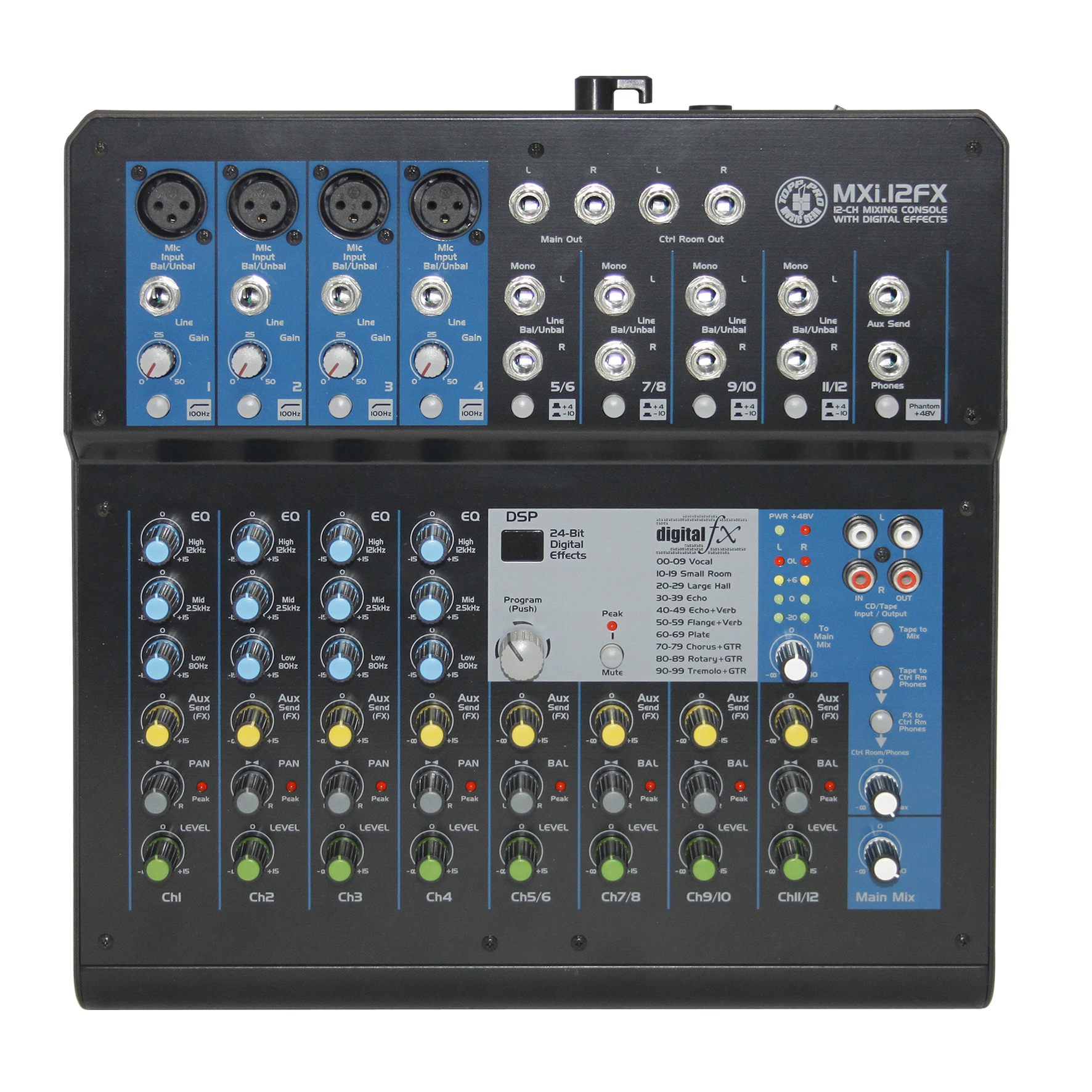

MXi.12FX

  • MXi.12FX is 12 channels compact portablemixer.
  • There is 3-band EQ on all mono channels, PAD level control on all stereo channel,  built in 24-bit DSP effect with 100 presets




MXi.12FX



  • 4 mono inputs  with gold plated XLR and Balanced TRS jack
  • 4  stereo inputs with Balanced TRS jack
  • GAIN control and +48V phantom power plus 75Hz low cut filter for mono inputs
  • 2-Track IN/OUT with discrete switches for routing to Control Room and to Main Mix

  • PAD level control on all stereo channel
  • 1 POST-fader AUX send for effect sends can be changed in PRE-fader for monitoring Peak LED in each channel
  • 3-band EQ on all mono channels
  • Built in 24-bit DSP effect with 100 presets

Specification

Mic Input to any Output
(Gain @ 0 dB,Rated output level)
20 Hz to 50 kHz(0,-1dB)
20 Hz to 130 kHz(0,-3dB)

Mic Input to MAIN Output(Gain @0 dB, Rated output level @ 20 Hz-20 kHz bandwidth)
0.003%(A-weighted)

Input: Channel INPUT MIC(Rs =150Ω, Gain @ Max.,20 Hz-20 kHz bandwidth)
-119dBu(A-weighted)

Mic in to Insert Send out (Gain @ Max.,@ 1kHz)
60dB

Mono Channel
MIC:0 to 48d8,LNE:-33 to +15dB
Stereo Channel
LINE:-8 to +6dB

Main Mix knob/fader @-∞
-87dBu(A-weighted)
Channel Level knob/fader@-∞
-85dBu(A-weighted)

Main,Aux, Control Room output
(all knob/fader @ 0 dBu,1 kHz)
0dBu

Main,Aux, Control Room output(all knob/fader@0 dBu,1 kHz,22 Hz-22 kHz Filter,THD@1%)
+20dBu

Mono Channel MIC INPUT→
MAIN OUT(1/4* TRS Unbalanced)
74dBu
Mono Channel MIC INPUT→
PHONES(1/4" TRS Stereo)
84dBu
Mono Channel MIC INPUT→
AUX SEND(1/4" TRS Unbalanced)
79dBu
Mono Channel MIC INPUT→
TAPE OUT(RCA)
74dBu
Mono Channel LINE INPUT→
MAIN OUT(1/4" TRS Unbalanced)
59dBu
Stereo Channel LINE INPUT→
MAIN OUT(1/4" TRS Unbalanced)
33dBu
TAPE INPUT→
MAIN OUT(1/4" TRS Unbalanced)
10dBu

MAIN OUT(all knob/fader @ 0 dBu, 22 Hz-22kHz Filter,Gain @ unity)
Main Mix knob/fader @-∞
Channel Level knob/fader @-∞
-106dBu(A-weighted)
Main Mix knob/fader @0dB,
Channel Level knob/fader @-∞
-95dBu(A-weighted)
Main Mix knob/fader @ 0dB,
Channel Level knob/fader @0dB
-93dBu(A-weighted)

Channel1-4
100Hz,18 dB/oct

High
±15 dB @12 kHz
Mid
±12 dB @2.5 kHz
Low
±15 dB @80 Hz

Presets
100
Controls
100-Position PRESET Technical Specification
Display
Two 7-segment display and Mute/Peak LED Indicator
Type of effects
VOCAL,SMALL ROOM,LARGE HALL,ECHO,ECHO+VERB,FLANGE+VERB,PLATE,CHORUS+GTR,ROTARY+GTR,TREMOLO+GTR

Channel1-12
+17dBu
Digital Effect(AUX send)
+11dBu
VU Meters
+20dBu

Main Left and Right (4-segment)
Clip (+20),+6,0,-20(0 LED=0 dBu)

Microphone Input
2.6k Ohms
Line Input
10k Ohms
CD/Tape Input
22k Ohms
Main Outputs
120 Ohms
Ctrl Room,Aux Sends
120 Ohms
Tape Output
1K Ohms
Phones Outputs
25 0hms

Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced 1=GND,2=HOT,3=COLD)
+48V

Adaptor
AC18V,1000mA

Dimension (L*W*H)
292.9*290.5*77mm
Weight
Net:1.95kg
