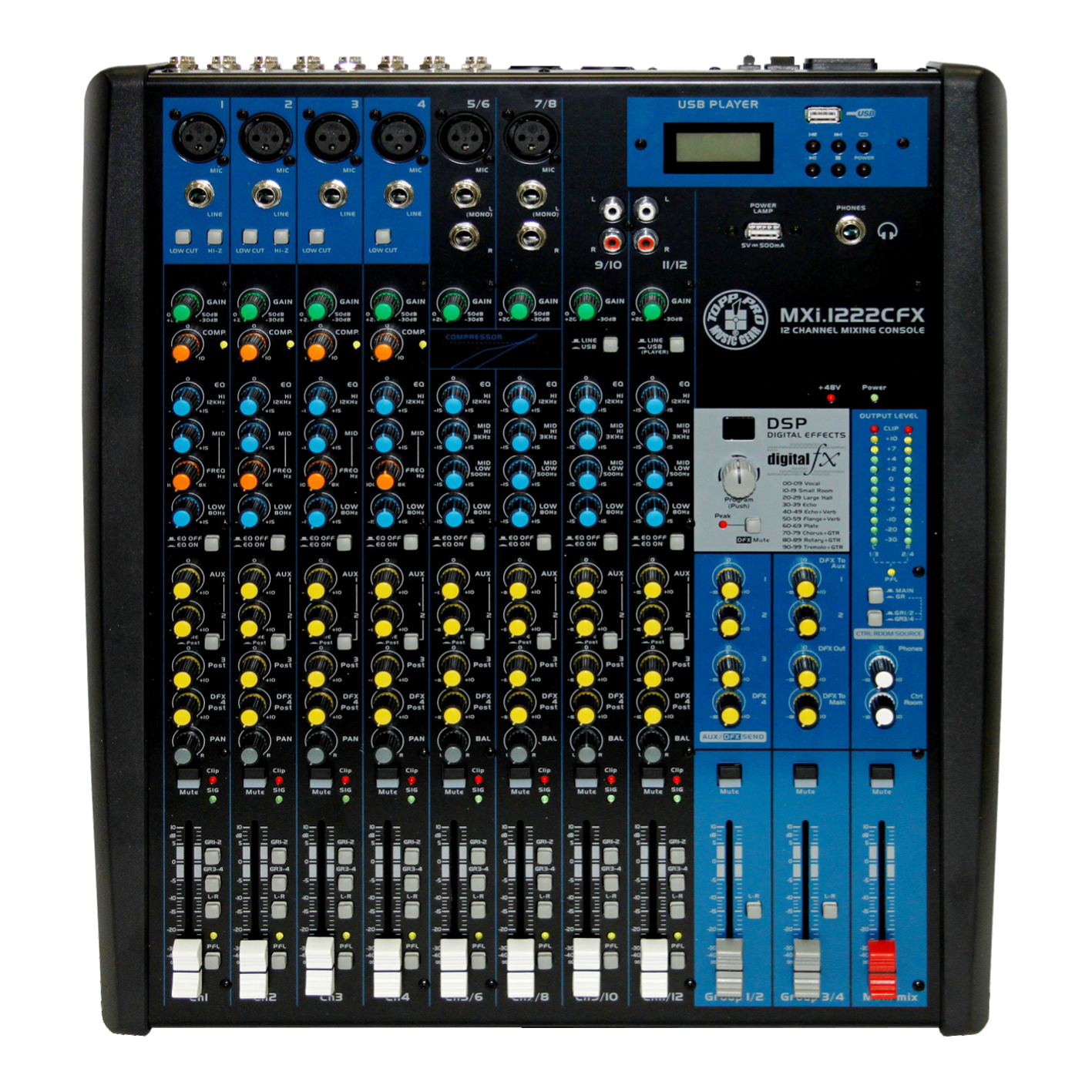

MXi.1222CFX

The MXi.1222CFX is packed with features that can not be found in other consoles of its size: 4 mono which can provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt; 4 stereo input channels; 3-band EQ with sweepable MID on mono inputs; 4-band EQ on stereo inputs, 4 auxiliary control, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix

MXi.1222CFX



  • 4 MIC Input Channels with XLRs and balanced Line Inputs
  • 4 Compressors control
  • Low Cut for each MIC Input
  • 2 Stereo Input Channels with mono XLRs Input and TRS Jacks
  • 2 Stereo Input Channels with RCA Jacks
  • 3-band EQ with sweepable MID and Peak LEDs on each Mono channels. 4-band EQ and Peak LEDs on Stereo channels
  • AUX 1 & AUX 2 Send POST/PRE per channel for monitoring or external effects
  • AUX 3 & DFX Send POST Fader for internal effects or monitoring

  • PFL/Mute function for each channels, 60mm Fader for level control
  • GR1/2, GR3/4 and Main L-R bus assign for each channel
  • Built in 24-bit DSP effect with 100 presets
  • Assembled MP3 Player
  • Built-in stereo USB /Audio interface , record from MAIN OUT and playback to CH9/10
  • This Type B USB port can be used to connect the computer  via Type B to A connector. When it is in RECORD mode, it can connect with the MAIN MIX output; in the PLAYBACK mode, it can connect with the stereo channel 9/10

Specification

Microphone input
XLR with balanced
Freguency response
10Hz to 55KHz,+/-3dB
Distortion(THD+N)
<0.03% at+0dB22Hz~22KHz A weighted
Gain range
0dB to 50dB
Max input
+21d8
LOW CUT
75Hz
SNR
<-100dBr A weighted
Phantom power
+48V with switch control
Line input
1/4" TRS with balanced
Frequency response
10Hz to 55KHz,+/-3dB
Distortion(THD+N)
<0.03%at +0dB22Hz-22KHz A weighted
Senstvity range
+20d8--30dB
COMPRESSOR
GAIN:0~9dB
THRESHOLD:20dB--->5dB>

Mic input
XLR with balanced
Lineinput
1/4TRS with balanced
Freguency response
10Hz 1o 55KHz.+/-3dB
Distortion(THD+N)
<0.03%at+0dB,22Hz-22KHz A-weighted
Sensitivity range
+20dBu--30dBu
SNR
<-100dBr A-weighted

RCA input
RCA with un-balanced
Frequency response
10Hz to 55KHz,+/-3dB
Distortian(THD+N)
<0.03% at +0dB.22Hz-22KHz A-weighted
Sensitivity range
+20dBu--30dBu
SNR
<-100dBr A-weighted

Mono Channel
High :+/-15dB @12KHz
Mid:+/-15dB @100KHz-8KHz
Low :+/-15d8 @80Hz
Stereo Channel
High :+/-15dB @12KHz
Mid:+/-15dB @3KHz or +/-15dB @500Hz
Low :+/-15d8 @80Hz

Microphone input
1.8KΩ
All other input
10KΩ or greater
Tape out
1KΩ
All other out
120Ω

A/D and D/A converters
24bit
Type of effects
Vocal, Small Room, Large Hall,Echo,Echo+Verb,Flange+ Verb,
Plate, Chorus+GTR,Rotary+GTR,Tremalo+GTR
Controls
100 position preset selector(10 preseter10 variation)
Mute switch & Foot switching with LED indicator
FOOT-SW
TIP.FX / SLEEV:GND

Max. MAIN MIX output
+26dBu XLR balanced(+20dBu un-balanced)
AuX range
OFF to +10dB
Fader range
OFF to +10dB
PHONES/CONTROL-ROOM range
OFF to +10dB
Hum & Noise
<80dB @ 20Hz-22KHz A weighted, 1 channel & MAIN level.0dB, the other: Minimum
Crosstalk
<-80dB @0dB 20Hz-22KHz A weighted.MAIN level:0dB. the other minimum,

Main voltage
100-240V-50/60 Hz
Fuse
T1.25A AC250V
Rated power consumption
30W
