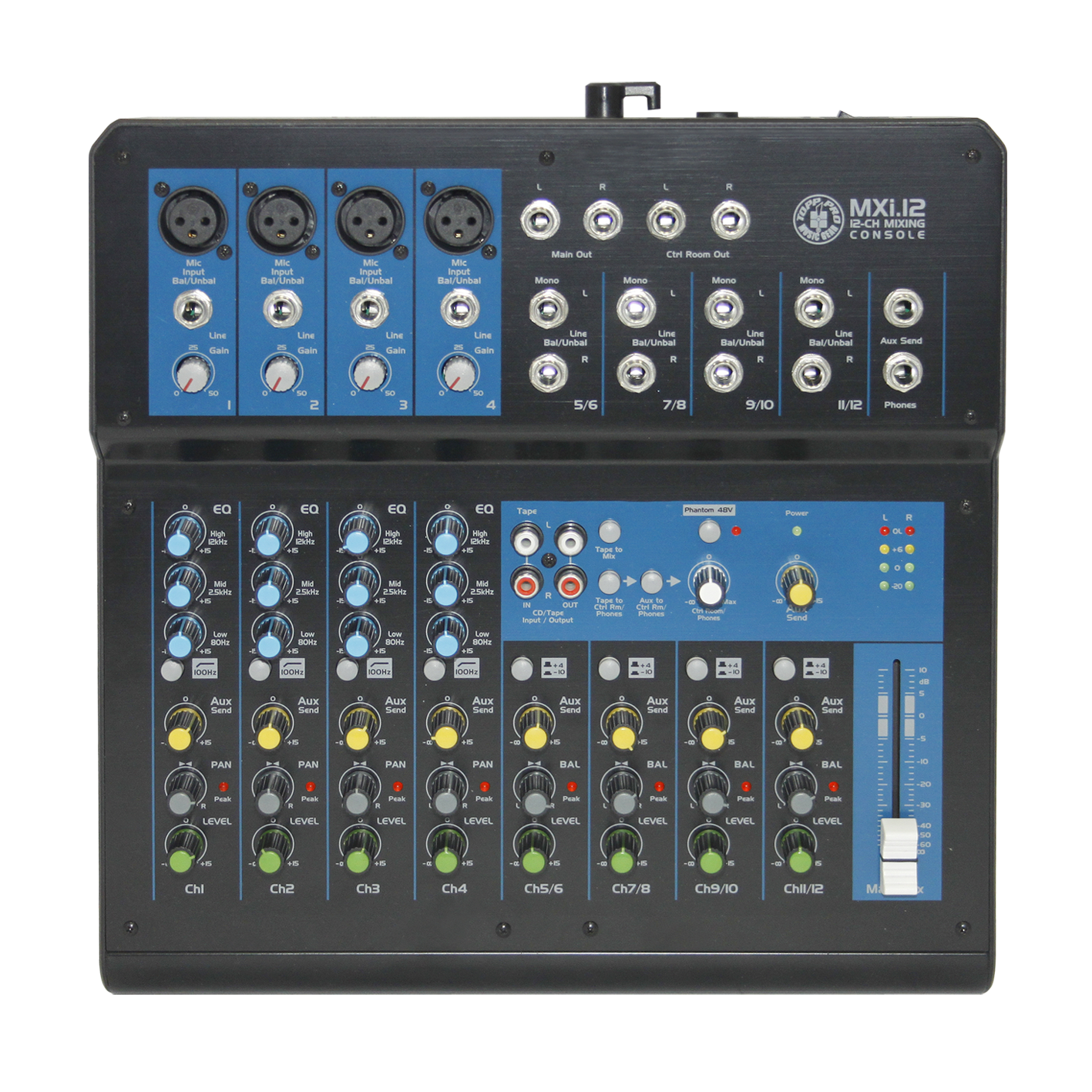

MXi.12

  • MXi.12 is 12 channels compact portablemixer.
  • There is 3-band EQ on all mono channels, PAD level control on all stereo channel, really ideal for small club gigs.




MXi.12



  • 4 mono inputs  with gold plated XLR and Balanced TRS jack
  • 4  stereo inputs with Balanced TRS jack
  • GAIN control and +48V phantom power plus 75Hz low cut filter for mono inputs
  • 3-band EQ on all mono channels

  • PAD level control on all stereo channel
  • 1 POST-fader AUX send for effect sends can be changed in PRE-fader for monitoring Peak LED in each channel
  • 2-Track IN/OUT with discrete switches for routing to Control Room and to Main Mix

Specification

MXI SERIES MIXER
MXi.12 / MXi.12USB

Mic Input to any Output(Gain @ 0dB.Rated output level)
20Hz-70kHz(0,-1dB)
20Hz-120kHz(0.-3dB)

Mic Input to MAIN Output(Gan@ 0 d8, Rated output level @20 Hz-20kHz bandwidth,A weighted)
≦0.01%

Input: Channel INPUT MIC(Rs=150Ω,Gain Max., 20 Hz-20 kHz bandwidth)
-117dBu

Mic in to main out(Gain @Max.@ 1 kHz)
60dB

Mono Channel
MIC:0 to 50dB
LINE:-35 to+15dB
Stereo Channel
LINEP: -9-+5dB

Main Mix knob/fader(A-weighted)
-81dBu
Channel Level knob/fader@ -∞ (A-weighted)
-82dBu

Main,Aux, Control Room output(all knob/fader @ 0 dBu,1 kHz)
0dBu

Main,Aux, Control Room output (all knob/fader @ 0 dBu,1 kHz,22 Hz-22 kHz Filter,THD @1%)
+22dBu

Mono Channel MIC INPUT→
MAIN OUT(1/4"TRS Unbalanced)
75dBu
Mono Channel MIC INPUT→
CTRL RM/PHONES(1/4' TRS 5tereo)
85dBu
Mono Channel MIC INPUT→
AUX SEND OUT(1/4"TRS Unbalanced)
95dBu
Mono Channel MIC INPUT→
TAPE OUT(RCA)
75dBu
Mono Channel LINE INPUT→
MAIN OUT(1/4" TRS Unbalanced)
60dBu
Stereo Channel LINE INPUT→
MAIN OUT(1/4* TRS Unbalanced)
20dBu
TAPE INPUT→
MAIN OUT(1/4" TRS Unbalanced)
15dBu
AUX RETURN INPUT→
MAIN OUT(1/4"TRS Unbalanced)
—

Main Mix knob/fader @-∞, Channel Level knob/fader @-∞,A-weighted
-106dBu
Main Mix knob/fader @ 0dB, Channel Level knob/fader @-∞,A-weighted
-92dBu
Main Mix knob/fader @ 0dB, Channel Level knob/fader @ 0dB,A-weighted
-91dBu

Mono Channel
-7 dBu@75 Hz

Mono Channel
High: ±15dB @12 kHz
Mid: ±15dB @2.5 kHz
±15dB @80 Hz
Stereo channels
—

Channels
Channel1-12:+17dBu
VU Meters
+19dBu

Main Left and Right (4-segment)
Clip (+19), +6,0,-20 (0 LED=0 dBu)

Microphone Input
2.6k Ohms
Line Input
10k 0hms
CD/Tape Input
20k Ohms
Main Outputs
120 Ohms
Ctrl Room,Aux Sends
120 Ohms
Tape Output
1K Ohms
Phones Outputs
120 Ohms

USB Interface
USB 2.0 full speed compliant
ADC & DAC
16-Bit Delta-Sigma,44.1kHzSampling Rates
Operating system
Windows 2000,XP or higher,Mac 0S 9.0.4or higher,10.X or higher

Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced 1=GND,2=HOT,3=COLD)
+48V

Adaptor
AC18V,1000mA

ALL LOAD
12W

Dimension(L*W*H)
292 9*290.5*77mm
Weight
Net:1.90kg
Weight(with USB)
Net:1.92kg
