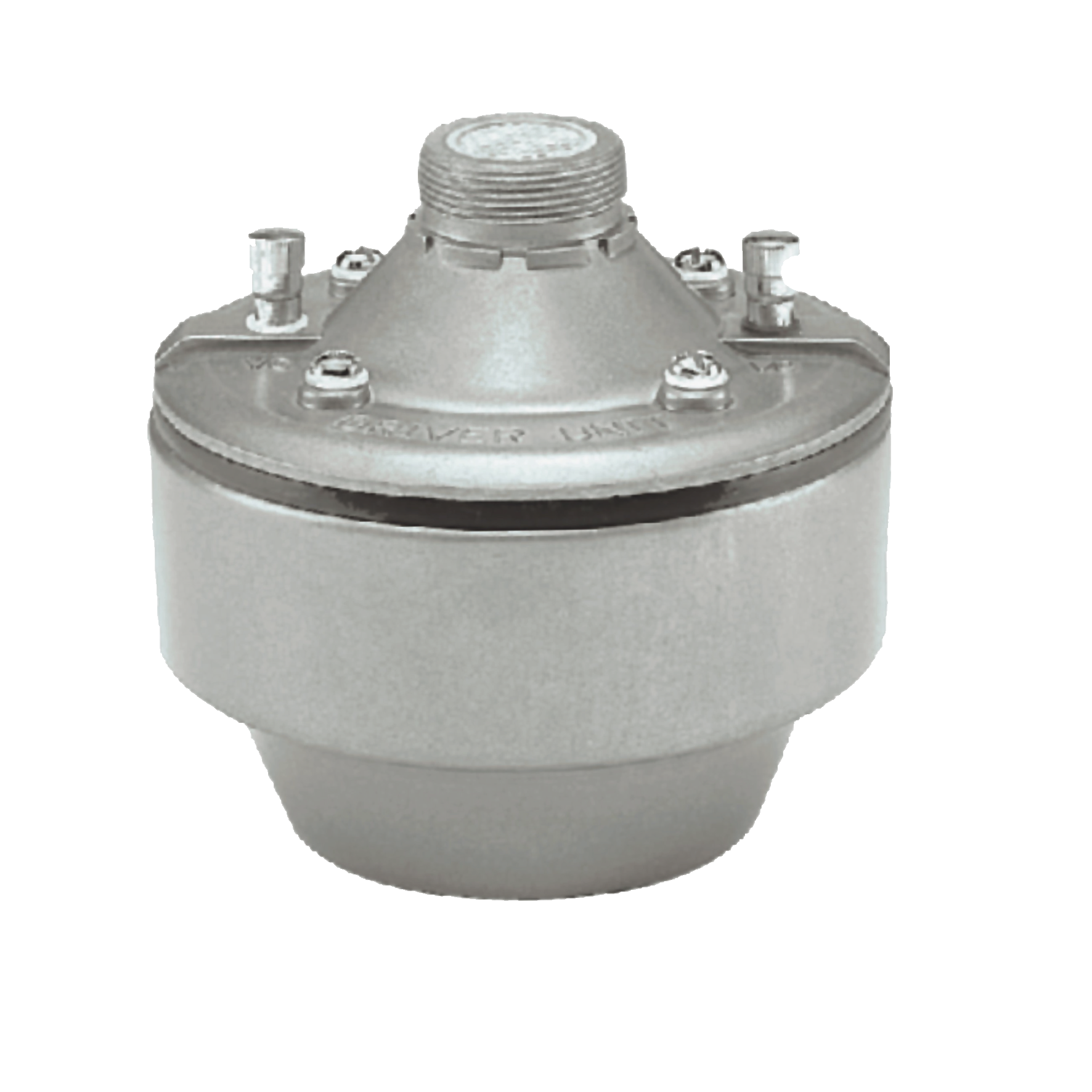

TU-35 / TU-60 / TU-100

  • The driver unit is in die-cast aluminum (for TU-series), and durable plastic base / aluminum cover (for MT-series)
  • Pantone No.: Cool gray 6C
  • Models are suited for application with SHOW horn speakers or as replacement drivers for 1 3/8"-18 male thread horns
  • High power and high effect. It provides highly articulate sound in any environment
TU-35 / TU-60 / TU-100

The TU series horn head unit is used with TH-16"~20" horn tube. It is a fully waterproof series product with aluminum alloy casting body. The ferrite magnet is used as an external magnetic type (applicable to TU-35/60/100). The horn head design is used with TH series horn horn tube. It has passed IP66 waterproof certification and has high sensitivity, long sound diffusion distance, high efficiency, and clear sound range performance.

Widely used in public places such as hotels, restaurants, airports, office buildings, churches, ships, etc., PA speaker products can be used as part of the voice alarm system to provide alarms to people in or near the building where a fire emergency occurs, and enable these people to take pre-determined measures in the evacuation plan.

Aluminum alloy casting body fully waterproof (IP66) series products. It has high sensitivity, long sound diffusion distance, high efficiency, and clear sound range performance;



Specification

TU-35
35W
TU-60
60W
TU-100
100W

TU-35
150Hz~6KHz
TU-60
150Hz~6KHz
TU-100
100Hz~10KHz

TU-35
110dB (1W/M) with TH-16
TU-60
112dB (1W/M) with TH-16
TU-100
112dB (1W/M) with TH-16

16Ω

Aluminum

TU-35
φ114×106mm (φ4.2"×4.4")
TU-60
φ114×106mm (φ4.2"×4.4")
TU-100
φ124×110mm (φ4.7"×4.8")

TU-35
1.56 kg (3.09 lbs)
TU-60
1.71 kg (3.64 lbs)
TU-100
2.02 kg (4.63 lbs)
