CS-312

Offering high intelligibility and natural music reproduction, CS columns are the perfect solution for highly reverberant environment such as churches, architectural spaces, auditoriums, railway stations and other transport terminals. Based on the line array principle, the columns provide a consistent pattern control for a superior sound quality. CS SERIES is made of plywood and is dedicated for indoor fixed installations. It is equipped with 3” full range drivers including 4 to 12 components in each box. A phoenix connector makes the connection easy to the amplification systems with rotated switch for the transformer taps selection

CS-312

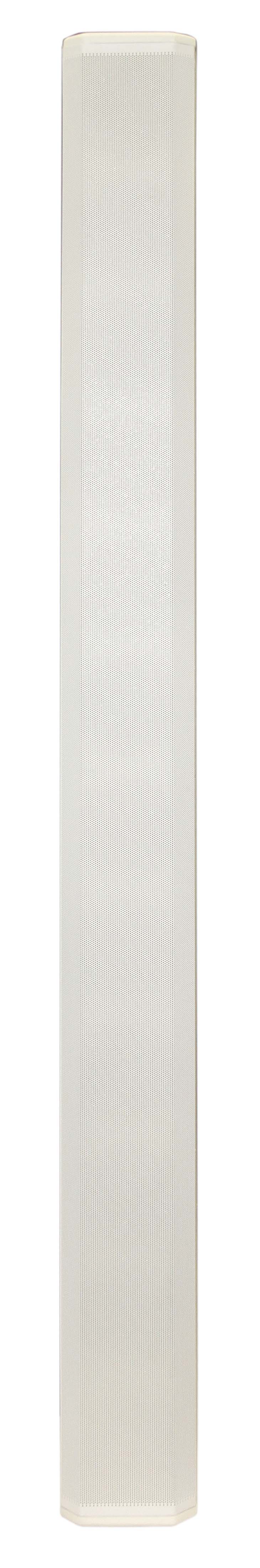

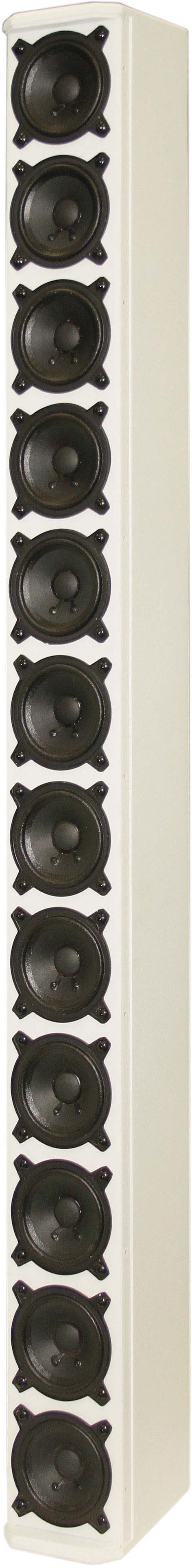

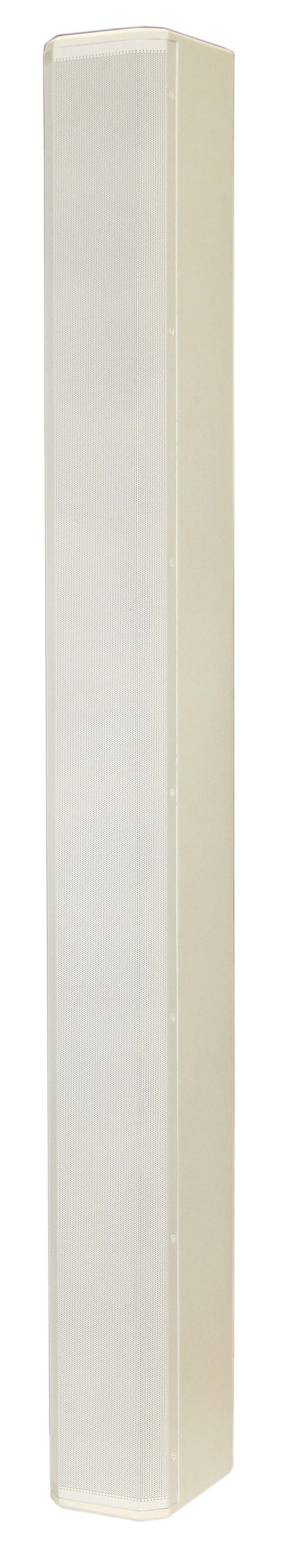

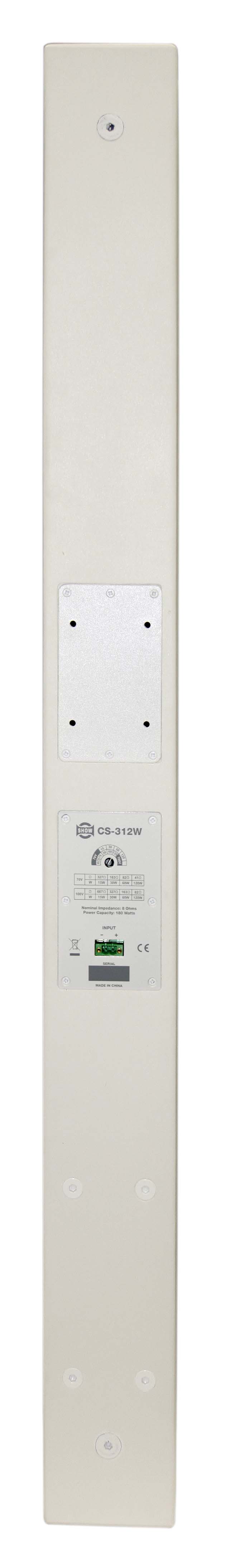

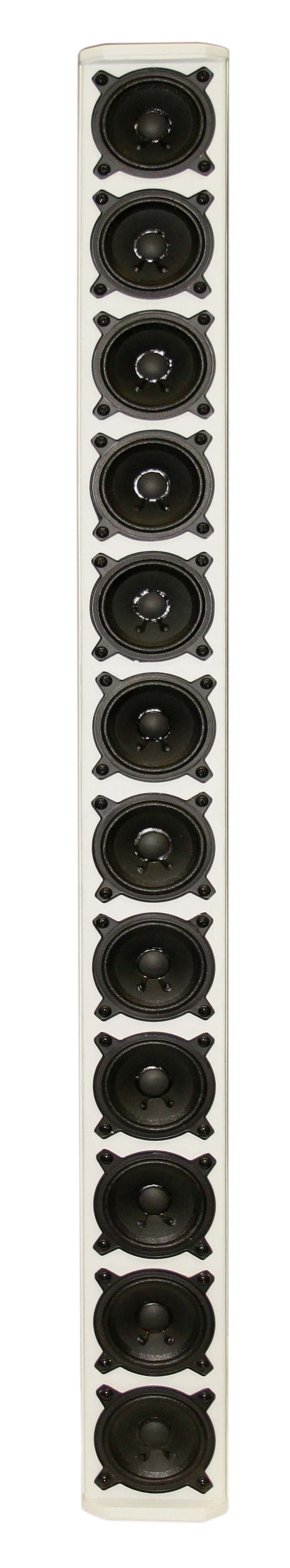

CS series are a professional linear column speaker developed by SHOW. There is a 1.0mm mesh and 0.8mm thick iron mesh on the front of the speaker. It can effectively prevent dust from entering the speaker, and the high-strength iron mesh can well protect the speaker unit from being damaged by external forces. The wooden box is made of full plywood, which makes the box lighter and more solid. The surface of the box is sprayed with fine sand paint, which feels more delicate. 3” full-range speaker unit, with straight paper body and cloth suspended edge cone. The speaker vibration system is lightweight and highly sensitive. The sound system uses a power transformer to switch the system power, which can effectively protect the speaker. To prevent high-power input signals from damaging the speaker, multiple units can be used in parallel without causing low impedance and damaging the PA amplifier. The screws of the fixing bracket are locked on the fixing plate inside the wooden box. The fixing plate is a 3mm thick iron plate. The large area of iron plate can effectively decompose the tension of the bracket, and the locking screws are M8, which can withstand huge tension.



Specification

CS-304
4x3inch
CS-308
8 x 3inch
CS-312
12x 3inch

Column Array Speaker

70V/100V

CS-304
5W /10W /20W / 40W
CS-308
7.5W/15W/30W /60W
CS-312
15W /30W /60W/ 120W

CS-304
60W RMS,120W Program
CS-308
120W RMS, 240W Program
CS-312
180W RMS, 360W Program

CS-304
70V 1000Ω / 500Ω / 250Ω / 125Ω
100V 2000Ω / 1000Ω / 500Ω / 250Ω
CS-308
70V 667Ω / 333Ω / 167Ω / 83Ω
100V 1333Ω / 667Q / 333Ω / 167Ω
CS-312
70V 333Ω / 167Ω / 83Ω / 41Ω
100V 667Ω / 333Q / 167Ω / 83Ω

CS-304
93dB
CS-308
95dB
CS-312
99dB

CS-304
114dB (calculated by 8ohms )
CS-308
119dB (calculated by 8ohms )
CS-312
125dB (calculated by 8ohms )

180Hz-18KHz

CS-304
4x3" full range speaker,20mm Voice Coil
CS-308
8x3" full range speaker,20mm Voice Coil
CS-312
12x3" full range speaker,20mm Voice Coil

CS-304
90°x 20° @ 4 kHz
CS-308
90°x 30°@ 4kHz
CS-312
90°x60°@ 4 kHz

Phoenix

Plywood cabiner,resistant paint,0.8mm metal grille

CS-304
6xM8 Points For Mounting
CS-308
6xM8 Points For Mounting
CS-312
12xM8 Points For Mounting

CS-304
378mm(14.8")x98mm(3.9")x130mm(5.1")
CS-308
730mm(28.8")x98mm(3.9")x130mm(5.1")
CS-312
1082mm(42.6")x98mm(3.9")x142mm(5.6")

CS-304
4.4KG/9.7Lbs
CS-308
7.5KG/16.5Lbs
CS-312
12.2KG/26.8Lbs
