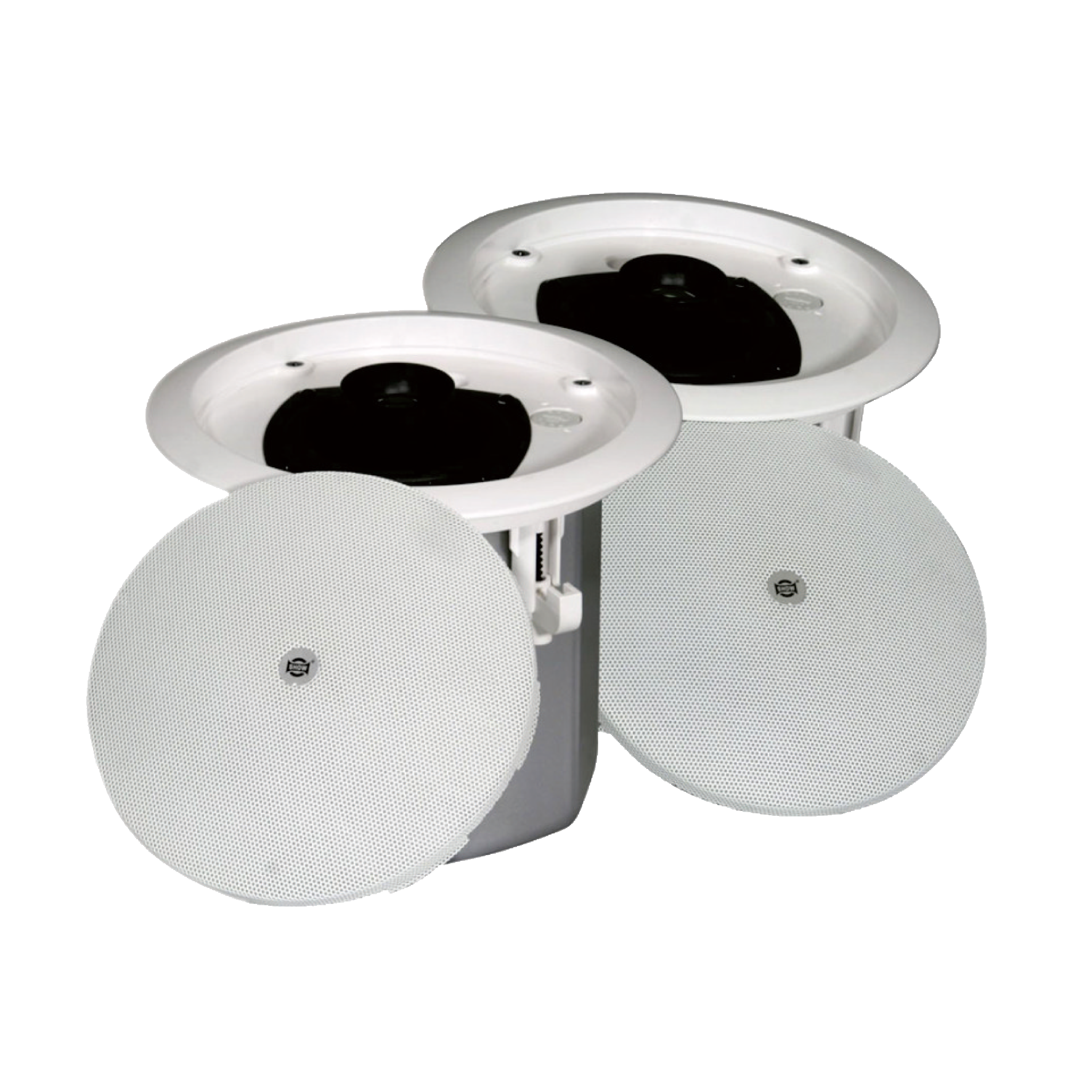

CSL-150 / CSL-150CV

  • Input power: Rated 40W / Max 60W
  • Sound pressure level: 88dB;
  • Input voltage: 70V / 100V;
  • Frequency response: 100Hz~20KHz
CSL-150 / CSL-150CV

CSL-150 &CSL-150CV make use of the innovative design and materials to supply the ceiling loudspeaker with excellent performance. The CSL-50 is a large indoor ceiling loudspeaker, which contains a coaxial 6.5" woofer and 3/4" titanium-coated tweeter. It provides the high fidelity full-range sound over an extremely wide coverage area, you can randomly select the output power 70V or 100V by the tap selector on the panel of CSL-150CV according to your requirement.



Specification

CSL-150 / CSL-150CV
6.5" (161 mm) woofer speaker

CSL-150 / CSL-150CV
Rated 40W / Max 60W

CSL-150
60W
16Ω
CSL-150CV
7.5W / 15W / 30W / 60W
656Ω / 328Ω / 164Ω / 82Ω

CSL-150 / CSL-150CV
70V / 100V

CSL-150
16Ω
CSL-150CV
656Ω/328Ω/164Ω/80Ω

CSL-150 / CSL-150CV
100Hz~20KHz

CSL-150
88dB (1M/W)
CSL-150CV
92dB (1M/W)

CSL-150 / CSL-150CV

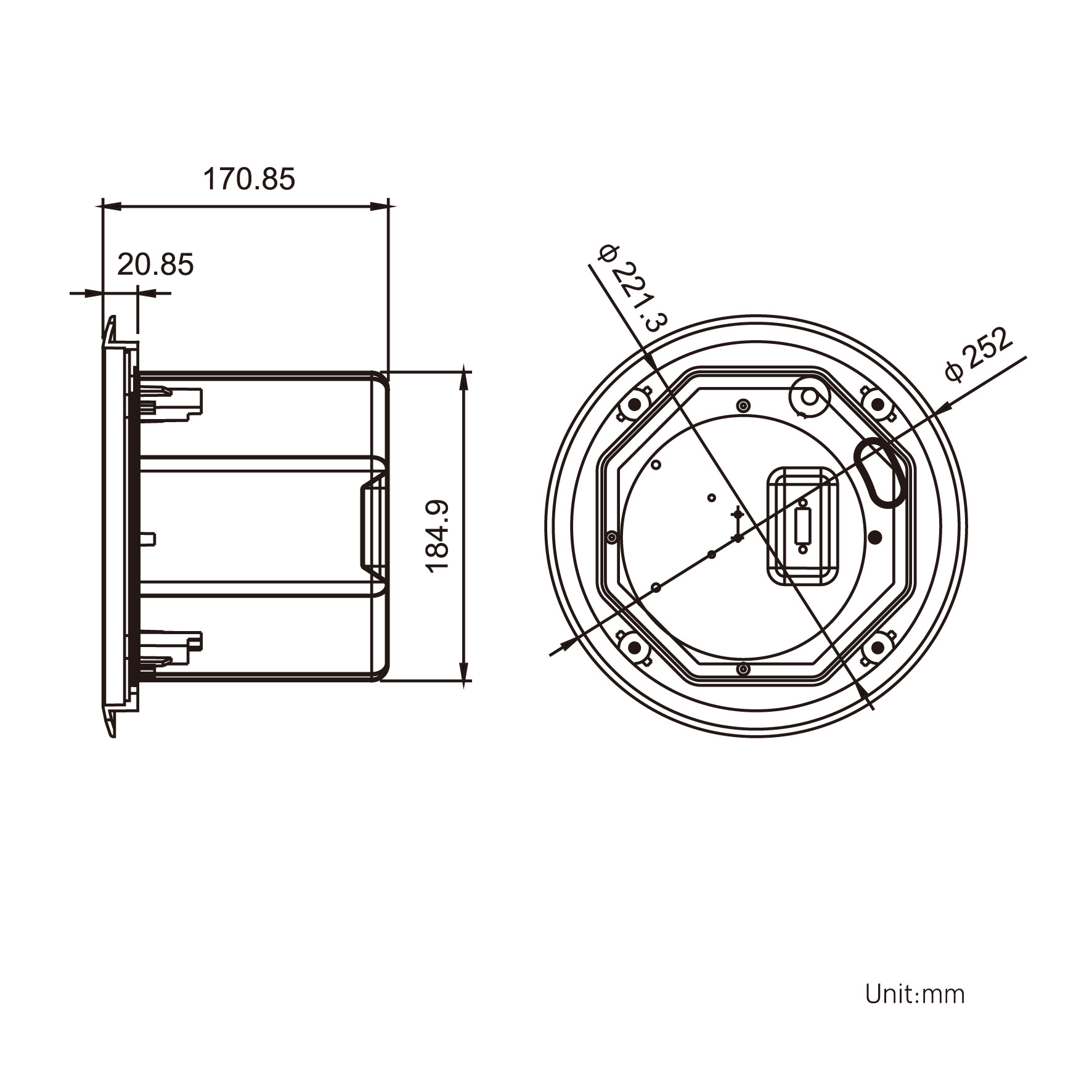

φ252×210 mm (φ9.9" x 8.3")

CSL-150
3.4 kg (7.5 lbs)
CSL-150CV
6.3 kg (13.89 lbs)
