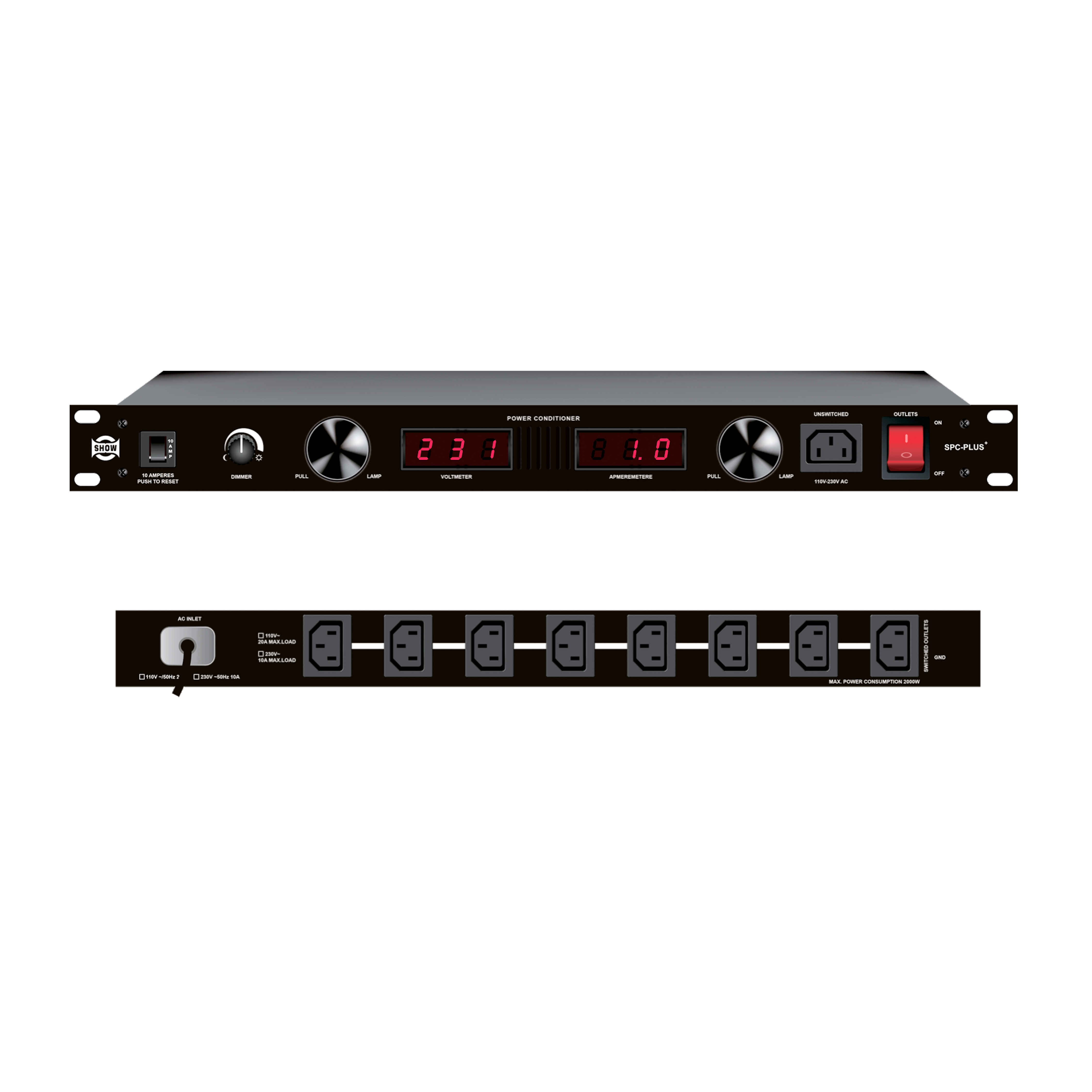

SPC-PLUS+

Eight switched,rear panel,IEC outlets that allow you to power an entire rack's worth of gear from one source.In addition,an unswitched front panel convenience outlet is provided for temporary power needs(such as plugging in a guitar amplifier,soldering iron,etc.).
3-point surge protection,spike clamping protection and RF filtering enables all connected equipment to operate with maximum efficiency and minimal noise
Front panel,re-settable,10 amp circuit breaker protects all connected gear.
19"format/1RU
An independent dedicated switch with status light for powering the rear panel switched outlets

Specification

8 switched , 1 unswitched

max, 10 amps (circuit breaker protected)

230V

hot to neutral, hot to ground, and neutral to ground

max. 340V AC

1 nanosecond

6,000 amps (8 x 20 s pulse)

70 jouies per leg

>20dB, 1.5MHz-200MHz

permanently attached, grounding type plug

100,000 h (typical)

44 x 483 x 190 mm (1.73" x 19.02" x 7.5")
