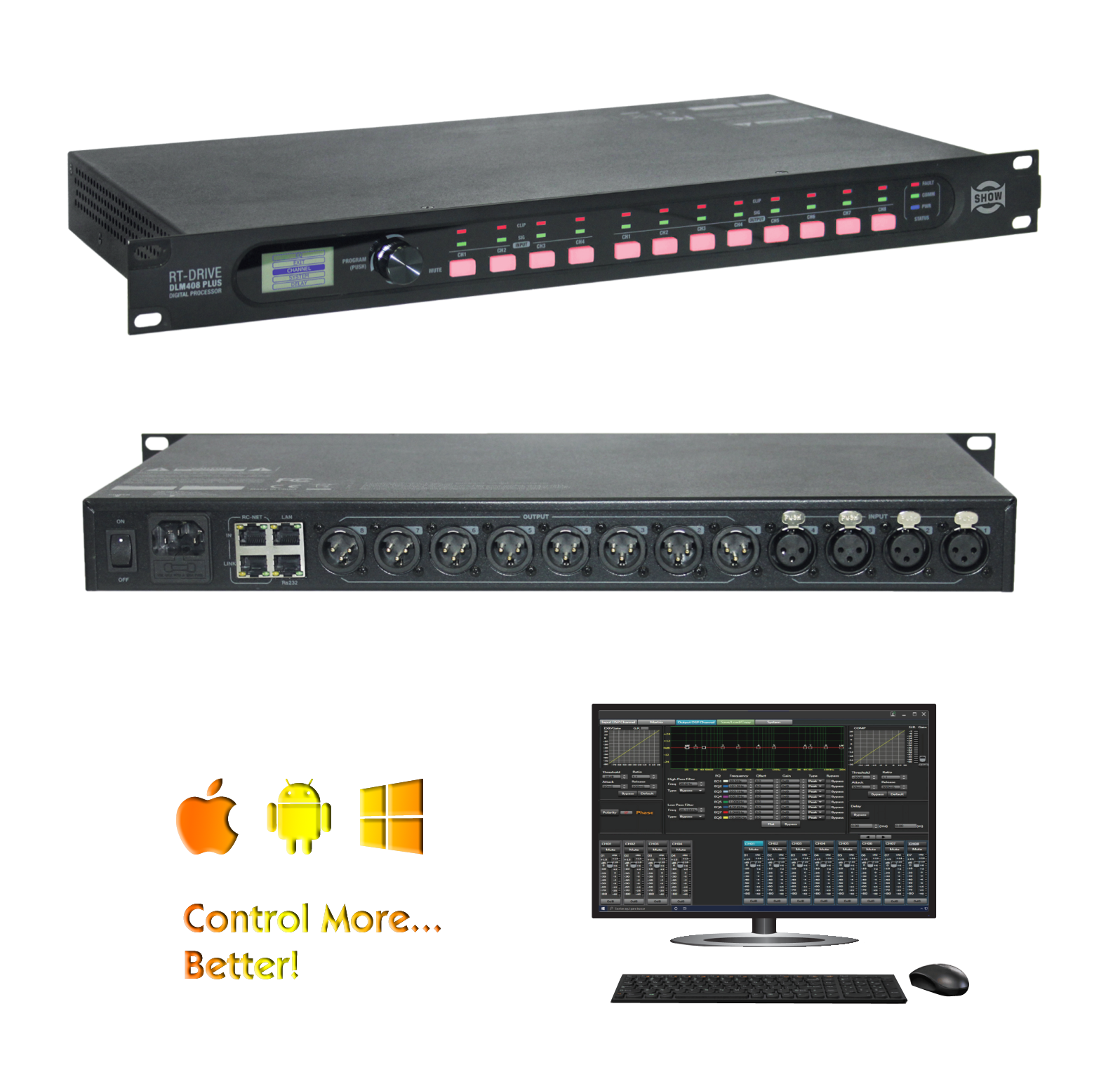

DLM 408 PLUS

DLM-408PLUS is an audio matrix processor, with 4 input and 8 output channels, with high-definition LCD to display current status at real time, with network port to expand network devices. It is available for large-scale place, such as theater, broadcast hall, gymnasium and conference center and so on

DLM 408 PLUS



  • 4 input and 8 output
  • Input and output channels support 4 * 8 matrix combination settings
  • Match with PC and App operation software

  • All input channels are equipped with Gain/ Crossover/ PHASE/ PEQ/ DELAY/ COMPRESSOR function
  • All output channels are equipped with GATE/ EXP/ CROSSOVER/ PEQ/ DELAY/ COMPRESSOR function

Specification

Electronically balanced

20Hz-20KHz at 0dBu +1/3dB

<0.01% at 0dBu 1KHz

+20dBu

Manimum Outout level
+20dBu

Input to Output
-90dBu

Threshold Range
80dBu-+20d8

Threshold Range
30dBu-+20dB

Low (lowPass or Lowshelf)
19.7Hz-20.1KHz+/-18dB

10Kohm

0~45℃

100-240V-5050H2
T1.6AL
30Wmax

483x265x44 (19.02”x10.43”x1.73”)
