PAD-60 / PAD-120 / PAD-240

  • Signal LED, Clip LED, Power LED
  • 1 AUX (RCA) Input volume adjustments
  • 2 Tone (Bass / Treble) volume adjustments
  • 4 MIC / LINE volume adjustments
  • 1 Master volume adjustments
  • MP3 Player+BT+FM+USB

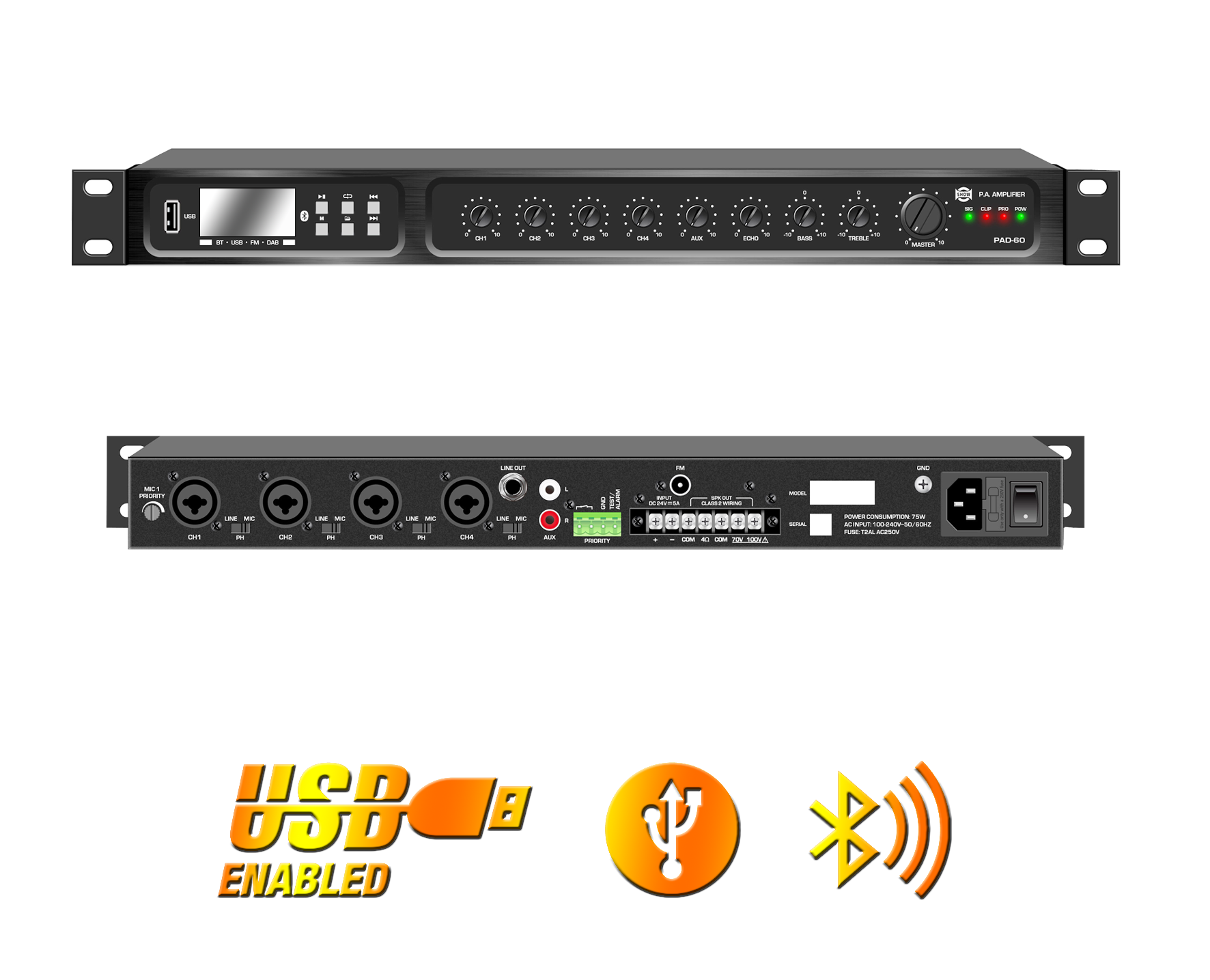

PAD-60 / PAD-120 / PAD-240

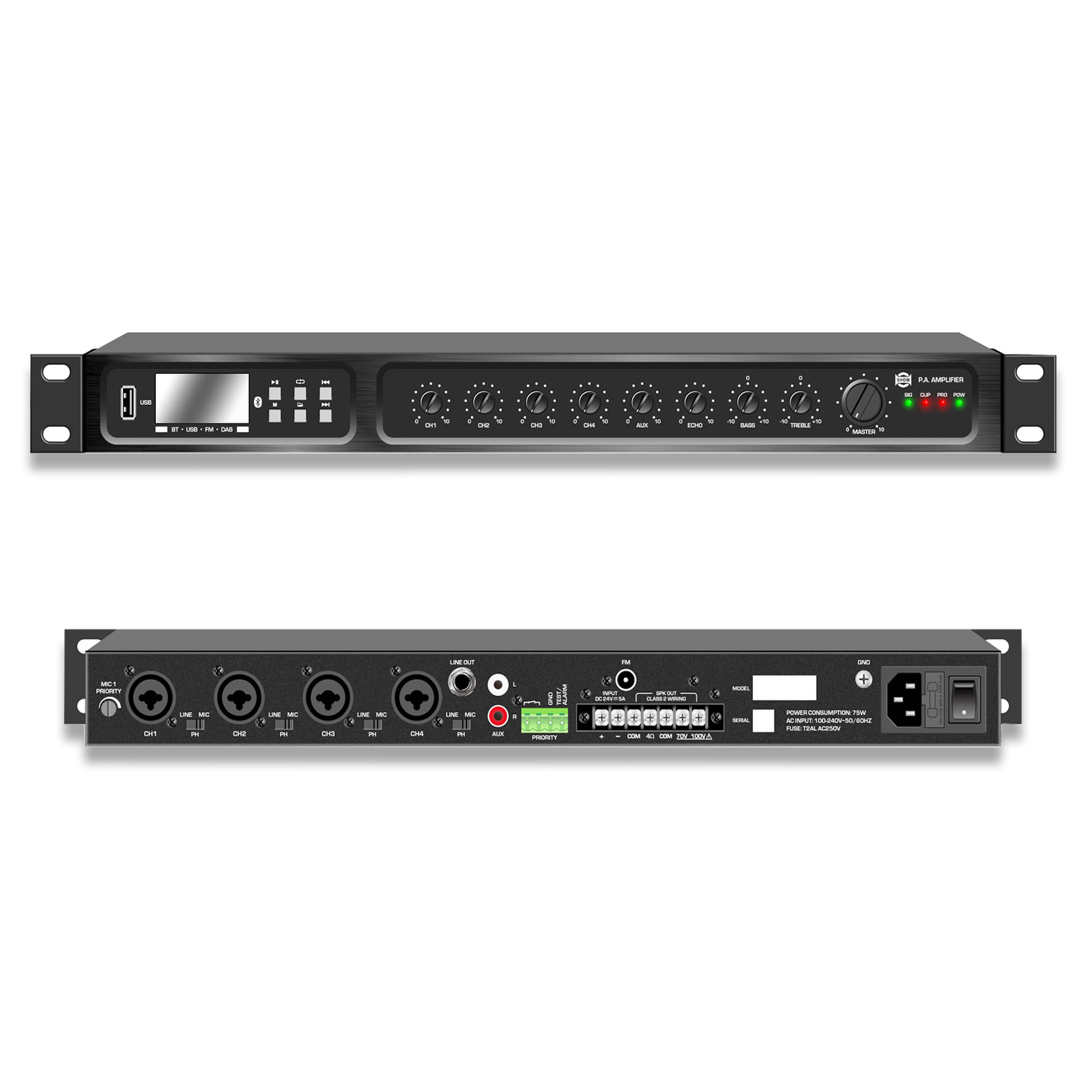

   FRONT PANEL

  • Signal LED, Clip LED, Power LED
  • 1 AUX (RCA) Input volume adjustments
  • 2 Tone (Bass / Treble) volume adjustments
  • 4 MIC / LINE volume adjustments
  • 1 Master volume adjustments
  • MP3 Player+BT+FM+USB


    REAR PANEL

  • FM antenna
  • Power Supply: AC100V~240V DC24V
  • Power switch
  • 1 Priority volume
  • 4 MIC / LINE Input, 1 AUX(RCA) Input
  • 4 MIC / PHANTOM/LINE switch
  • Priority INPUT (Test / Alarm)
  • OUTPUT: 4Ω, 70V, 100V

Specification

PAD-60
60 Watts RMS
PAD-120
120 Watts RMS
PAD-240
240 Watts RMS

PAD-60
60 Watts RMS
PAD-120
120 Watts RMS
PAD-240
240 Watts RMS

PAD-60
60 Watts RMS
PAD-120
120 Watts RMS
PAD-240
240 Watts RMS

MIC -52 dBv balanced
LINE -10 dBv balanced
AUX -10 dBv unbalanced
Phantom power supply:-52dBv /18 V balanced

80Hz-16KHz(±3dB)

MIC:≥65dB
LINE:≥75dB
AUX:≥75dB

≤1%@1/8RMS

BASS:±10dB(a100Hz);TREBLE:±10dB(a1KHz)

4Ω/70V/100V

Class D switching power supply

AC100-240V,50/60Hz DC 24V

Short circuit Open circuit/Thermal Limiter/Ultrasonic and radio frequency

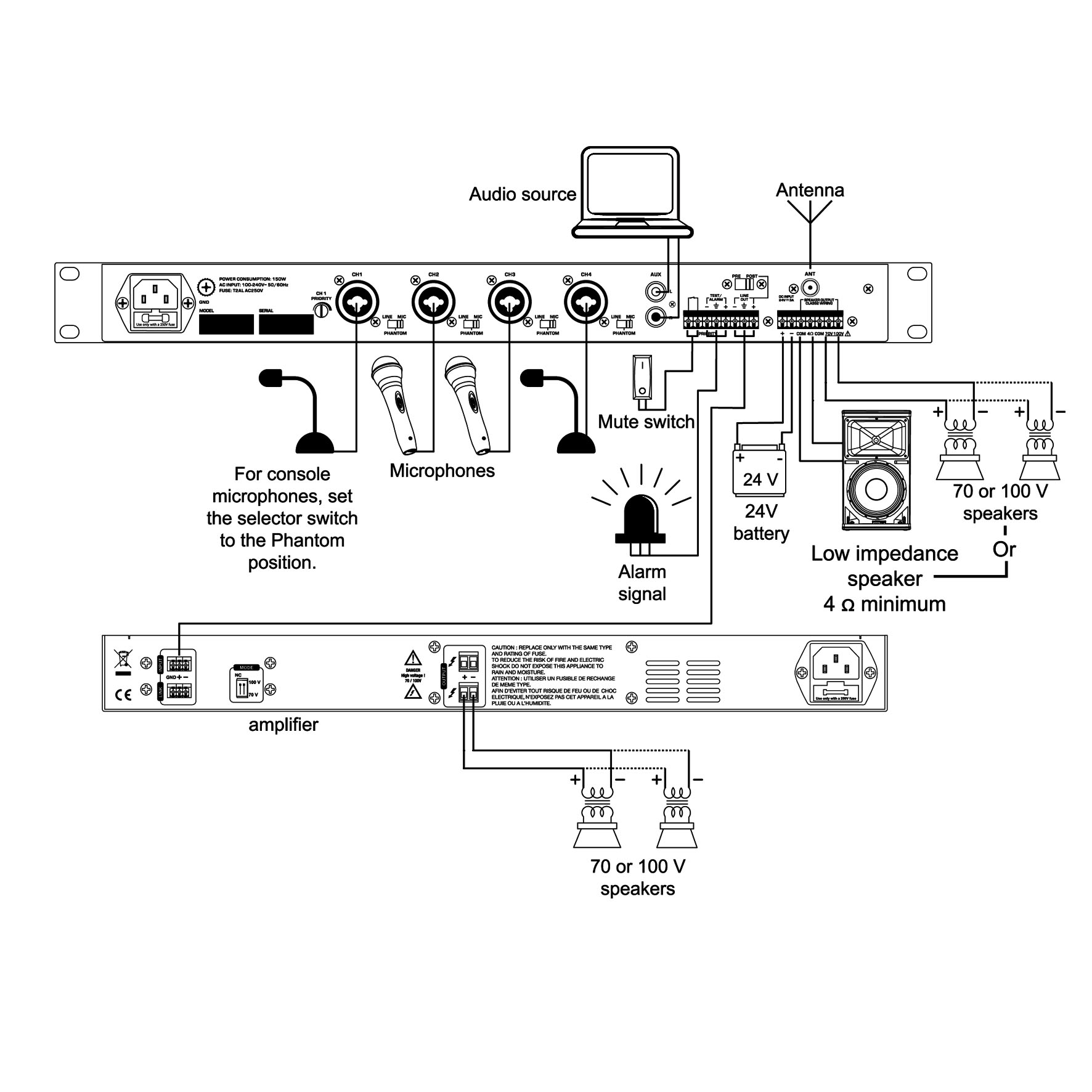

4 MIC LINE combo connectors
1 AUX input on RCA
1 TEST/ALARM input on Euroblock connector Connections
1 LINE OUT on Euroblock connector
One coaxial plug for antenna
4 ohm or 70/100V output on Euroblock connector
24V input on Euroblock connector

Setting levels for CH 1,CH 2,CH 3 and CH 4 inputs
Player level adjustment
AUX input level adjustment
Bass and treble equalization
CH 1 input priority level adjustment
General level adjustment

Fan with thermo regulation

483×281×44mm

PAD-60
4.1Kg
PAD-120
4.9Kg
PAD-240
5.6Kg
