PAX SERIES

  • 2 Tones(BASS/TREBLE);5 Input volume controls;1 MASTER;
  • MP3 player with SD/USB interface
  • Impedance output is 4Q;constant voltage output is 70V,100V;output level display;
  • 4MIC(XLR)inputs;MIC / LINE / PHANTOM exchange SW;1 AUX(RCA)INPUT;
  • ECHO Function;     1 HU rack 19"size;
  • High current switching power with class-D amplifier;
PAX SERIES

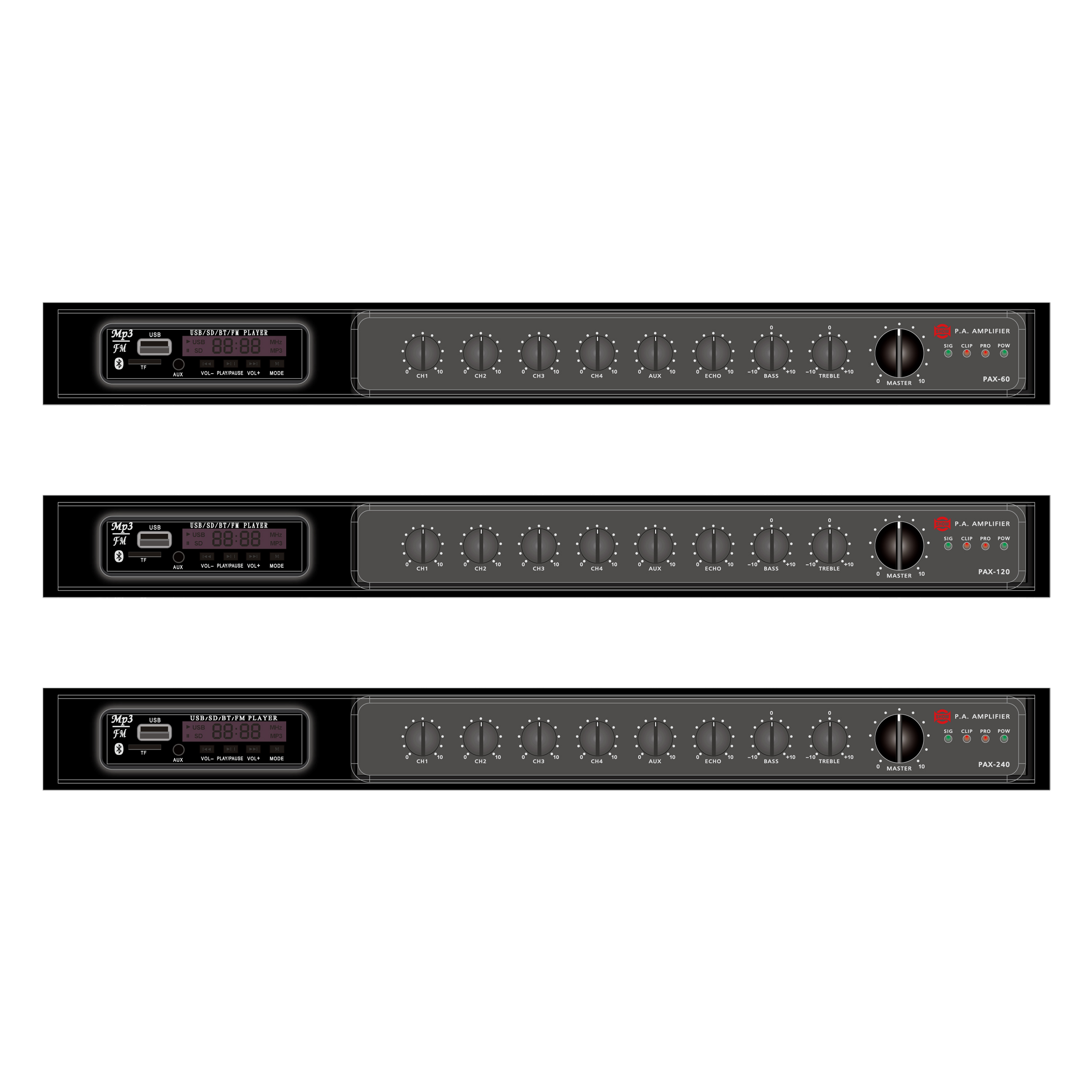

   FRONT PANEL

  • Signal LED, Clip LED, Power LED
  • 1 AUX (RCA) Input volume adjustments
  • 2 Tone (Bass / Treble) volume adjustments
  • 4 MIC / LINE volume adjustments
  • 1 Master volume adjustments
  • MP3 Player+BT+FM+USB

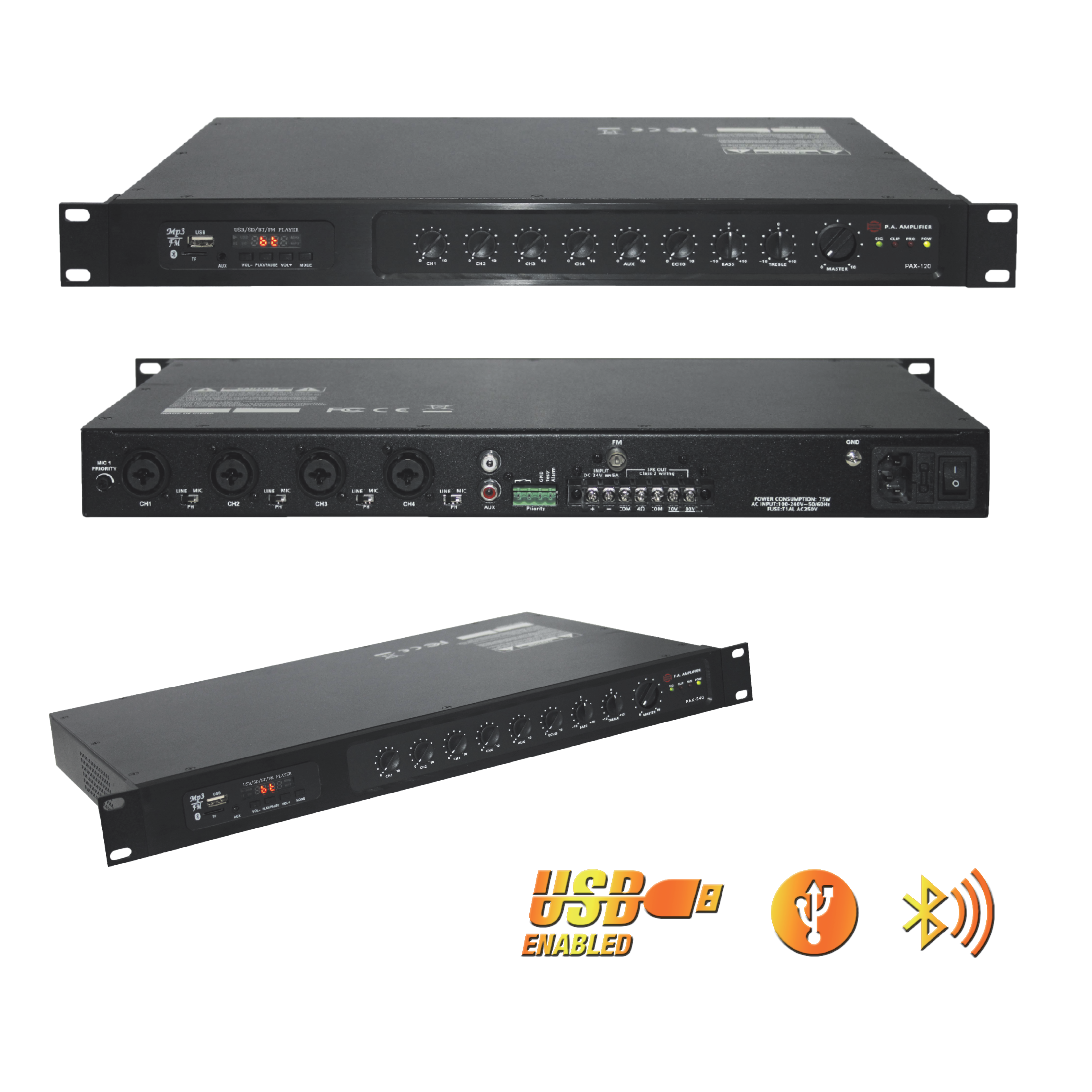

    REAR PANEL

  • FM antenna
  • Power Supply: AC100V~240V DC24V
  • Power switch
  • 1 Priority volume
  • 4 MIC / LINE Input, 1 AUX(RCA) Input
  • 4 MIC / PHANTOM/LINE switch
  • Priority INPUT (Test / Alarm)
  • OUTPUT: 4Ω, 70V, 100V

Specification

AC 100-240V 50/60Hz / DC24V

PAX-60:60W(RMS)
PAX-120:120W(RMS)
PAX-240:240W(RMS)

80Hz-16KHz(±3dB)..

1≤1%.

Mic: ≥65dB.
Phantom: ≥65dB.
Iine: ≥75dB.
AUX: ≥75dB.

Mic: -52dBV baIanced.
Phantom: -52dBV/18V baIanced.
line: -10dBV baIanced.
AUX: -10dBV baIanced.
Test/alarm: -10dBV baIanced.

BASS: ±10dB(at 100Hz), TREBLE: ±10dB(at 10KHz).

Pow: Greed led.
Sig: Greed led.
Pro: Red led.
Clip: Red led.

COM, 4Ω, 70V, 100V

4 input volume controls, l Aux volume controls.
2 Treble/Bass controls, I Master volume control.
4 Mic / phantom / line selector switch.
1.Mic l Priority controls.
MP3 player with SD/USB interface.
ECHO function.

483x281x44mm.

PAX-60: 4.1KG
PAX-120: 4.9 KG
PAX-240: 5.6 KG
