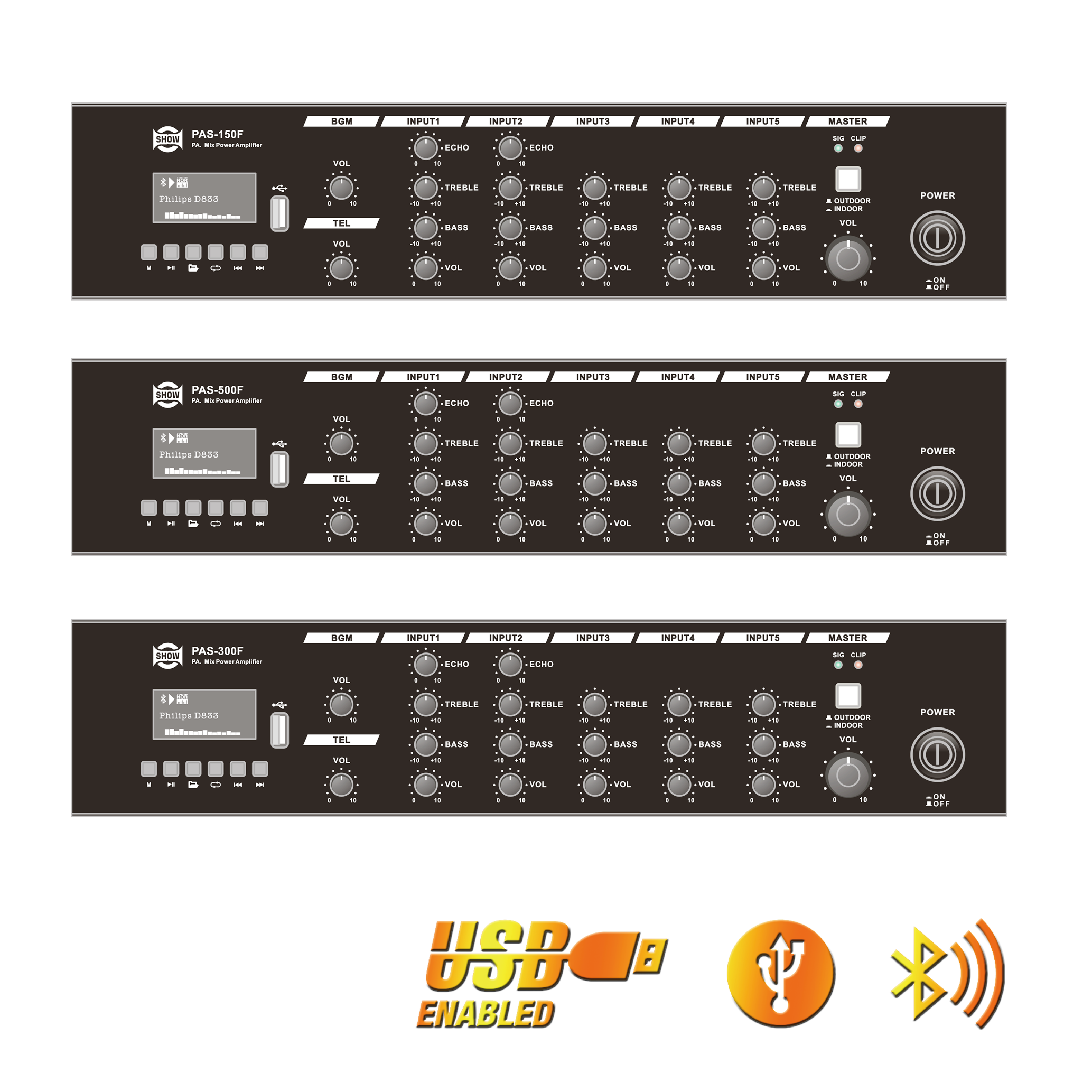

PAS-150F / PAS-300F / PAS-500F

  • PAS-150F / PAS-300F / PAS-500F: MP3-800 (USB/BT/MF)
  • Switch Mode Power Supply
  • 150W x 1; 300W x 1; 500W x 1 Class-D
  • 4Ω, 70V/100V Outputs
  • MP3 Player with Bluetooth Receiver
  • 18V DC Phantom Power
  • 4 Line in / MIC Switchable/2 Band EQ/ MIC1 Priority
  • TEL Paging / Priority Switch
PAS-150F / PAS-300F / PAS-500F

Specification

110-120V~,220-240V~50Hz/60Hz

sine wave IkHz,THD≤1%,LOAD 4Ω
PAS-150 :180W
sine wave IkHz,THD≤1%,LOAD 4Ω
PAS-300: 350W
sine wave IkHz,THD≤1%,LOAD 4Ω
PAS-500: 600W

sine wave IkHz,THD≤1%,LOAD 4Ω
PAS-150 :180W
sine wave IkHz,THD≤1%,LOAD 4Ω
PAS-300: 350W
sine wave IkHz,THD≤1%,LOAD 4Ω
PAS-500: 600W

MIC 1~4(balanced)
-45dBV(±2dB) )
LINE I~4(balanced)
-5dBV(±2dB)
AUX(unbalanced)
-5dBV(±2dB)
TEL
-15dBV(± 2dB)

MIC
>65dB
LINE
>75dB
AUX
>75dB

MIC+OUTDOOR
178Hz-7.96KHz
MIC+INDOOR
132Hz-7.96KHz
LINE+OUTDOOR
I38Hz-12.6KHz
LINE+INDOOR
70Hz-12.6KHz
AUX+OUTDOOR
144Hz-17KHz
AUX+INDOOR
76Hz-17KHz

1/10 Rated Out/1W
≤1W

BASS @100kHz
± 10dB
TREBLE @10kHz
±0dB

condenser microphone
18V

MIC+TEL
-60dBv/3S

balance input
>60dB

all VR MAX
<30mv

683 x 543 x 185 mm (26.89＂ x 21.38＂ x 7.28＂)

15.9 kg (35.05 lbs)
