PA-20M / PA-20HM / PA-40M / PA-40HM

The professional 20W/40W public address amplifier series are designed for small hotels and super-markets. The series include the following models, PA-20M/PA-20B/PA-20HM,PA-20HB/PA-40M,PA-40B/PA-40HM,PA-40HB. They have good performance and supply the excellent quality of sound. Besides, users can operate easily.Please refer to the following table for these models with different back ground music modules. Notes: letter"HM" means items with MP3 player and 70V/100V high voltage output;"HB"means items with Bluetooth player

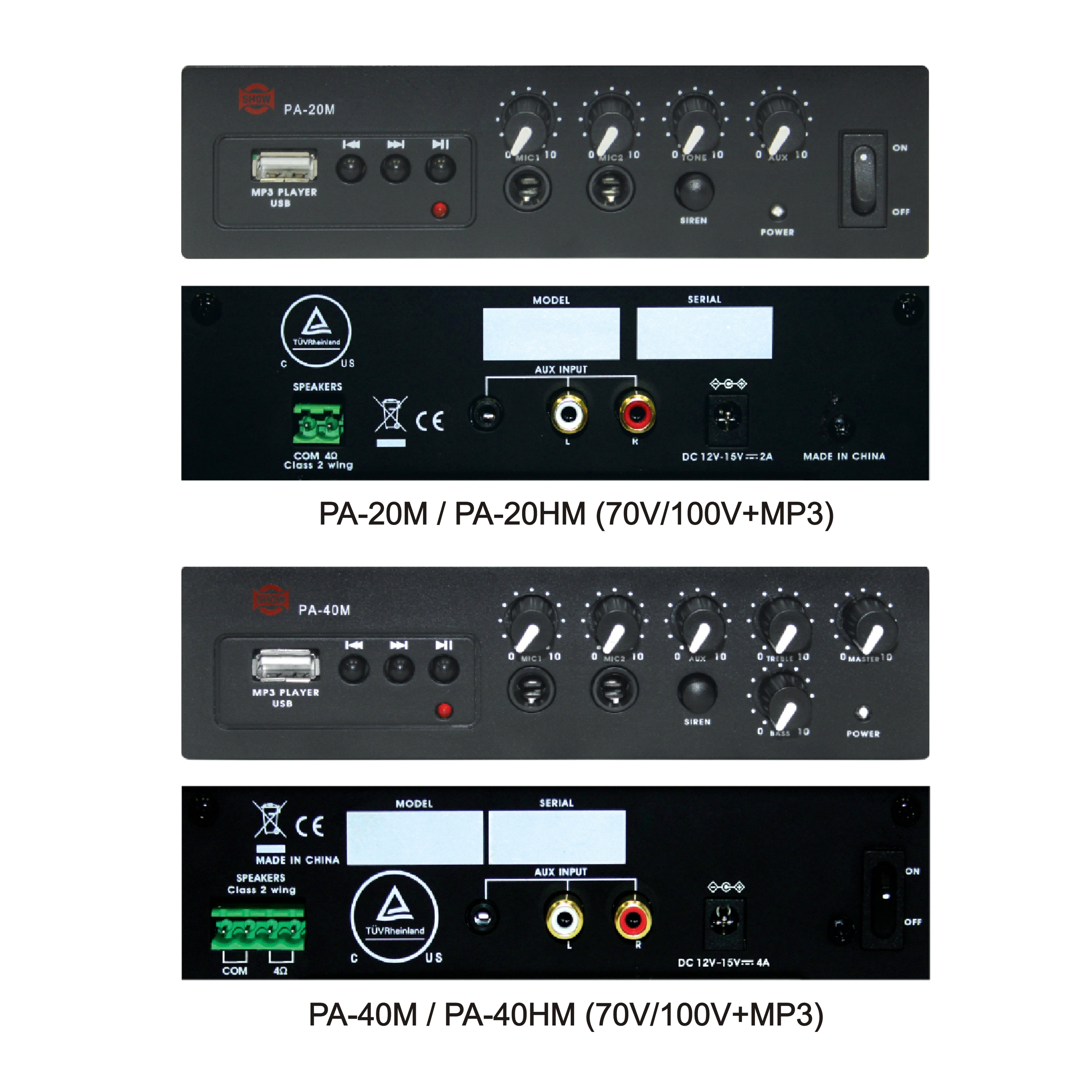

PA-20M / PA-20HM / PA-40M / PA-40HM



  • Output: RMS 20W/ 40W
  • 2 AUX (RCA3.5φ-jack) input
  • Treble Bass Adjustments.
  • 2 input volume adjustments/master output volume adjustment
  • 2 MIC (Φ6.3mm) inputs
  • MP3 playing ; USB interface.

  • Impedance output is 4Ω(PA-20M/PA-20B/PA-40M/PA-40B) 70V/100V output (only for PA-20HM/PA-20HB/PA-40HM/PA-40HB)
  • Power Supply: DC12V-15V﹍2A(PA-20M/PA-20B/PA-20HM,PA-20HB), DC12V-15V﹍4A(PA-40M,PA-40B/PA-40HM,PA-40HB)
  • There are various modules like BT/MP3 for option.
  • Master adjustments.

Specification

PA-20M/PA20HM
DC12V-15V: 20W(4Ω )
PA-40M/PA40HM
DC12V-15V: 40W(4Ω )

100Hz-18KHz(±3dB)

PA-20M/PA20HM
DC 12V-15V 2A
PA-40M/PA40HM
DC 12V-15V 4A

MIC1~2(6.3φ-jack) unbalanced -30dBu/1kHzAUX(RCA; 3.5φ-jack) -6dB/1kHz

0.001

>70dB

70V/100V

4 volume controls,1 tremble control.

MP3 player or Bluetooth Player

168x105x44mm

PA-20M/PA20HM
0.85kg
PA-40M/PA40HM
0.49KG
