DSS1608

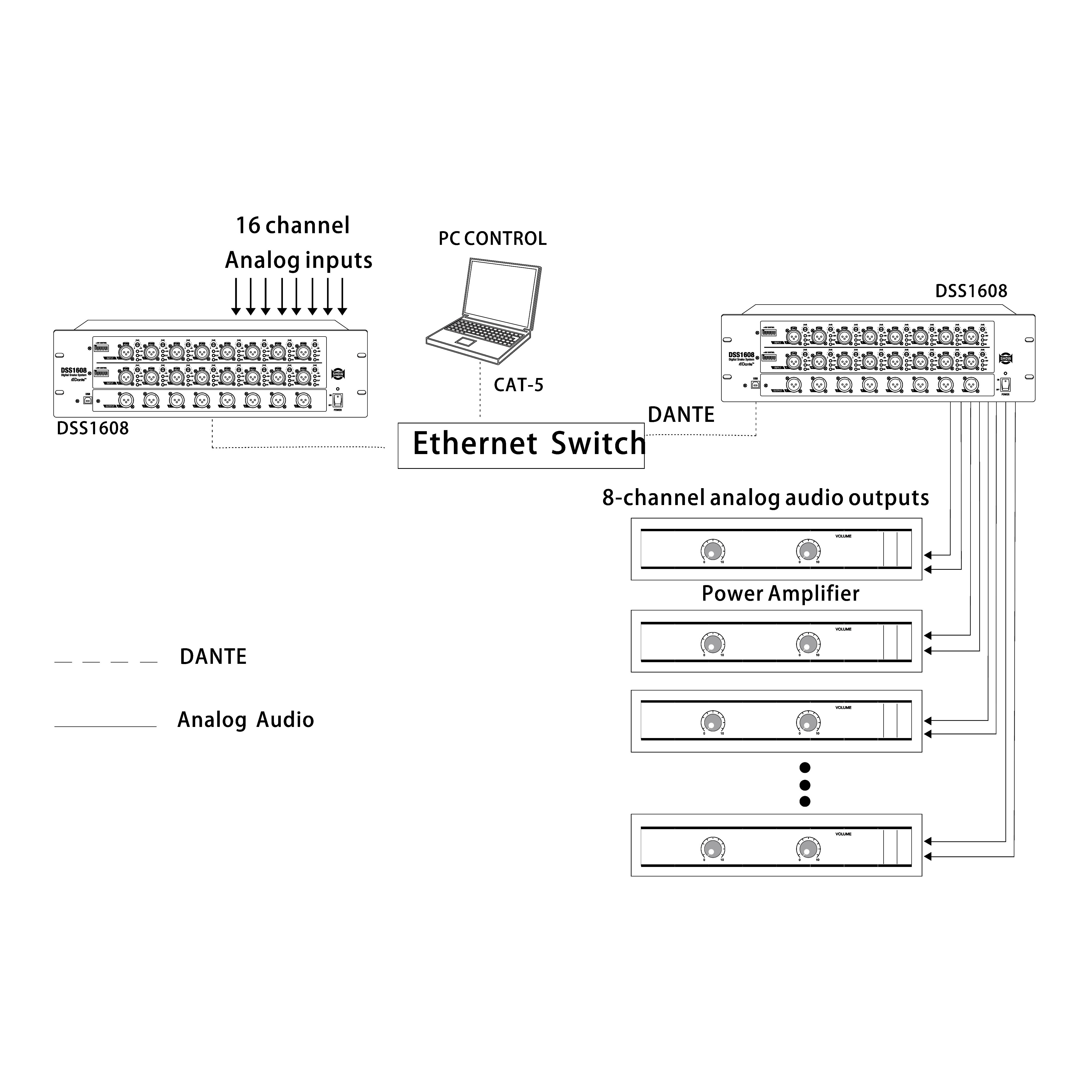

  • 16 analog input 8 output channels (XLR jack)
  • Level control for each input channel
  • Gain control
  • Led indicators for signal, clip and 48V phantom power input channel
  • 48V phantom power
DSS1608
  • It delivers uncompressed digital audio in high quality, extra low noise and real time through a standard Ethernet network.
  • All of the signals are sent through Ethernet network in digital which overcomes the disadvantage of distorting the audio which caused by sending signals in analog signal.
  • It reduces the system installation and maintenance fee as the unit is suitable for any situation and transmits signal through Ethernet network.
  • The transmission distance of the unit reaches 100 meters using CAT 5 cable and over 1000 meters using fiber cable.

Specification

Sample Rate
48Hz
Bit Rate
24bit
Dynamic Range
114dB
THD+N
-105dB

Sample Rate
48Hz
Bit Rate
24bit
Dynamic Range
114dB
THD+N
-100dB

48KHz

<0.01%@1KHz 0dB Input

20-20KHz@+/-1.5dB

108dB

<-96dB @0dB Gain

<-92db @0dB Gain

100Base-T CAT-5 Cable max 100M
100Base-T RJ45 Connector

16IN/8OUT XLR Jack

Power Switch LED
Signal Input LED
Clipping LED
Phantom Power LED

Switch ON/OFF

0 to 40dB Analog Channel

Analog XLR

9.46KG(The other:9KG)

58.3*39*48.7cm
