TPE-1000.4

This professional digital power amplifier is designed for professional use on stage. The high-quality components and the carefully designed circuits ensure excellent audio performance. We believe the will provide a perfect performance, what you get is unprecedented performance at an incredibly attractive price

TPE-1000.4

    FEATURES

  • 4 channels input, 4 channels output
  •  Built in high-performance DSP

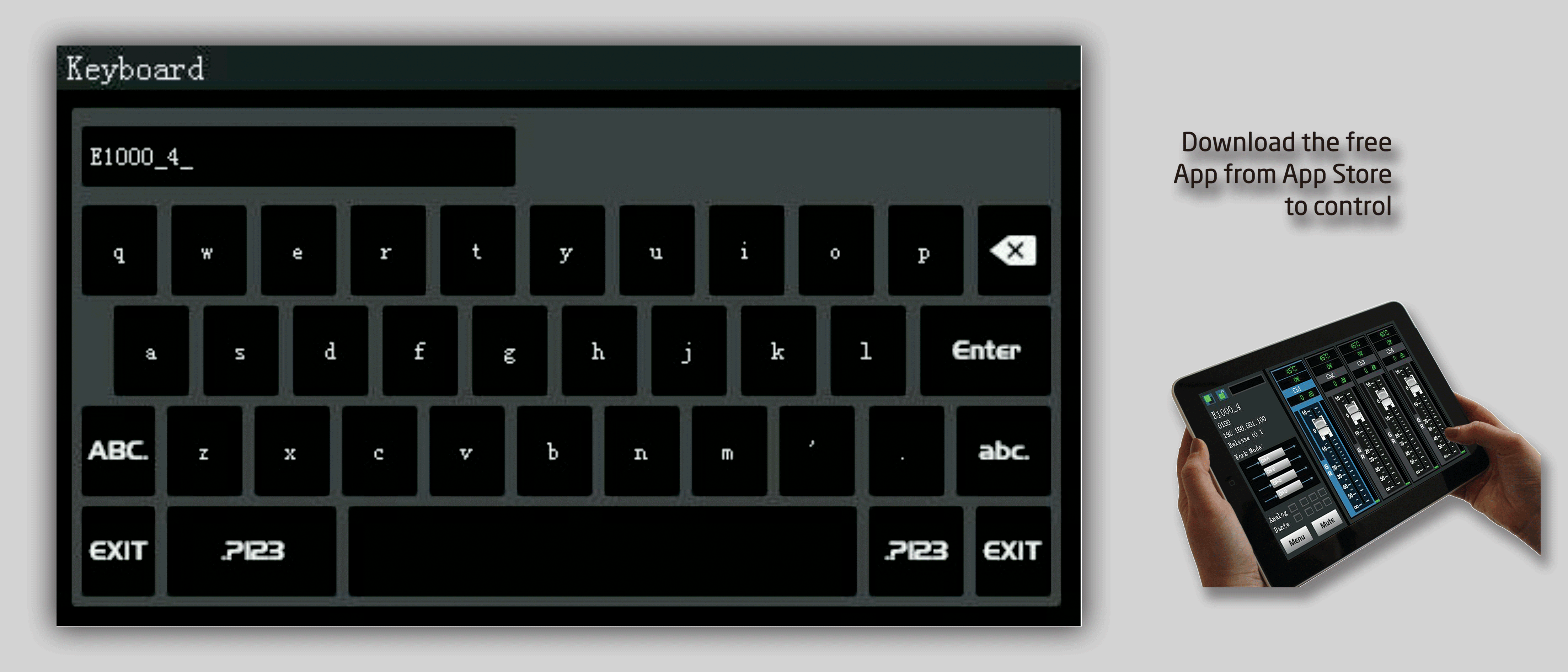

  • Easy to operate by LCD touch Screen and Encoder
  • High current switching power supply allowing high power output with low noise and low distortion
  • Ethernet and type C ports for PC software control.
  •  The RS232 interface is to connect with third-party central control.
    RS-485 is for remote power function and also for connecting the third-party central control.
    GPI output supports defined functions: power/priority/mute control
  • Built-in 4-in and 4-out DANTE modules can realize multi-amp Daisy chain (connection)
  • Power amplifier backup autornatic switching function.


    SOFTWARE FUNCTION

  •  Digital gain/volume control
  • Digital noise gate/Digital compressor/Limiter
  • Phase/Phase Inversion/Time Delay
  • Lock and unlock functions/setting password
  • Set up the parallel/bridge function
  • Adjust the parameters of PEQ
  •  Input Signal routing setting
  •  Save/Load user presets


Specification

1000W x 4 Digital Amplifer

4 ohms(RMS)
900W x 4
8 ohms(RMS)
500W x 4

8 ohms(RMS)
1600W*2

Input Sensitivity (Limit Off)
0.9-1.1V(0+/-1dBv)
Input Impedance
20k ohms balanced or
10k Ohms unbalanced
Frequency Response
(at 10dB Rated Output Power 8Ω)
20Hz ~ 20KHz(+0/-1dB)
THD+N
(Ref.1K 1/8 Rated Power,A-Weighted)
<0.05%
S/N rate
(Ref. Rated Power, A-Weighted)
>100dB
Crosstalk (Below Rated Power)
>70dB
Power/Output Circuitry
Switching Power/Class D

Protections
Short circuit, Overheating, Overcurrent, DC output detection, Power failure detection
Controls
Front: Stand by/Power Button, Functions Control Knob, Touch LCD.
Connectors
INPUT : balanced/unbalanced COMB Jacks
OUTPUT: Speak-on jacks
Power Supply
AC:110-120V/220-240V 50/60Hz
Dimensions(mm)
447.9(W)*483(D)*88.1(H)
Weight
10.77kg
