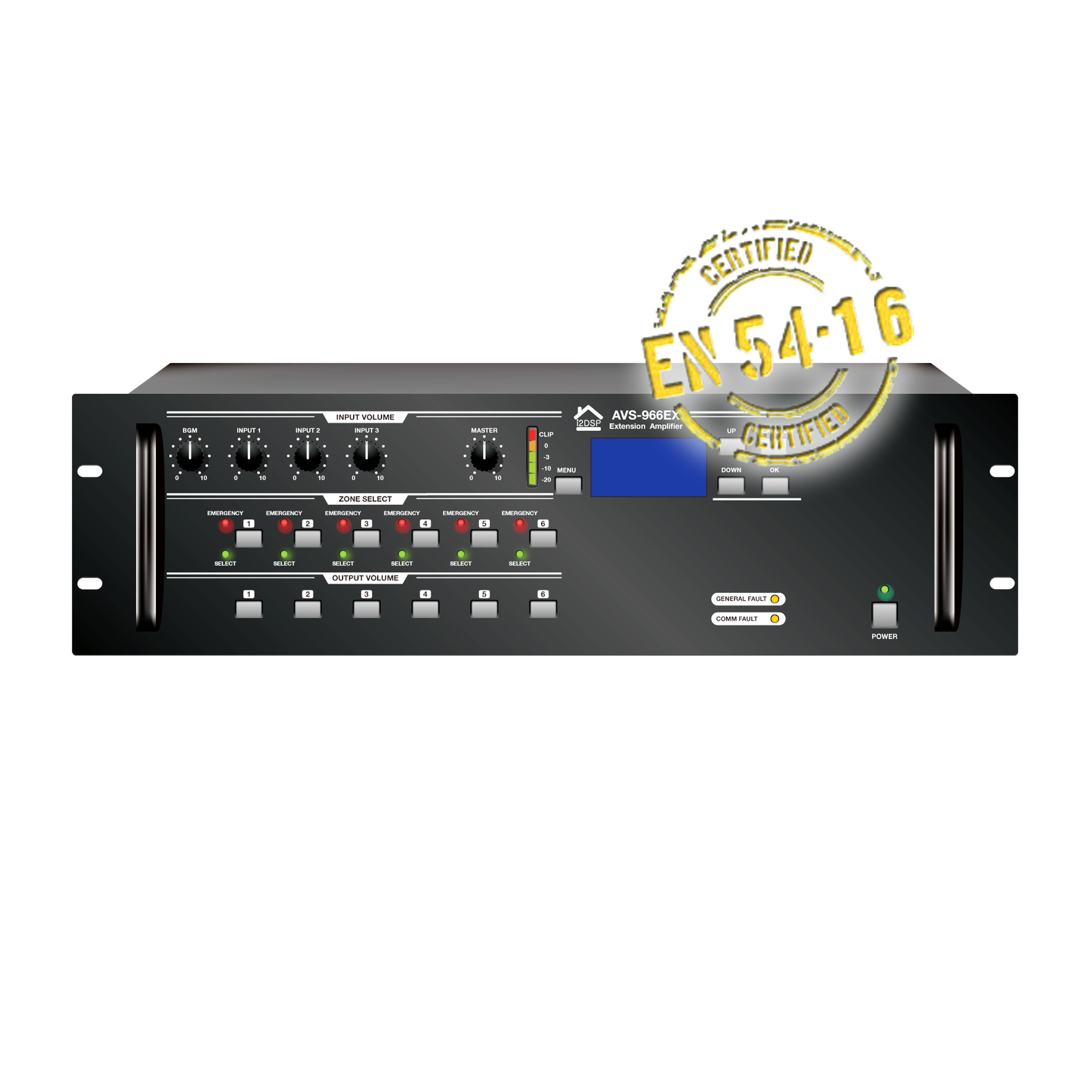

AVS-966EX

  • 3 MIC inputs and one BGM input
  • Expander machine power up to 360 W and is with 6 zone outputs.
  • 2 RD ports, used to connect the calling microphone or emergency microphone or external volume controller.
  • 6 emergency control input ports, 6 control input ports, and 6 outputcontrol ports, for interaction with third-party equipment, such as onnecting to a fire cente
AVS-966EX

規格

230 V 50/60 Hz

1100 W Max consumption power

360 W

50 Hz-16 kHz, ±3 dB (1/3 rated output)

≤0.7% (Rated output 1 kHz)

≥85 dB

Input 1-3:-50 dB * (MIC)/-10 dB * (LINE) (rechangeable)
600 Ω BGM 1-2: 10 dB * 10 kΩ external AVP input: 100 V

The total ouput power for loudspeaker CH1-6 isn't more than 360 W.
And the Max ouputs applied on single channel=180 W.

Connected to AVS-64RFM/AVS-64RPM remote microphone.
Up to 300-meter distance between the unit and remote microphone
can be connected via RJ45 female connector. Recommended to use cable (CAT5-STP)

Connected to AVS-966SA backup amplifier.
RJ45 female connector, The host and backup amplifier,
Recommended to use cable (CAT5-STP)

N/A

Two-way inputs, Enable to be connected to fire-fighting center and receive message control.

Input 1-6: No-voltage contact input, short-circuit currents, 2 mA or much less
Output 1-6: Isolated open collector output, operating current: 10 mA or less

N/A

N/A

-5° C-+ 45° C

440 × 402 × 130 mm

17 kg
