CSB SERIES

  • The speaker body is made of ABS + PC plastic material UL 5VB fireproof cabinet.
  • Contains a wide-band high-efficiency paper cone speaker
  • Contains a line transformer for constant voltage system.
  • Output power has 4 different values.

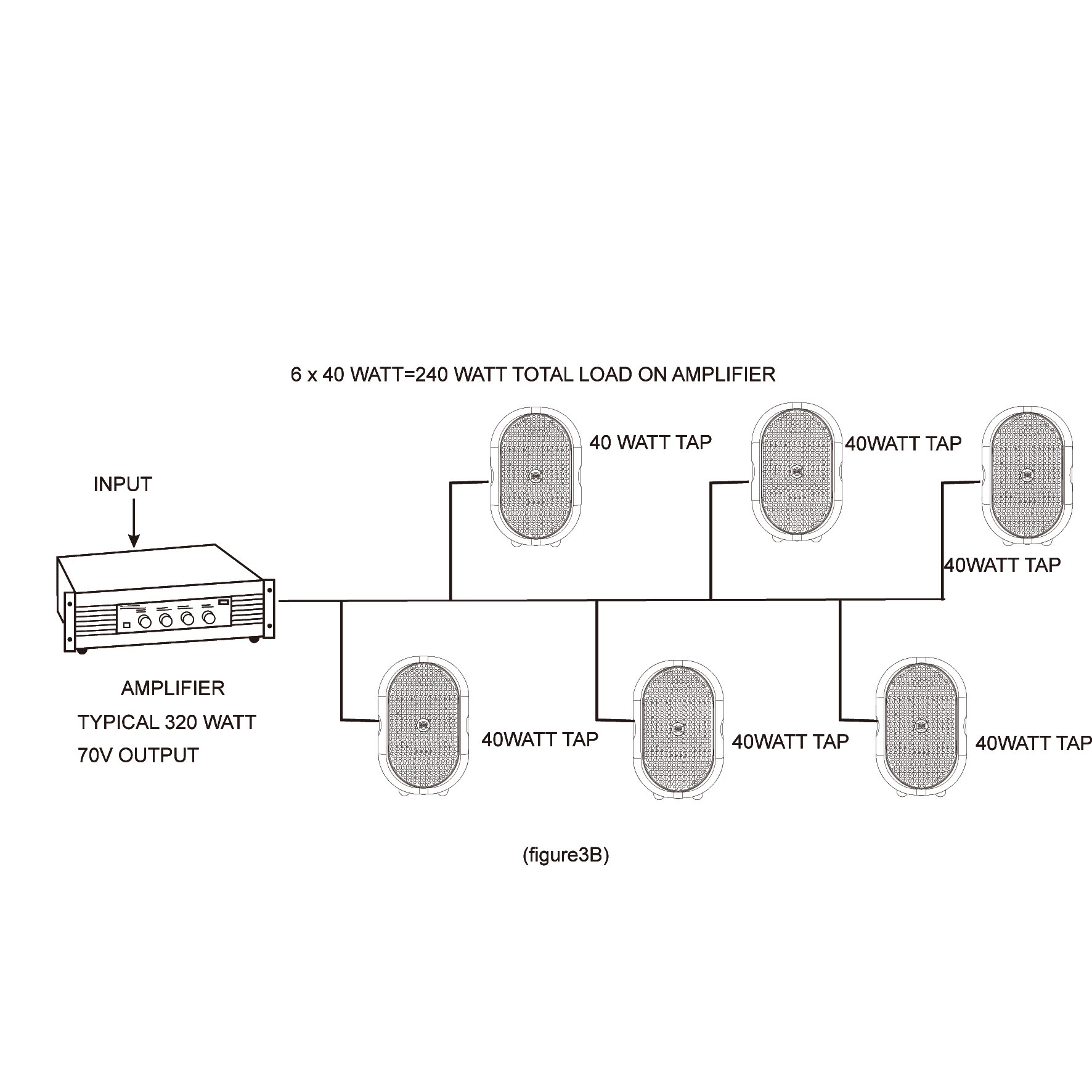

  • Equipped with 70 V and 100 V line input.
  • Comes with a bracket for wall mounting.
  • Impedance can be changed by the rotary switch on the back
  • Certified for EN54-24: 2008 Fire Detection and Alarm System and GB-16806 Fire Emergency Broadcasting System.
CSB SERIES

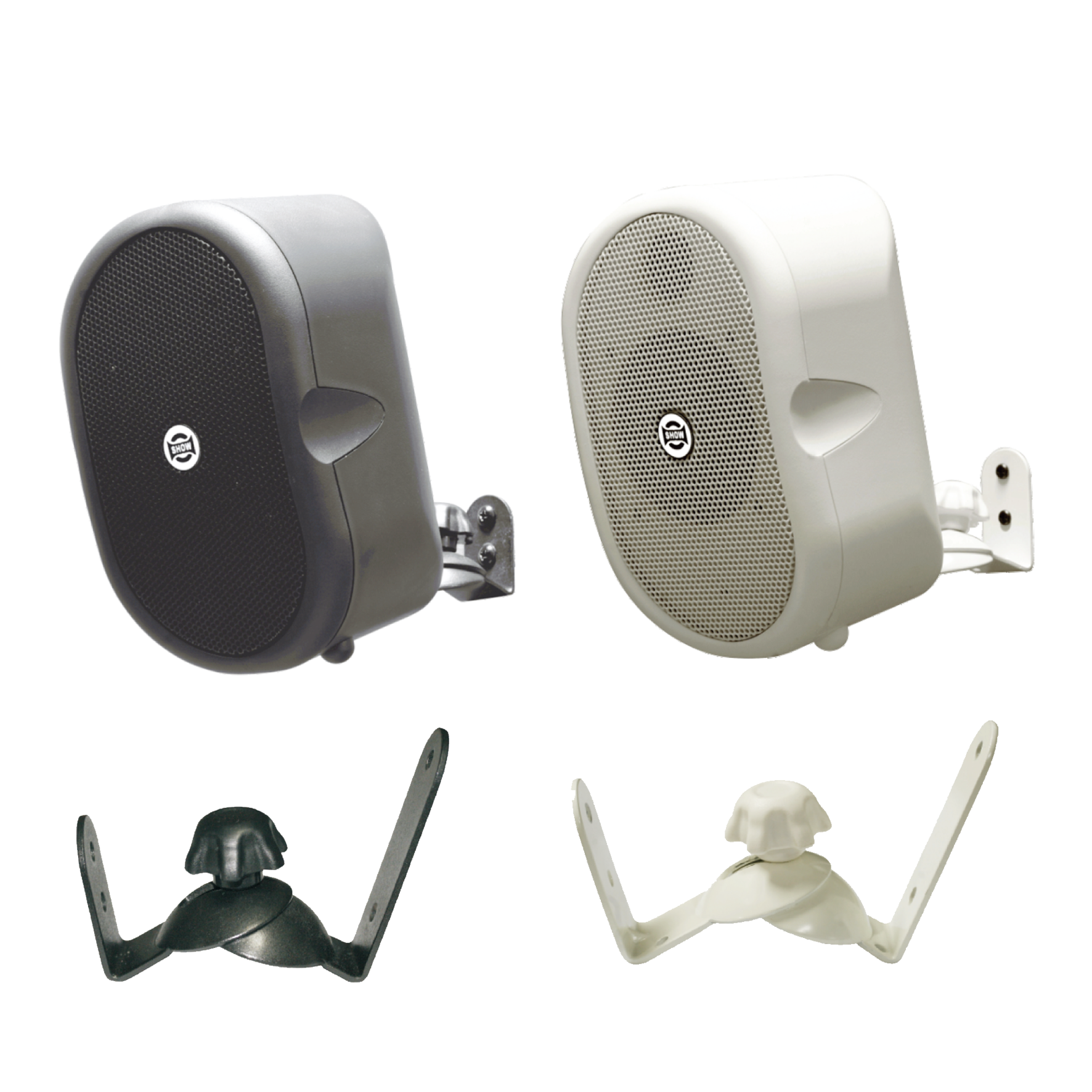

CSB series speakers are multi-purpose wall-mounted speakers, mainly suitable for indoor broadcasting systems and indoor configuration applications. It is also equipped with a spherical mounting bracket that can be rotated 180 degrees to install an optional bracket. It is designed in black and white, with an intermediate transformer matching impedance for 70 V/100 V high voltage input, and has obtained EN54-24: 2008 fire detection and alarm system and GB-16806 fire emergency broadcast system certification. Its appearance structure is made of ABS + PC plastic material UL 5VB fireproof grade box, and is equipped with 3-inch and 4-inch full-range speakers respectively. It is suitable for full-range application in professional offices, airports, restaurants, supermarkets, schools, hotels, fitness clubs and special professional retail stores.



規格

通過歐洲標準EN 54-24: 2008認證
用於火災探測和火災報警系統的語音警報揚聲器。
Certification Cation NO. 1438-CPR-xxxx

A型（室內應用）

CSB-20T/CSB-20TW
3吋全頻紙盆喇叭
CSB-40T/CSB-40TW
4吋全頻紙盆喇叭

CSB-20T/CSB-20TW
20 W（100 V定壓線路和70 V定壓線路）
CSB-40T/CSB-40TW
40 W（100 V定壓線路和70 V定壓線路）

CSB-20T/CSB-20TW
100 V定壓線路：500 Ω (20 W)；1 kΩ (10 W)；2 kΩ (5 W)
CSB-20T/CSB-20TW
70 V line: 245 Ω (20 W), 500 Ω (10 W), 1 kΩ (5 W), 2KQ (2.5 W)
CSB-40T/CSB-40TW
100 V定壓線路：250 Ω (40 W)；500 Ω (20 W)；1 kΩ (5 W)
CSB-40T/CSB-40TW
70 V line: 122 Ω (40 W), 250 Ω (20 W), 500 Ω (10 W) 1KQ (5 W)
CSB-20T/CSB-20TW
BYPASS-4Q

CSB-20T/CSB-20TW
82 dB（1 W，1米）（500 Hz-5 kHz，粉紅噪聲）
70 dB（1 W，4米）（100 Hz-10 kHz，粉紅噪聲）符合EN54-24標準
82 dB（1 W，1米）（100 Hz-10 kHz，粉紅噪聲）根據EN54-24標準換算
CSB-40T/CSB-40TW
86 dB（1 W，1米）（500 Hz-5 kHz，粉紅噪聲）
74 dB（1 W，4米）（100 Hz-10 kHz，粉紅噪聲）符合EN54-24標準
86 dB（1 W，1米）（100 Hz-10 kHz，粉紅噪聲）根據EN54-24標準換算

CSB-20T/CSB-20TW
132 Hz-20 kHz
CSB-40T/CSB-40TW
100 Hz-20 kHz

CSB-20T/CSB-20TW
83 dB（20 W，4米）（100 Hz-10 kHz，粉紅噪聲）符合EN54-24標準
95 dB（20 W，1米）（100 Hz-10 kHz，粉紅噪聲）根據EN54-24標準換算
CSB-40T/CSB-40TW
90 dB（40 W，4米）（100 Hz-10 kHz，粉紅噪聲）符合EN54-24標準
102 dB（40 W，1米）（100 Hz-10 kHz，粉紅噪聲）根據EN54-24標準換算

CSB-20T/CSB-20TW
水平覆蓋：360° (500 Hz)，220° (1 kHz)，127° (2 kHz)，96° (4 kHz)
垂直覆蓋：360° (500 Hz)，214° (1 kHz)，149° (2 kHz)，126° (4 kHz)
CSB-40T/CSB-40TW
水平覆蓋：360° (500 Hz)，220° (1 kHz)，120° (2 kHz)，87° (4 kHz)
垂直覆蓋：360° (500 Hz)，214° (1 kHz)，116° (2 kHz)，99° (4 kHz)

CSB-20T/CSB-20TW
1.4 kg
CSB-40T/CSB-40TW
2.5 kg

CSB-20T/CSB-20TW
115 (W) × 107 (D) × 175 (H)
CSB-40T/CSB-40TW
136 (W) × 140 (D) × 206 (H)

CSB-20T/CSB-20TW
3吋（77 × 77毫米）紙盆喇叭
CSB-40T/CSB-40TW
4吋（106 × 106毫米）紙盆喇叭

-10℃至+50℃

Solid wire: p0.8 mm (18AWG) UL2464

Push-in terminals (steatile terminal × 2) speaker cable with a diameter of 6 mm White (+)/Black (-)

Enclosure: ABS + PC, White or Black
Mesh speaker grill: Surface-treated steel plate, White or Black paint
Speaker Wall bracket: Surface-treated steel plate, White or Black paint
通用連接支架，螺絲安裝包，不鏽鋼承重鋼纜
