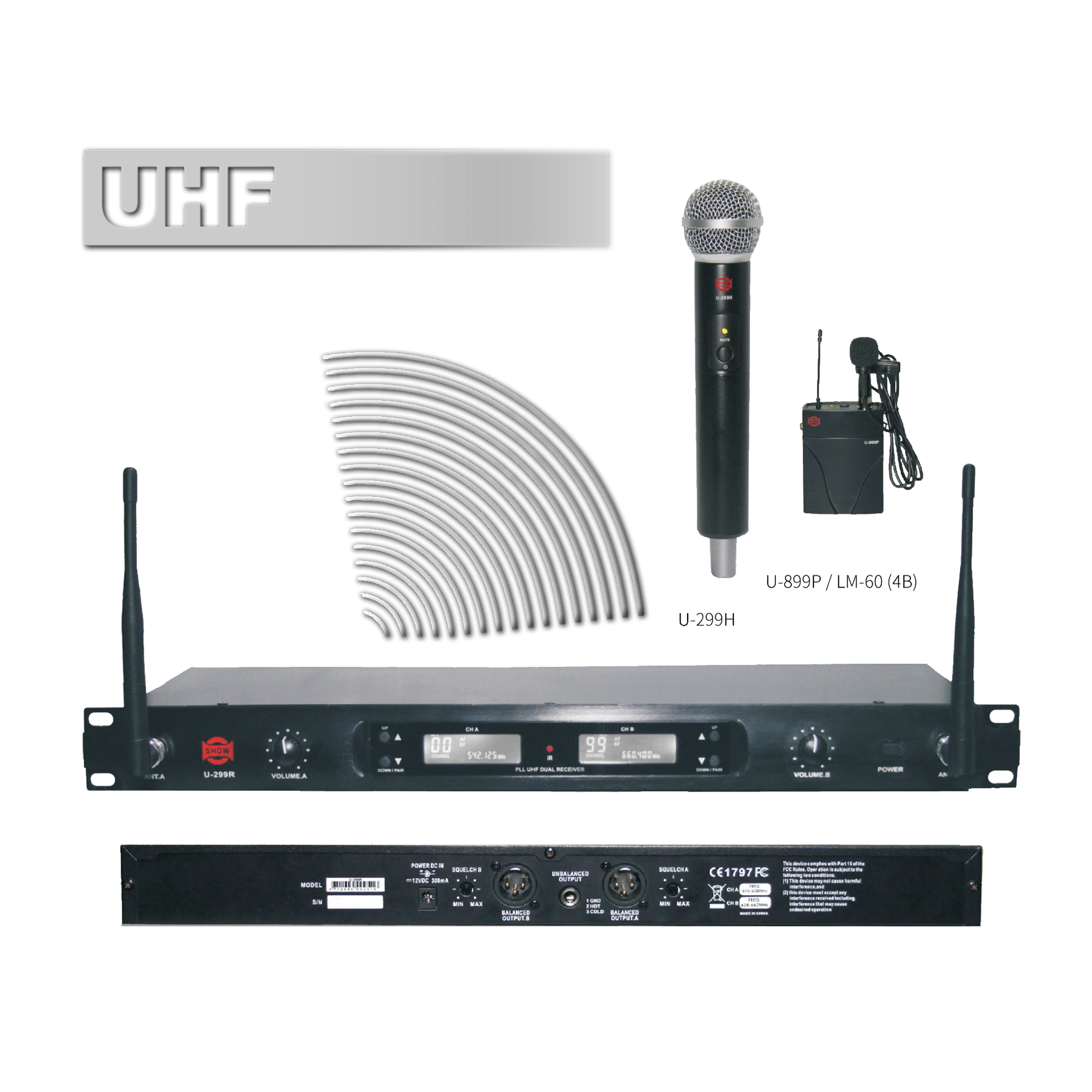

U-299R SERIES

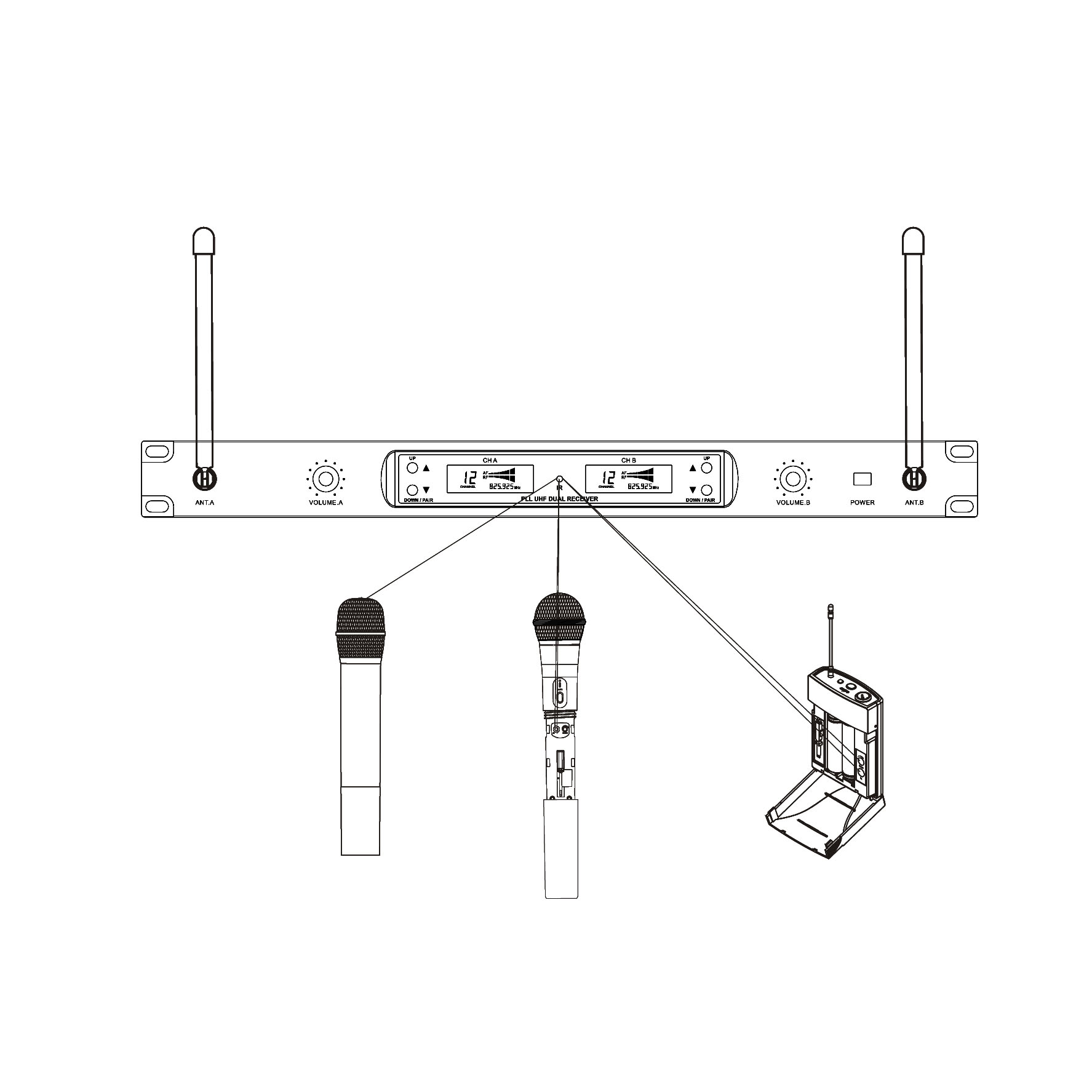

  • The dual-channel wireless transmission system can be used with waist-mounted and handheld transmitters. The receiver is a 19-inch structure and can be directly locked on the cabinet.
  • Intelligent recognition ID for each individual frequencies can effectively prevent interference. U-299R receiver has both balanced and unbalanced output, which is convenient for any kind of acoustic equipment connection.
  • The U-299R system can auto scan and connect to avoid any interference frequency channel, and ensure all channels operate on clean sound transmission.
U-299R SERIES



  • Intelligent recognition ID for each individual frequencies can effectively prevent interference.

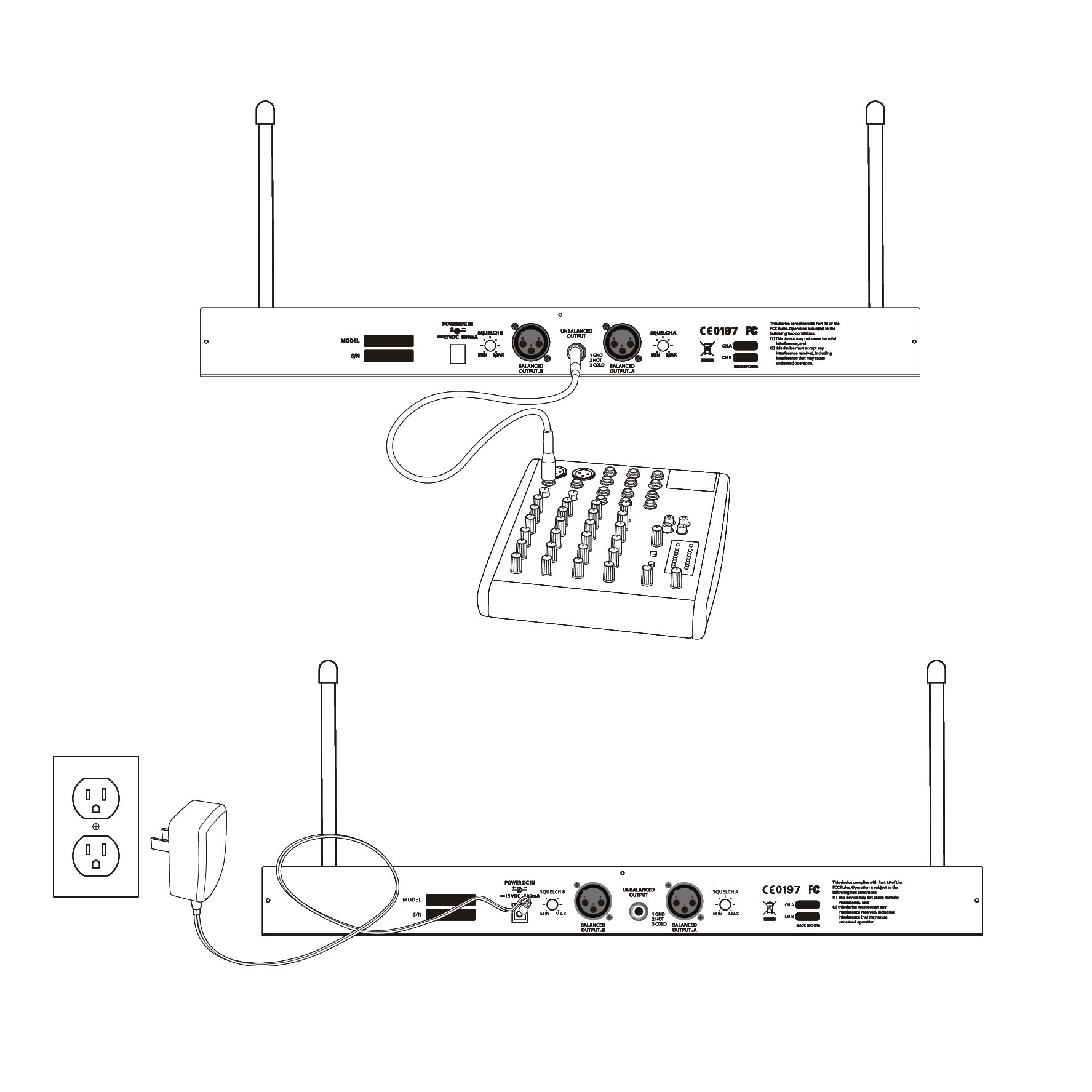

  • U-299R receiver has both balanced and unbalanced output, which is convenient for any kind of acoustic equipment connection.

  • Wireless hand-held microphone is equipped with Infrared (IR) synchronization technique, allowing easier use.
  • The U-299R system can auto scan and connect to avoid any interference frequency channel, and ensure all channels operate on clean sound transmission.

規格

通道
Dual-channels
Oscillation Mode
Dual PLL UHF Synthesized
Frequency Band
UHF 470 ~ 960 MHz
頻率響應
50 Hz-15 kHz（±3 dB）
Frequency Stability
±0.005%
THD
<1%
Dynamic
>100 dB
Modulation Mode
FM (F3E)
Max Unbalanced Output
10 dBu
Max Balanced Output
10 dBu
訊噪比
>100 dB
RF Sensitivity
-100 dBm/30 dB sinad
電源供應
100 ~ 240 V/50 ~ 60 Hz, DC 15 V/500 mA
Display Mode
LCD顯示屏
尺寸（寬 x 深 x 高）
480 × 200 × 45 mm (18.8" × 7.8" × 1.77")
重量
3.5 kg (7.7 lbs)

Oscillation Mode
PLL UHF synthesized
Frequency Band
UHF 470 ~ 960 MHz
頻率響應
50 Hz-15 kHz（±3 dB）
Frequency Stability
±0.005%
THD
<0.8%
Modulation Mode
FM (F3E)
Rf Output Power
10 mW
動態範圍
>100 dB
Tone Frequency
32.768 kHz
電流消耗
<150 mA
Max. Deviation
±35 kHz deviation
電池

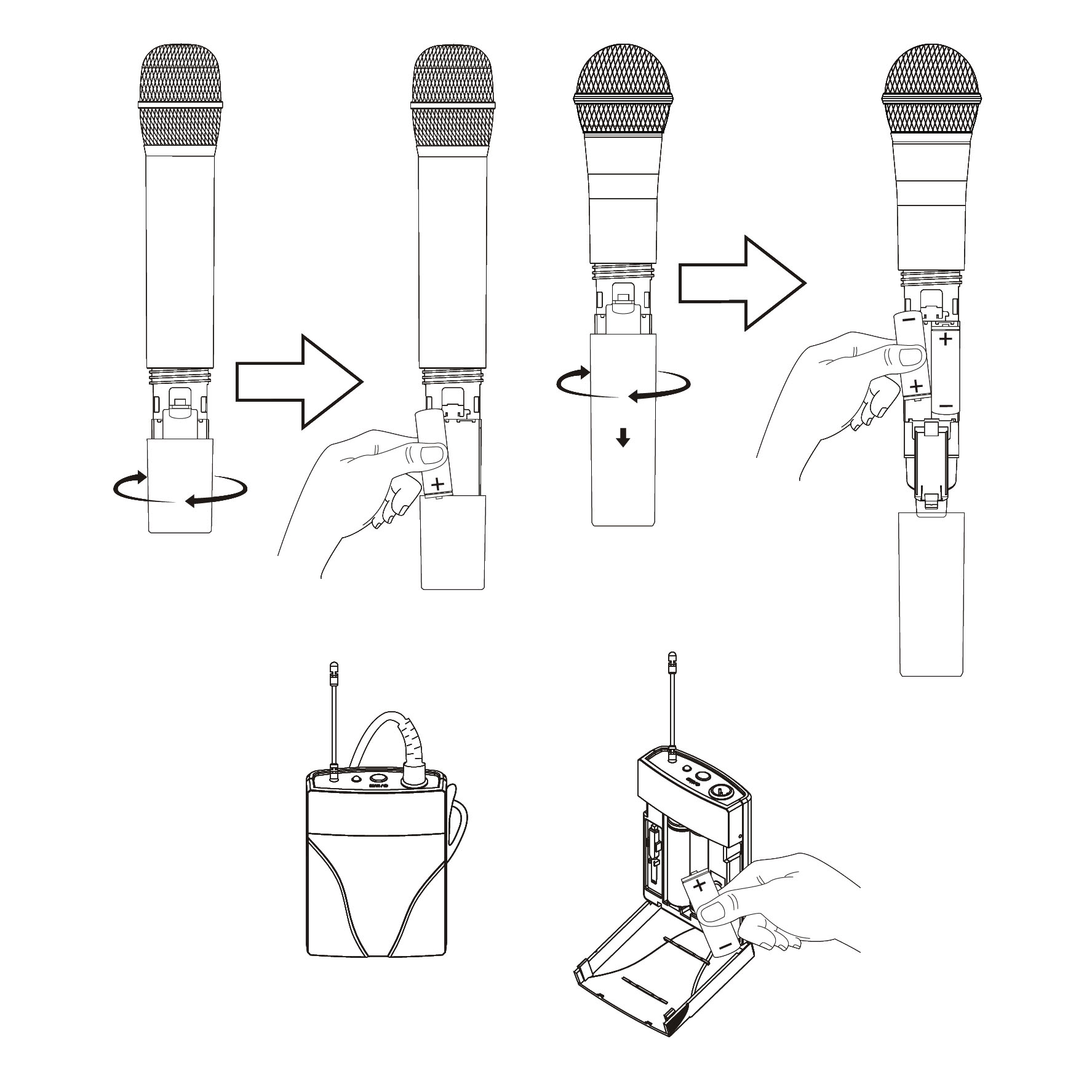

AA type × 2 pcs
Microphone Capsule
Dynamic capsule
尺寸（寬 x 深 x 高）
260 × 36 mm (10.24” × 1.418”)
重量
0.3 kg (0.66 lbs)
