CS-308

Offering high intelligibility and natural music reproduction, CS columns are the perfect solution for highly reverberant environment such as churches, architectural spaces, auditoriums, railway stations and other transport terminals. Based on the line array principle, the columns provide a consistent pattern control for a superior sound quality. CS SERIES is made of plywood and is dedicated for indoor fixed installations. It is equipped with 3” full range drivers including 4 to 12 components in each box. A phoenix connector makes the connection easy to the amplification systems with rotated switch for the transformer taps selection

CS-308

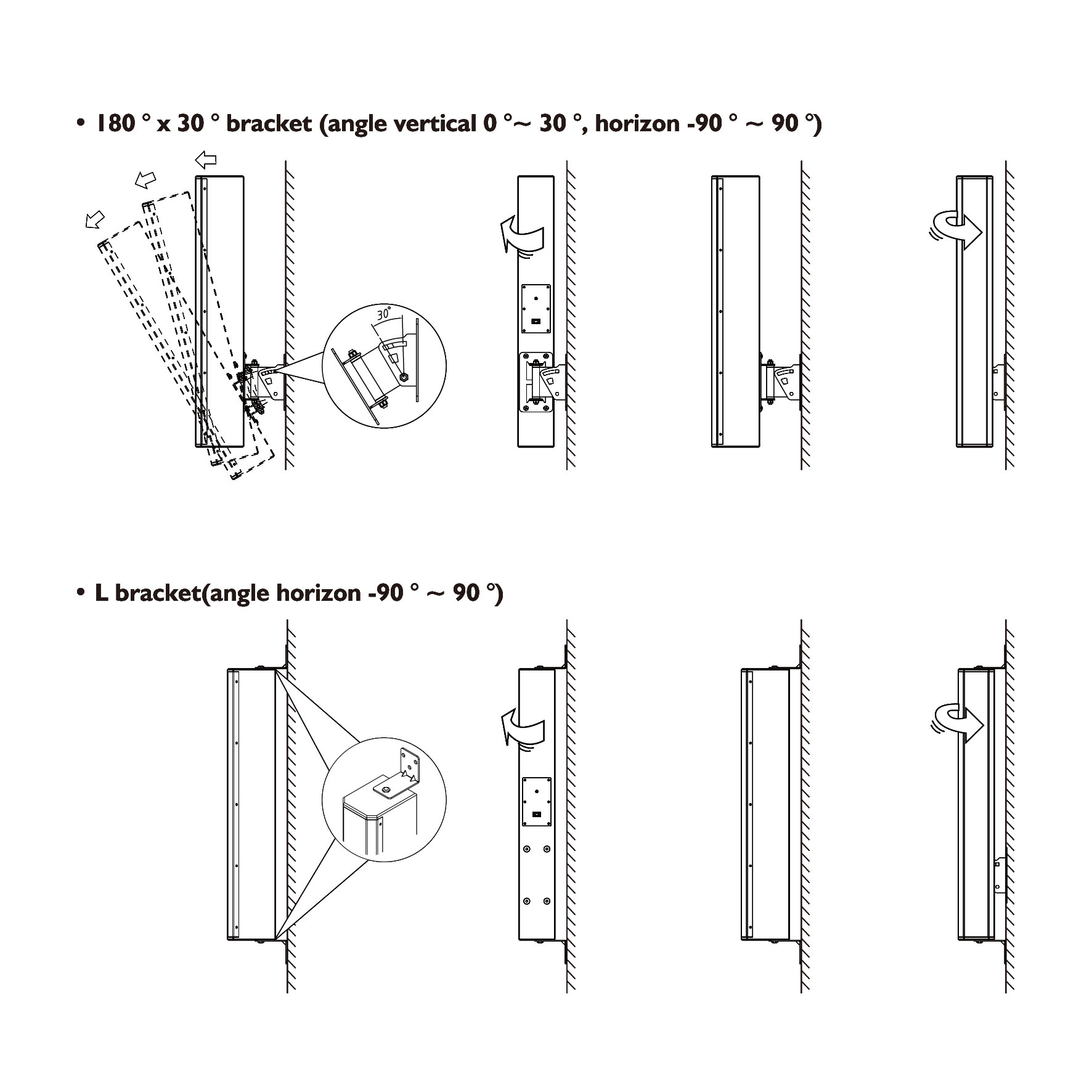

CS series are a professional linear column speaker developed by SHOW. There is a 1.0 mm mesh and 0.8 mm thick iron mesh on the front of the speaker. It can effectively prevent dust from entering the speaker, and the high-strength iron mesh can well protect the speaker unit from being damaged by external forces. The wooden box is made of full plywood, which makes the box lighter and more solid. The surface of the box is sprayed with fine sand paint, which feels more delicate. 3” full-range speaker unit, with straight paper body and cloth suspended edge cone. The speaker vibration system is lightweight and highly sensitive. The sound system uses a power transformer to switch the system power, which can effectively protect the speaker. To prevent high-power input signals from damaging the speaker, multiple units can be used in parallel without causing low impedance and damaging the PA amplifier. The screws of the fixing bracket are locked on the fixing plate inside the wooden box. The fixing plate is a 3 mm thick iron plate. The large area of iron plate can effectively decompose the tension of the bracket, and the locking screws are M8, which can withstand huge tension.



規格

CS-304
4 × 3 inch
CS-308
8 × 3 inch
CS-312
12 × 3 inch

Column Array Speaker

70 V/100 V

CS-304
5 W/10 W/20 W/40 W
CS-308
7.5 W/15 W/30 W/60 W
CS-312
15 W/30 W/60 W/120 W

CS-304
60 W RMS, 120 W Program
CS-308
120 W RMS, 240 W Program
CS-312
180 W RMS, 360 W Program

CS-304
70 V 1000 Ω/500 Ω/250 Ω/125 Ω
100 V 2000 Ω/1000 Ω/500 Ω/250 Ω
CS-308
70 V 667 Ω/333 Ω/167 Ω/83 Ω
100 V 1333 Ω/667Q/333 Ω/167 Ω
CS-312
70 V 333 Ω/167 Ω/83 Ω/41 Ω
100 V 667 Ω/333Q/167 Ω/83 Ω

CS-304
93 dB
CS-308
95 dB
CS-312
99 dB

CS-304
114 dB (calculated by 8 Ω)
CS-308
119 dB (calculated by 8 Ω)
CS-312
125 dB (calculated by 8 Ω)

180 Hz-18 kHz

CS-304
4個3吋全頻喇叭,20毫米音圈
CS-308
8個3吋全頻喇叭,20毫米音圈
CS-312
12個3吋全頻喇叭,20毫米音圈

CS-304
90° × 20° @ 4 kHz
CS-308
90° × 30° @ 4 kHz
CS-312
90° × 60° @ 4 kHz

鳳凰端子

Plywood cabiner, resistant paint, 0.8 mm metal grille

CS-304
6 × M8 Points For Mounting
CS-308
6 × M8 Points For Mounting
CS-312
12 × M8 Points For Mounting

CS-304
378 mm (14.8") x98 mm (3.9") x130 mm (5.1")
CS-308
730 mm (28.8") x98 mm (3.9") x130 mm (5.1")
CS-312
1082 mm (42.6") x98 mm (3.9") x142 mm (5.6")

CS-304
4.4 kg/9.7 Lbs
CS-308
7.5 kg/16.5 Lbs
CS-312
12.2 kg/26.8 Lbs
