CAS-304

  • System Type Column Array Speaker
  • Input Voltage 70 V/100 V
  • Transformer Selectable Power 7.5 W/15 W/30 W/60 W
  • 系統阻抗 70 V 1000 Ω/500 Ω/250 Ω/125 Ω 100 V 2000 Ω/1000 Ω/500 Ω/250 Ω
  • 靈敏度(1 W/1m)93 dB
  • 最大聲壓級(1 米處)最大 114 dB(計算值)
  • Frequency Response (-6 dB) 150 Hz-18 kHz
  • 喇叭:4×3吋全頻喇叭,0.78吋(20毫米)音圈
  • Angle of Coverage (-6 dB) 120° H × 30° V @ 4 kHz
  • Suspension/Mounting6 × M8 Points for Mounting

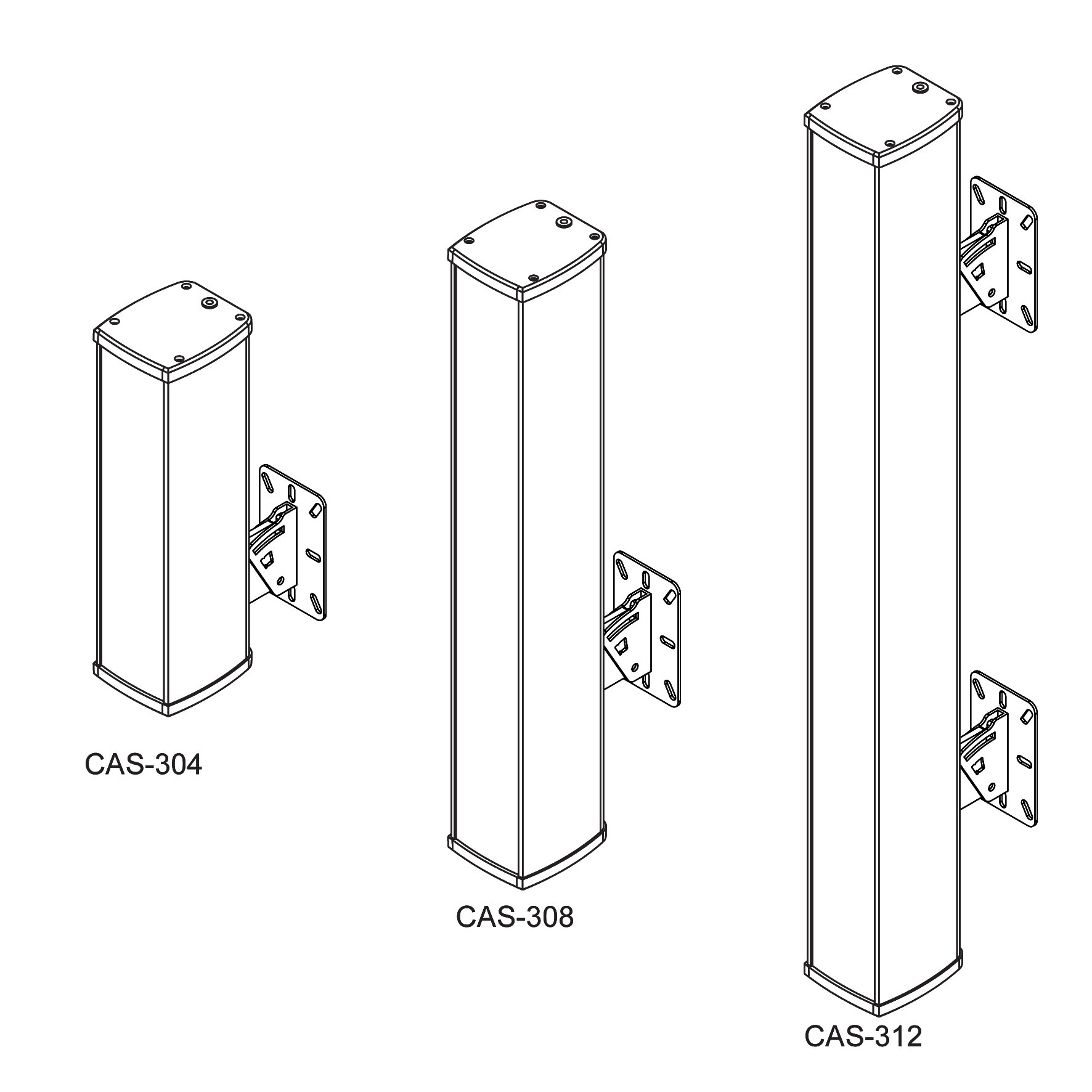

CAS-304

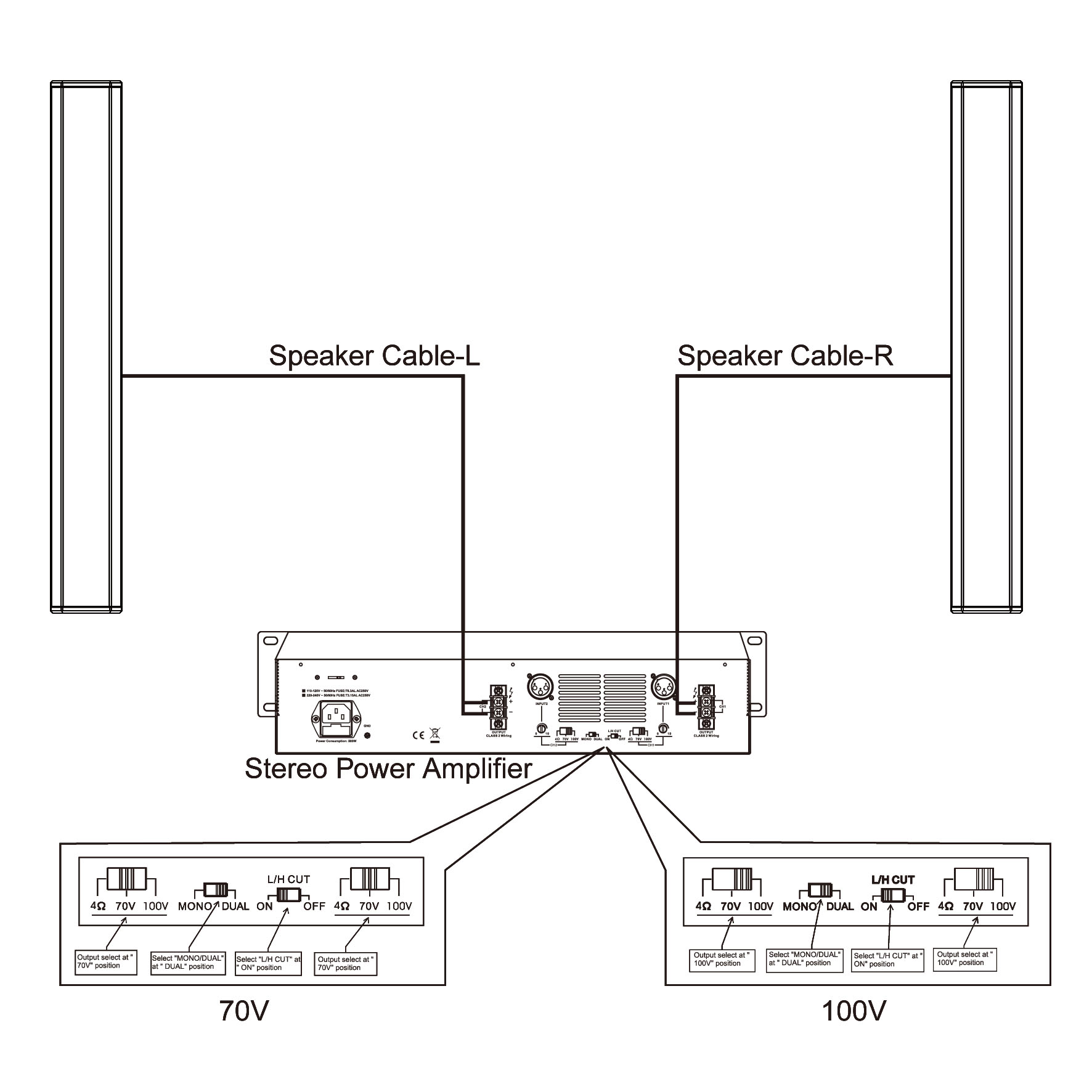

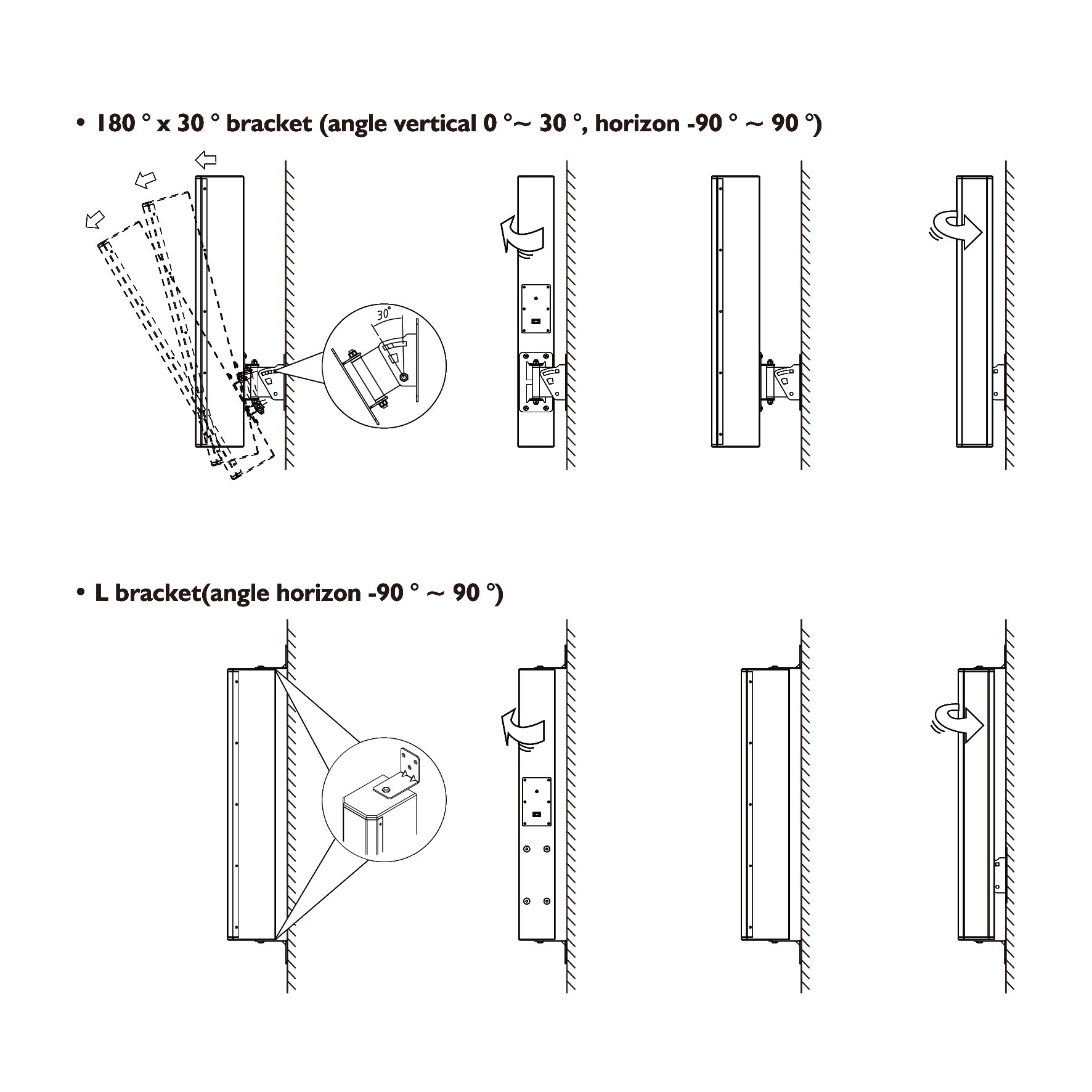

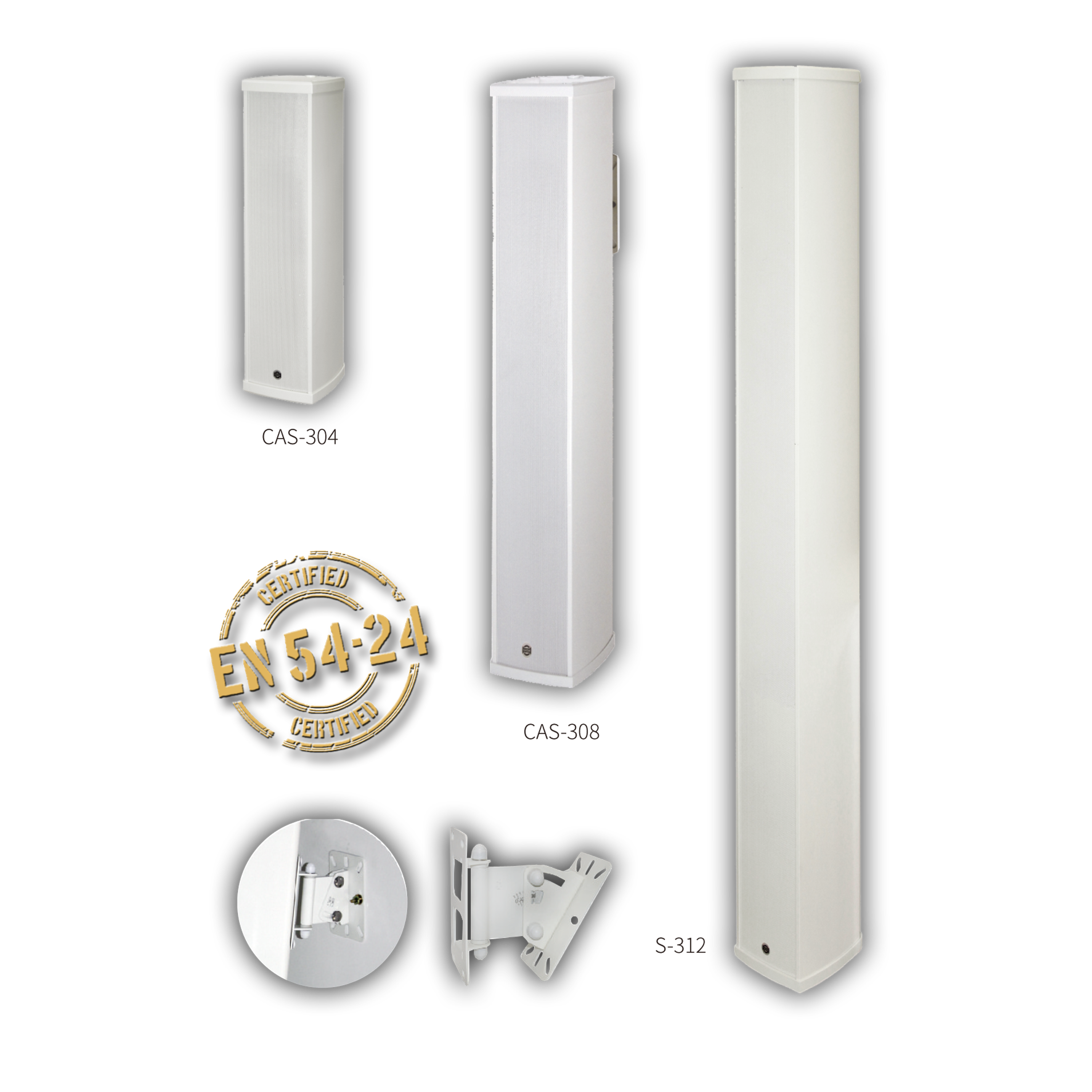

CAS- 304/308 /312 is a professional linear column speaker developed by SHOW. The front of the speaker has a 1.0 mm mesh and a 1.0 mm thick aluminum mesh. It can effectively prevent dust from entering the speaker, and the aluminum mesh can well protect the speaker unit from being directly damaged by external forces. The back of the aluminum mesh is covered with white mesh to effectively prevent dust from entering. The box body, upper and lower covers and aluminum mesh are all made of aluminum, which effectively prevents aging and rusting due to long-term use. The surface of the box is sprayed with RAL9016 white UV-resistant powder paint. 3” full-range speaker unit has a straight paper body and PU edge cone. The speaker vibration system is lightweight and highly sensitive. The sound system uses a power transformer to switch the system power, which can effectively protect the speaker. It prevents high-power input signals from damaging the speaker, and multiple speakers can be used in parallel without causing low impedance and damaging the PA amplifier. There are two bracket options for more flexible installation.



規格

Column Array Speaker

70 V/100 V

CAS-304B/CAS-304W
5 W/10 W/20 W/40 W
CAS-308B/CAS-308W
7.5 W/15 W/30 W/60 W
CAS-312B/CAS-312W
15 W/30 W/60 W/120 W

CAS-304B/CAS-304W
70 V 1000 Ω/500 Ω/250 Ω/125 Ω
100 V 2000 Ω/1000 Ω/5000 Ω/250 Ω
CAS-308B/CAS-308W
70 V 667 Ω/333 Ω/ 1670/83 Ω
100 V 1333 Ω/667 Ω/333 Ω/167 Ω
CAS-312B/CAS-312W
70 V 330 Ω/167 Ω/83 Ω/41 Ω
100 V 667 Ω/333 Ω/167 Ω/83 Ω

CAS-304B/CAS-304W
93 dB
CAS-308B/CAS-308W
95 dB
CAS-312B/CAS-312W
99 dB

CAS-304B/CAS-304W
114 dB
CAS-308B/CAS-308W
116 dB
CAS-312B/CAS-312W
125 dB

CAS-304B/CAS-304W
150 Hz-18 kHz
CAS-308B/CAS-308W
150 Hz-18 kHz
CAS-312B/CAS-312W
120 Hz-18 kHz

4個3吋全頻喇叭,20毫米音圈
8個3吋全頻喇叭,20毫米音圈
12個3吋全頻喇叭,20毫米音圈

CAS-304B/CAS-304W
120° × 10° @ 4 kHz
CAS-308B/CAS-308W
120° × 20° @ 4 kHz
CAS-312B/CAS-312W
120° × 30° @ 4 kHz

Cable conductor

Body in extruded aluminum, resistant paint, 1.0 mm aluminum grille

CAS-304B/CAS-304W
6 × M8 Points For Mounting
CAS-308B/CAS-308W
6 × M8 Points For Mounting
CAS-312B/CAS-312W
12 × M8 Points For Mounting

CAS-304B/CAS-304W
448 mm (17.6") x121 mm (4.8") x140 mm (5.5")
CAS-308B/CAS-308W
763 mm (30") x121 mm (4.8") x140 mm (5.5")
CAS-312B/CAS-312W
1112 mm (43.7") x121 mm (4.8") x140 mm (5.5")

CAS-304B/CAS-304W
5.2 kg/11.46 lbs
CAS-308B/CAS-308W
8.6 kg/18.9 lbs
CAS-312B/CAS-312W
13.3 kg/29.3 Ibs
