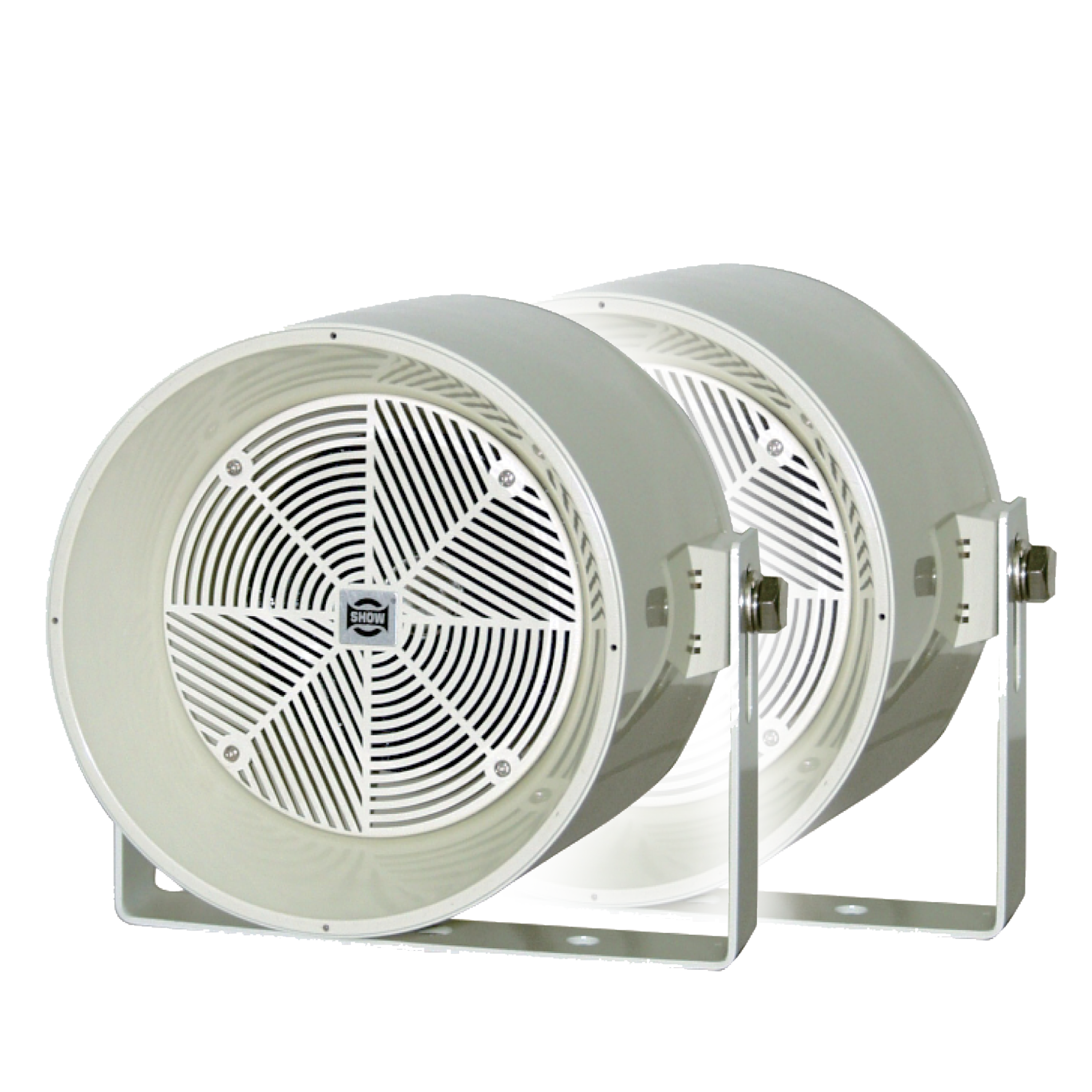

CS-30R

  • The speaker body in shock-resistant ABS plastic
  • One wide range high efficient Φ12 cm paper cone speaker
  • Includes line transformer for constant voltage systems
  • It is possible to select the output power from 3 different values
  • CS-30A/30R with 50 V, 70 V, 100 V line input.
CS-30R

This series of speakers is a plastic fireproof material common broadcasting speaker product that can be used indoors and outdoors. It contains a 5" 20 W 8 Ω full-frequency external magnetic speaker with clear sound quality, high efficiency, and wide sound range. It has passed the waterproof IP66 level certification and is widely used in public places such as hotels, restaurants, airports, office buildings, churches, etc. For this reason, PA speaker products can be used as part of the voice alarm system to provide alarms to people in or near buildings where fire emergencies occur, and enable these people to take pre-determined measures to evacuate the plan.
1. The CS-30A plastic speaker is square.
2. The CS-30R plastic speaker is round.



規格

CS-30A/CS-30R

12 cm Dynamic cone speaker

30 W (50 V/70 V/100 V Line)

83 Ω (50 V Line only)
165 Ω (50 V/70 V Line only)
1.3 kΩ 330 Ω 670 Ω

330 Ω

125-15, 000 Hz

101 dB (1 W/M)

A: 3.7 kg
R: 2.12 kg
